Technical characteristics

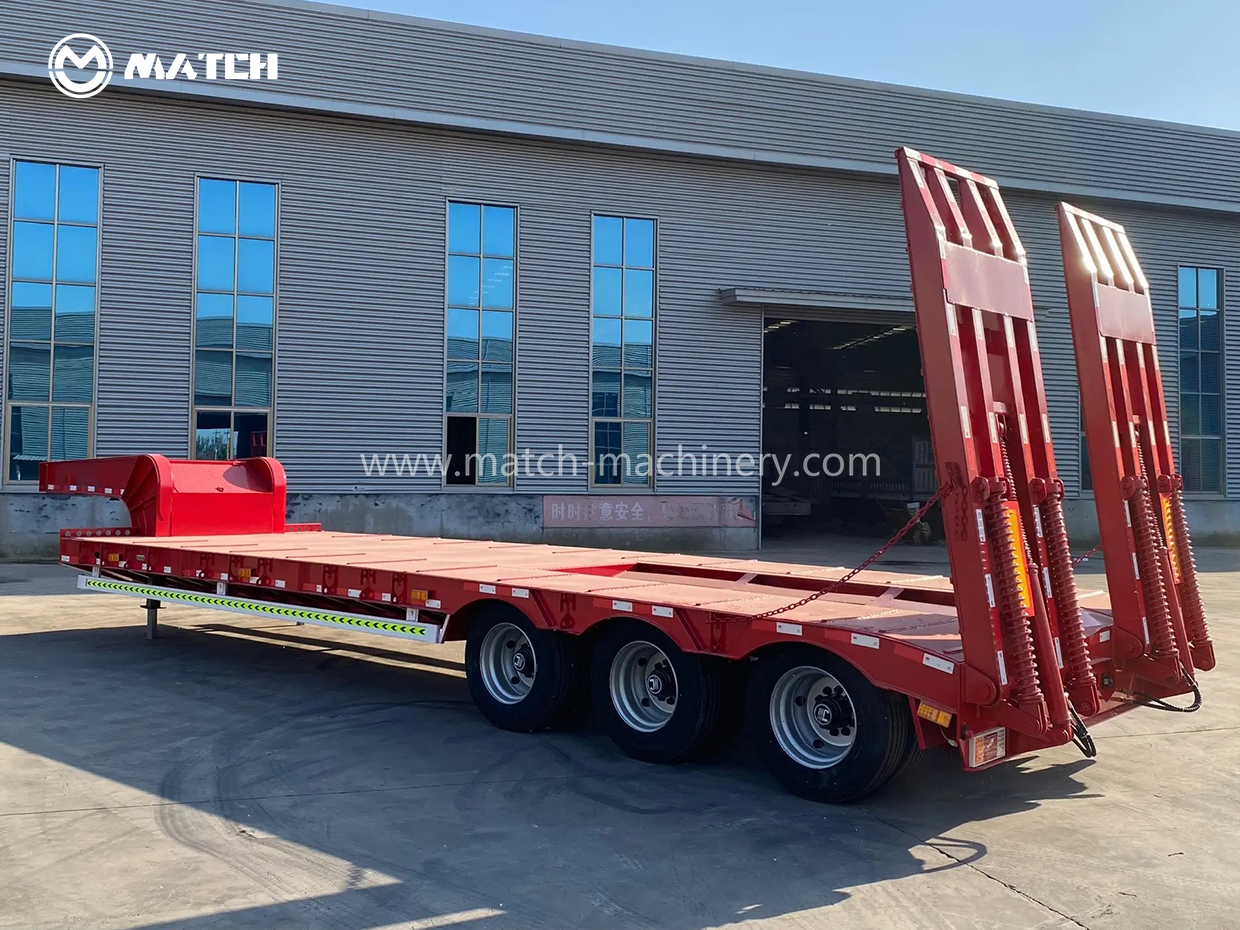

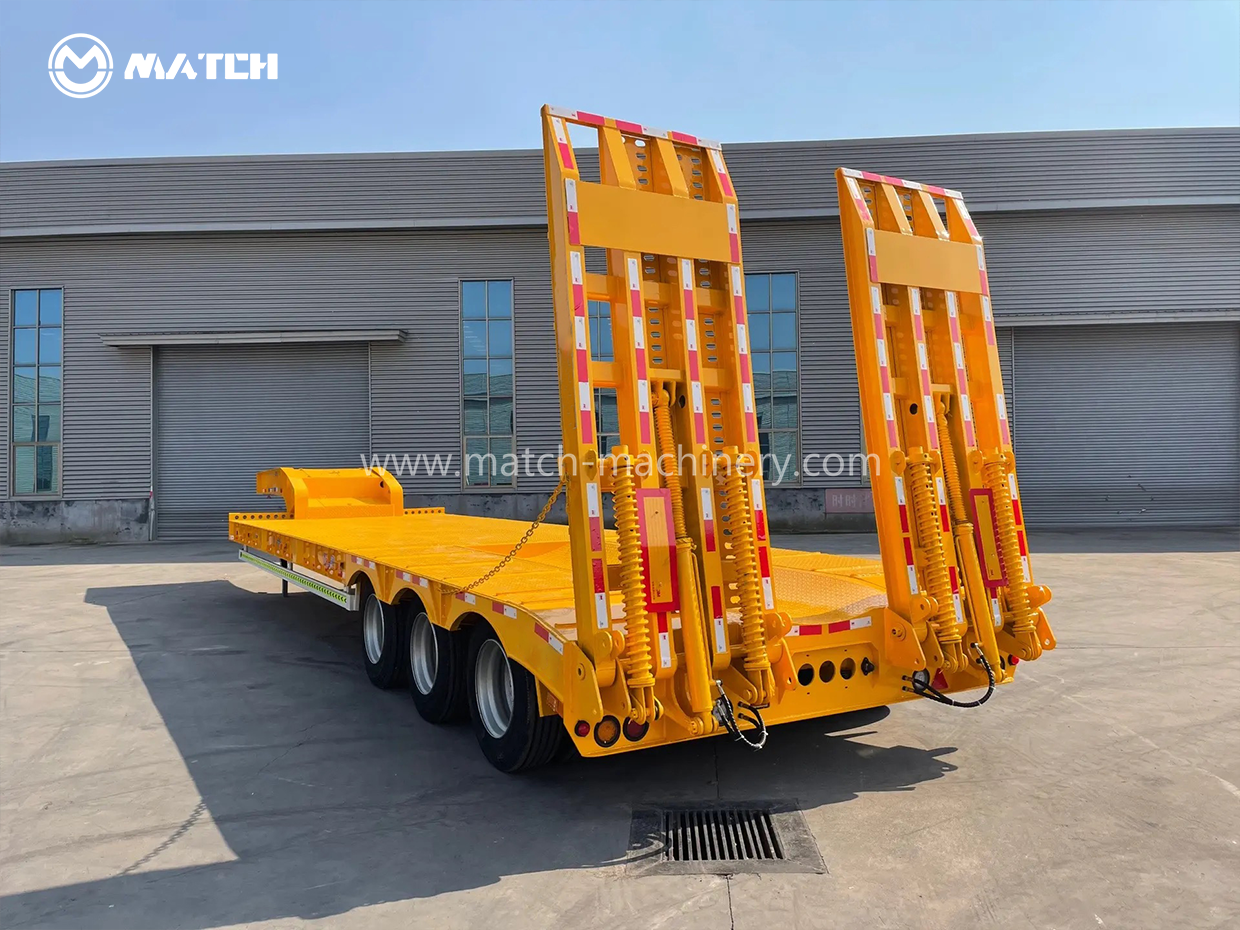

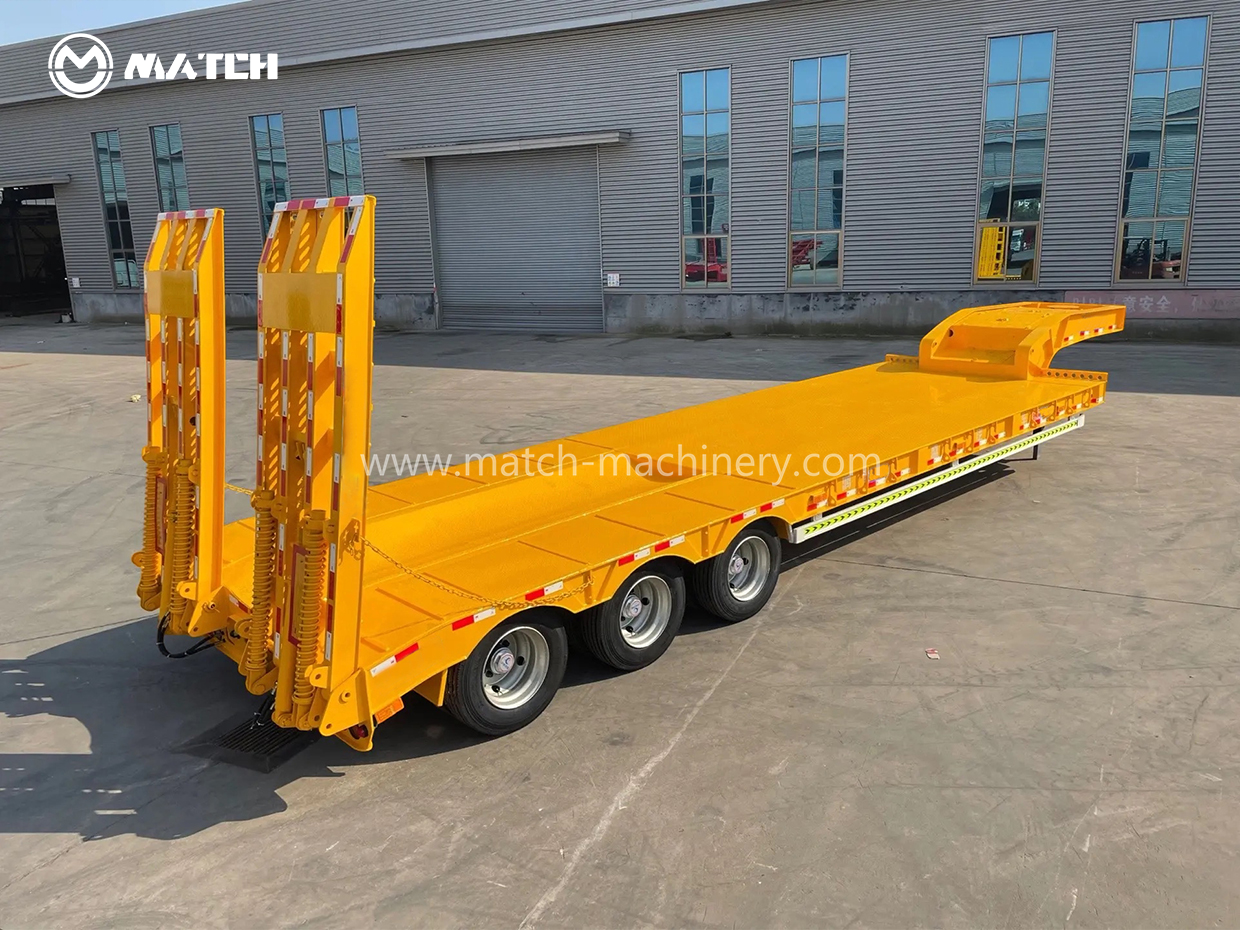

The low flatbed semi-trailer with Ramps is a special heavy-duty transport vehicle optimized for loading and unloading self-propelled construction machinery. It retains the ultra-low cargo platform design of conventional low-bed semi-trailers, and is equipped with a reinforced climbing ladder structure at the rear of the vehicle. This design allows engineering equipment such as excavators, road rollers and loaders to drive onto the cargo platform independently without the assistance of additional lifting equipment, making it widely used in infrastructure construction, large equipment transfer and other scenarios.

Features

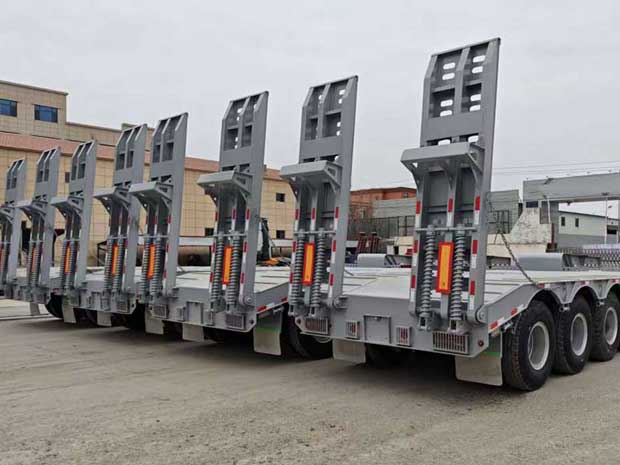

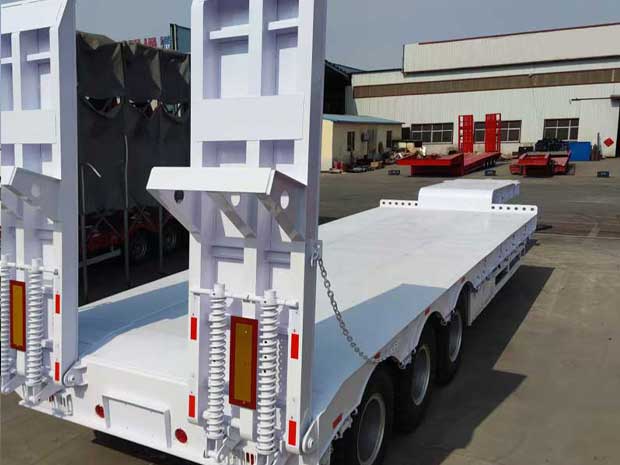

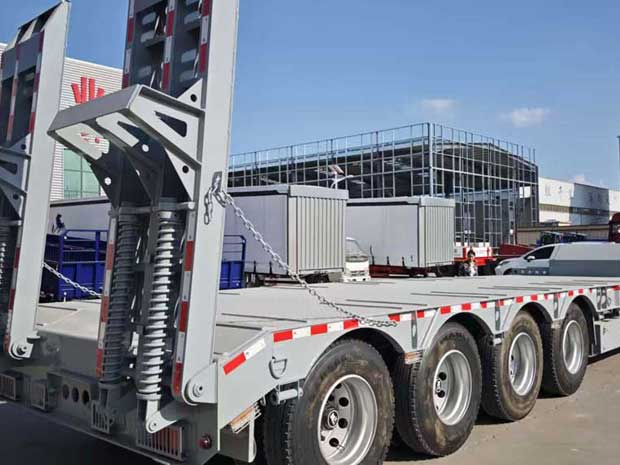

1. Integrated Ladder Design‌
The rear-mounted reinforced climbing ladder can be made of high-strength steel or configured with a hydraulic lifting structure. It has strong bearing capacity, effectively reduces the gradient of the climbing section, and ensures that heavy engineering machinery can safely drive onto the vehicle.

2. Ultra-low Center of Gravity Structure‌
It adopts a concave-beam frame with an I-shaped longitudinal beam. The main plane of the cargo platform is extremely low, which greatly reduces the overall center of gravity of the vehicle, effectively avoids the risk of over-height during transportation, and significantly improves the stability of driving with heavy loads.

3. High Load-bearing Performance‌
The whole frame is formed by advanced welding process and shot peening treatment, with high rigidity and strength. The load capacity can cover 20-100 tons, which can meet the transportation needs of various large construction machinery and heavy equipment.

4. Stable Force Transmission System‌
It is equipped with a multi-axle balanced suspension structure. The mass balance block installed between the front and rear leaf springs can make the stress of each axle uniform, effectively reduce the wear of tires and suspension parts, and adapt to long-distance heavy-load transportation conditions.

Performance Parameter

Dimension	1375030003750mm 13/13.75/14/15/17.5M
（T）Tare weight	9.0-16T
(T) Capacity	50-120T
（mm）Main beam	500mm height，upper plate 14mm，middle plate 12mm,down plate16mm
Bottom plate	4mm Diamond plate
Side beam	260-300mm height，upper plate 8mm，middle plate 6mm，down plate8mm
Axle	13T Fuwa axles
Tires	8.25R20/12R20/12R22.5/295R22.5/315R22.5 12pcs
Rims	8.5-20/9.0-20/8.25-22.5/9.0-22.5 12pcs
Suspension	3axles mechanical suspension system
Leaf spring	901310 6units
	T30 30 6pcs, relay valve ,2pcs air tanker.
air brake chamber	T30 30 6pcs, relay valve ,2pcs air tanker.
King pin	JOST50/90mm bolt-type
landing gear	28T landing gear
rear ladder	Manual ladder 2700-3000mm,900mm
front gooseneck	Same width without side door. 3200/3300mm
