Weight : 2900KG
Bore diameter: 90—130mm
Bore depth: 30m
Product Description:

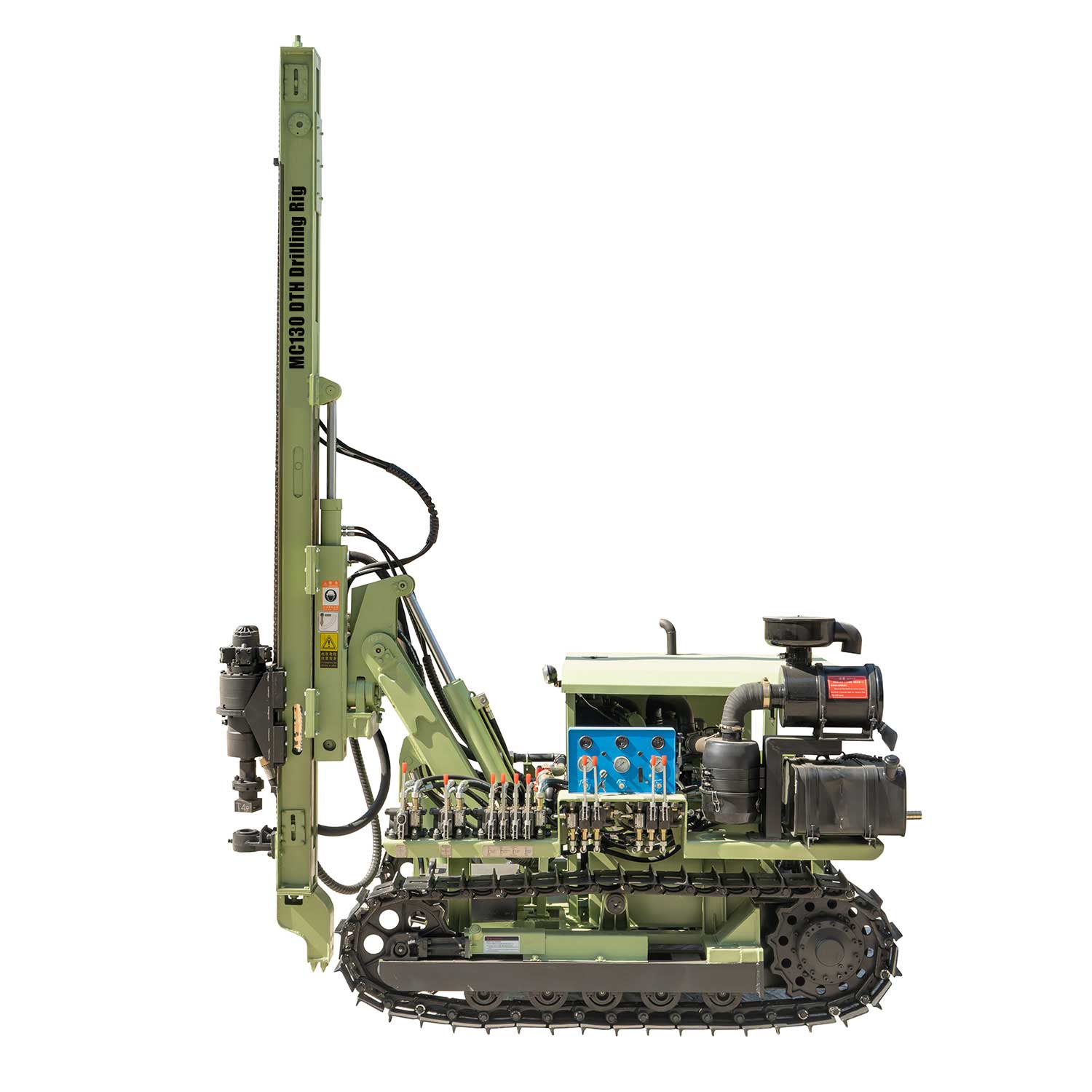

MC130 crawler hydraulic drilling rig, adopt new hydraulic rotary motor, increase the rotation gearbox with high speed, large ttorque, and low failure rate. Low air consumption of the rig, the shift hole becomes convenient,use air filter and oil filter, reduce engine wear, thereby increasing the life of the diesel engine. The rig structure is compact, the minimum radius of gyration is 2.8m, while advancing the skid compensation function .when drilling, the skid support on the ground, and have good drilling stability.

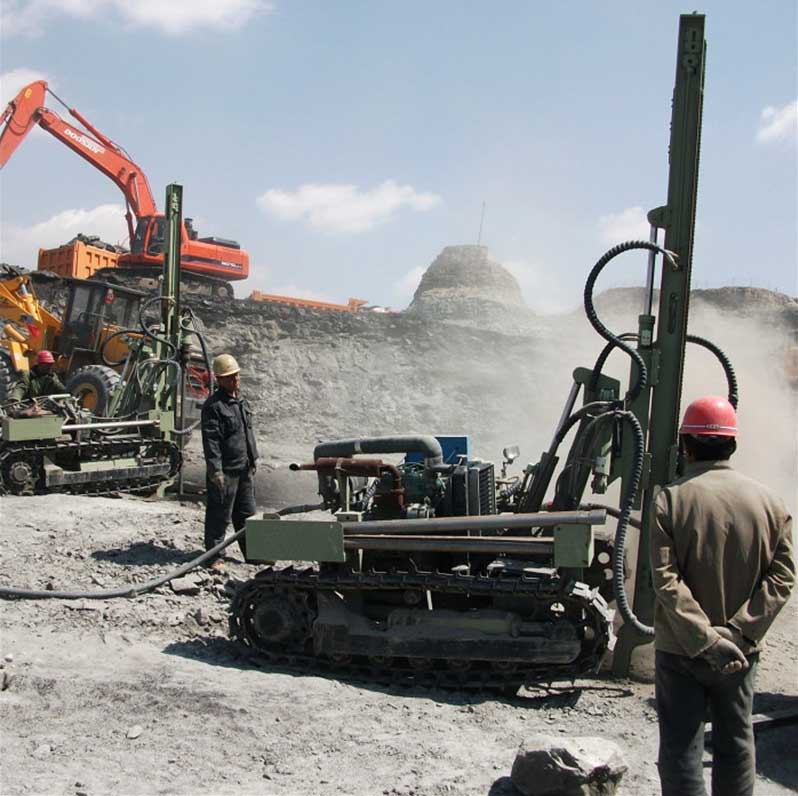

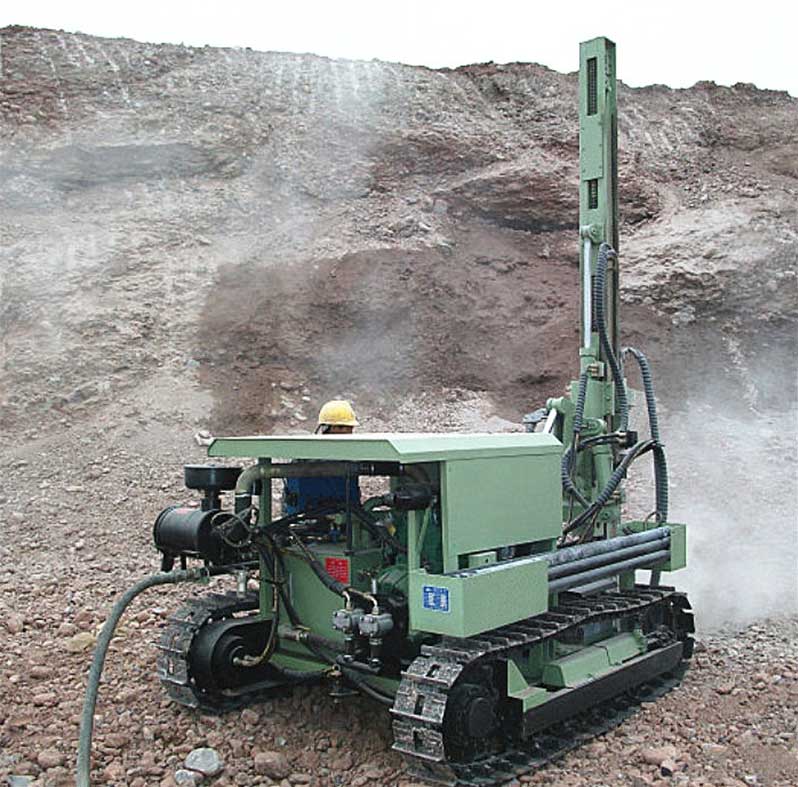

The drilling rig is mainly suitable for open mining, water conservancy, power plants, road building and other rock blasting holes drilling .
Features
| Bore diameter(mm) | 90—130 |
| Bore depth(m) | 30 |
| Walk speed(km/h) | 2 |
| Once promotion(mm) | 2000 |
| Grade ability (° ) | 30 |
| Air pressure(Mpa) | 0.7—1.4 |
| Chassis ground clearance(mm) | 260 |
| Air consumption(m³/min) | 7—15 |
| Skid pitch(° ) | 100 |
| Host Power (Kw) | 33 |
| Sliding tilt swing (° ) | 35、10 |
| For rock(F) | 6—20 |
| Skid compensation(mm) | 900 |
| Dimension（L*W*H)(mm) | 4300*2130*2160 |
| weight(Kg) | 2900 |
