operating weight : 5800kg
Bucket capacity : 0.23m³
Hydraulic tank capacity : 75L
Bucket capacity: 0.23m³

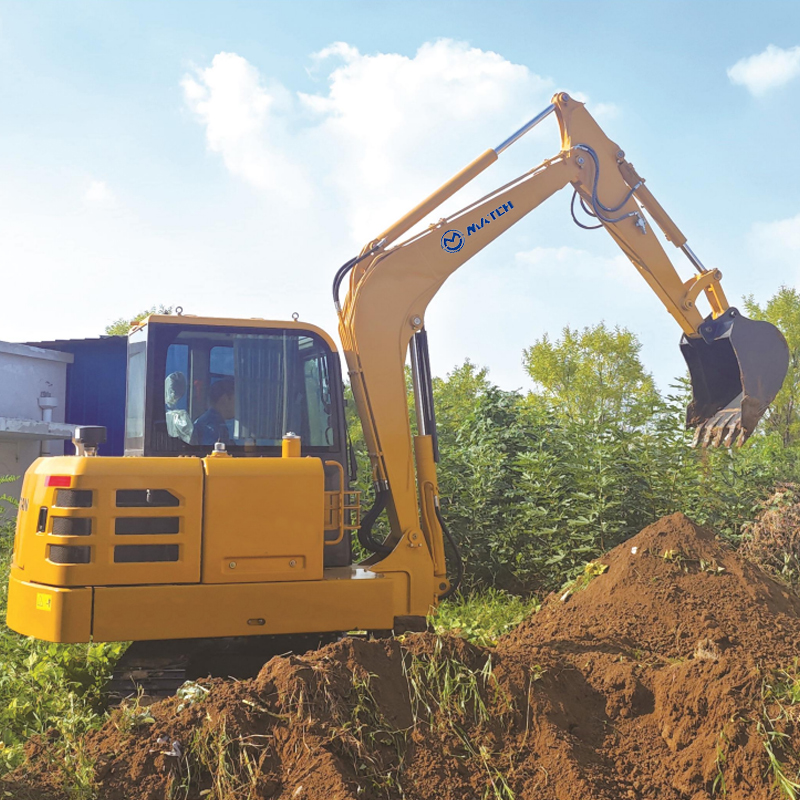

The MC60-9 is a high-performance compact excavator designed for versatility and efficiency in demanding construction and excavation projects. With its ergonomic design, advanced hydraulic system, and robust build, the MC60-9 delivers exceptional power, precision, and reliability in confined spaces or large-scale operations. Ideal for urban construction, landscaping, and utility work, this excavator balances productivity and operator comfort.
Powerful Performance
Compact & Maneuverable Design
Operator Comfort & Safety
Climate control and noise reduction features enhance productivity during long shifts.
Model | unit | parameter |
operating weight | Kg | 5800 |
Bucket capacity | m3 | 0.23 |
Engine | 4TNV94L | |
Ratedpower/speed(is0) | kw/rpm | 36.2/2100 |
Maximum torque/speed | N.m | 193.2-210.6 |
Travelspeed(H/L) | km/h | 3.8/2.2 |
swingspeed | r/min | 10.5 |
Gradeability | >35 | |
Ground pressure | kPa | 35 |
Bucket digging force | kN | 48 |
Arm digging force | kN | 29 |
Maximum tractive force | kN | 56 |
Ratedfowofmain pump | ( L/min ) | 159 |
Main safety valve pressure | (MPa) | 25 |
Travel system pressure | (MPa) | 25 |
Swing system pressure | (MPa) | 21.6 |
Fuel tank | (L) | 115 |
Hydraulic tank capacity | (L) | 75 |
Hydraulic tank capacity | (L) | 12 |
Length of boom | mm | 3000 |
Length of arm | mm | 1600 |
Bucket capacity | m³ | 0.23 |
133KW 2000rmp
1.03 m³
212KW 2000rmp
1.8 m³
250KW 2000rmp
2.0 - 2.5 m³
280KW 2000rmp
2.5 - 2.8 m³
