Cargo container capacity: 20 cubic meters
Load capacity: 30 tons
Tire specifications: 12 R22.5

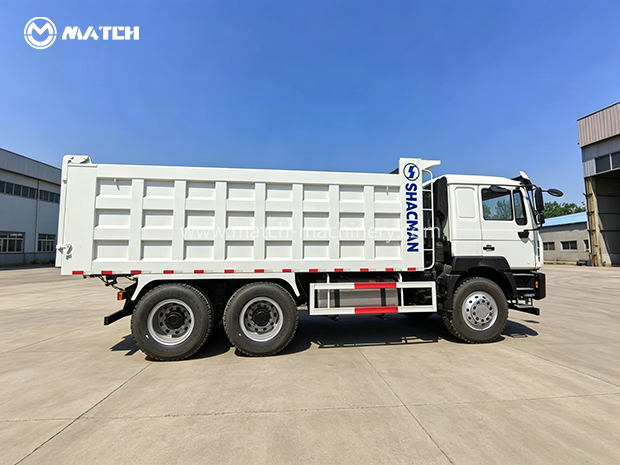

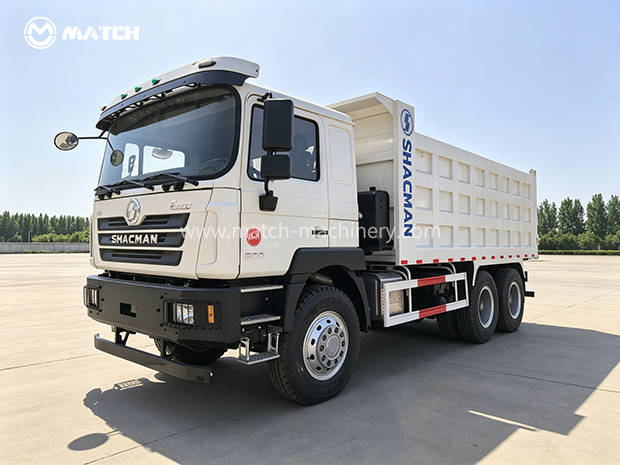

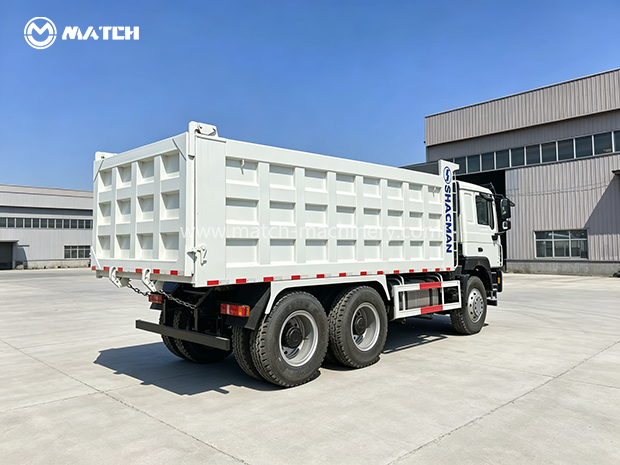

Shaanxi Automobile F3000 Dump Truck is a powerful and reliable heavy-duty vehicle designed for demanding applications in mining, construction, infrastructure projects, and material transportation.
Equipped with a strong powertrain, durable chassis, and excellent load-carrying capacity, the F3000 delivers outstanding performance even in harsh working environments. It is built to handle heavy-duty operations with high efficiency, low maintenance costs, and long service life.
With advanced engineering, comfortable driving experience, and strong adaptability to different road conditions, the F3000 dump truck is an ideal choice for mining companies, construction contractors, and transportation businesses worldwide.
|
engine |
Weichai WP10. 430 E 31 |
|
horsepower |
380 / 430 |
|
Gearbox |
FAST1 0 JSD200TA, manual operation |
|
Rear axle ratio |
5.73 Adapting to different transportation needs |
|
Driver's cab |
Provides spacious space |
|
Passenger capacity |
3 people
|
|
Driver's seat |
Air-suspension seats provide a comfortable driving experience. |
|
Sleeper berth |
The lower berth is up to 900mm wide, providing a comfortable resting environment.
|
|
Large box dimensions |
Length 5.8m, Width 2.55m, Height 1.5m |
|
Cargo container capacity |
20 cubic meters |
|
Load capacity |
30 tons |
|
Internal configuration |
Automatic air conditioning, steering wheel, power windows, rearview mirrors, chassis configuration
|
|
Frame |
Constructed with high-strength national standard steel plates, the crossbeams adopt a large-span connecting plate plus local reinforcement structure. |
|
Front axle |
Permissible load 9,000 kg |
|
Rear axle |
Permissible load : 32,000 kg |
|
Suspension method |
Leaf spring, with 10/12 leaf springs
|
|
Tire specifications |
12 R22.5
|
|
Fuel tank capacity |
300L , made of aluminum alloy
|
|
Lighting configuration |
Halogen headlights, LED taillights, daytime running lights, front fog lights |
