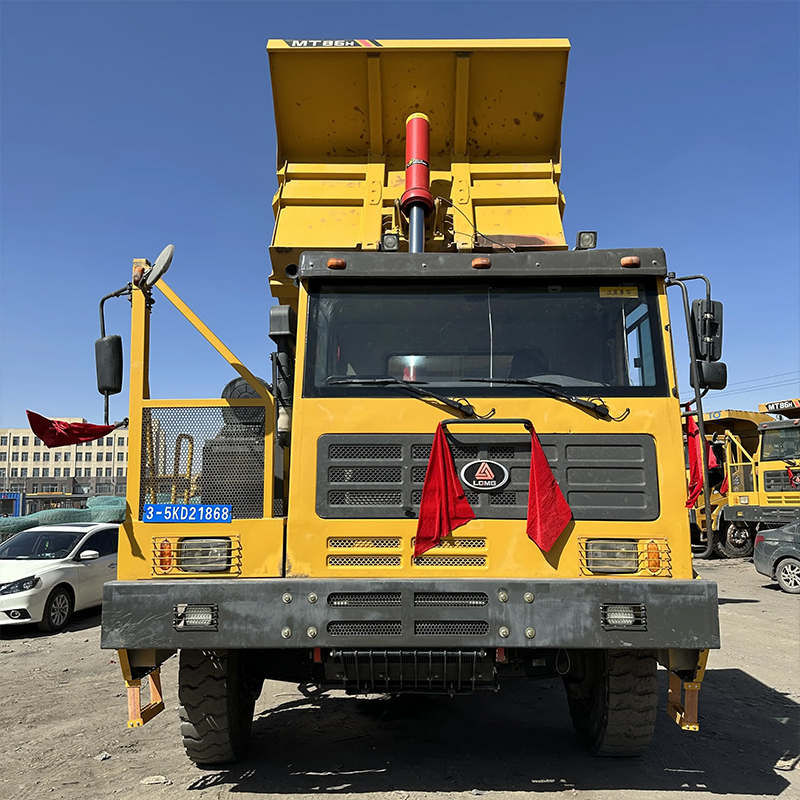

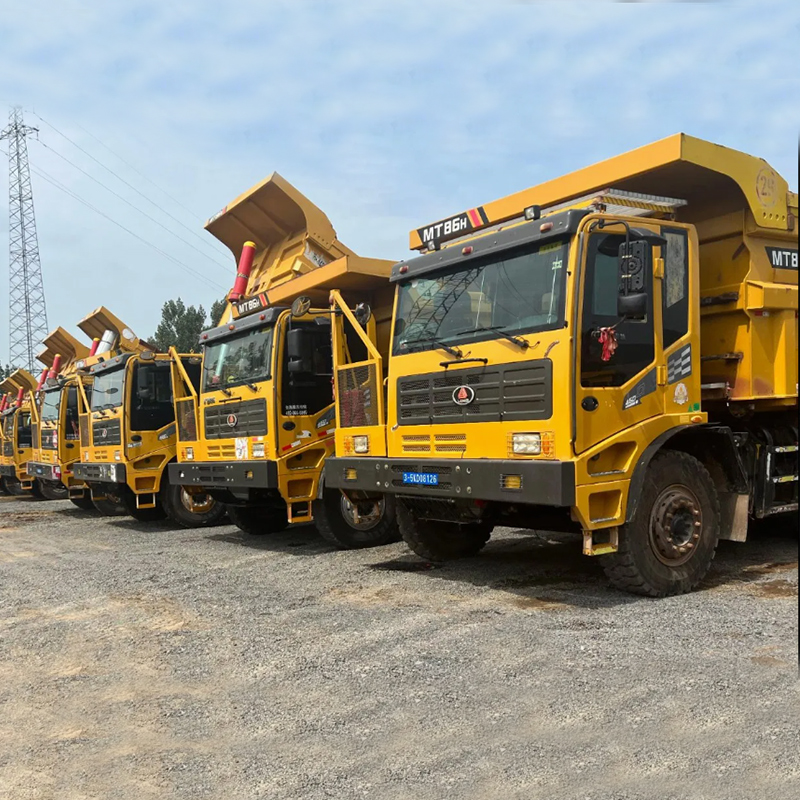

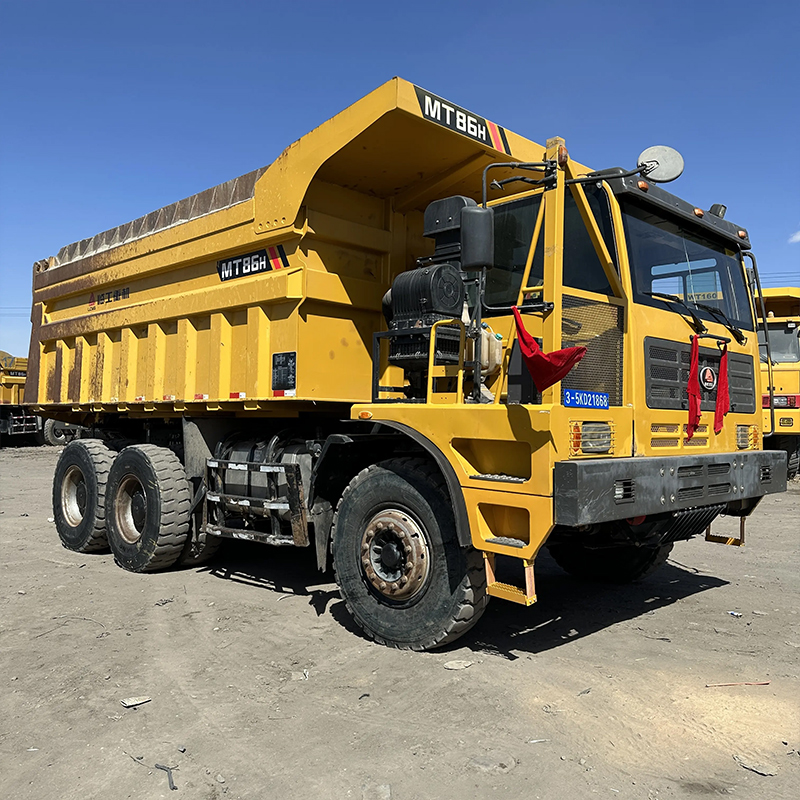

Used MT86H Mining Dump Truck

Curb Weight: 31700±100(kg)

Payload: 55(t)

Engine: WD12G420E211

Get a quote for free Product manual download

Technical characteristicsPerformance ParameterRelated ProductsContact Us

Technical characteristics
The Mt86h Mining Tipper Truck is a refurbished heavy-duty dump truck designed for mining and large-scale earthmoving operations. Renowned for its high load capacity, durability, and adaptability to harsh environments, it offers a cost-effective solution for bulk material transport.

Production Years

Manufacturing Period‌: 2016 – 2021

Availability‌: Refurbished units in stock; customizable upon request.

Features

  • 50-70 metric ton payload capacity with reinforced chassis and impact-resistant dump body.
  • Powered by a 12L turbocharged diesel engine (450-500 HP) and heavy-duty automatic transmission.
  • 4WD, wide-base tires, and high ground clearance for extreme terrains and weather.
  • ROPS/FOPS certified cabin, centralized lubrication system, and modular components.

Applications

Applications: Open-pit mining, coal/ore haulage, quarry operations, dam construction, and heavy construction projects.

Performance Parameter
Model MT86H
Curb Weight 31700±100(kg)
Payload 55(t)
Engine  WD12G420E211
Gearbox  7DS200
Axle Load 20T+35T+35T
Tyre 14.00R25
Max. Speed 44(km/h)
Rock Dump Body Volume-heaped 31(m³)
Tailgate Type Dump Body Volume-heaped 32(m³)
Overall Dimension(LxWxH) 9070×3550×4050(mm)
