RATED POWER: 162kW
OPERATING WEIGHT: 16,800kg
ENGINE: Cummins3
BUCKET CAPACITY: 3.0 m³
Key Specifications & Highlights
Low Working Hours:
Operates with 1,200–6,500 certified working hours (equivalent to 50-60% remaining lifespan), ensuring extended productivity with minimal downtime.
Hydraulic systems and engine performance tested under heavy-load conditions for reliability.
Production Date:
Manufactured in 2013-2022, featuring modern engineering standards and compliance with Tier 4 emission
Optimizing the shape of the bucket makes it easy to pick up material, achieving higher fill factors and less spillage.
A/C with big cooling capacity, adding air from back and bottom of machine for all-round effect.
Optimized preheating system and hyperboloid efficient fan, adaptable from -30 ℃ ~ 45 ℃ ambient temperature.
Optional multiple attachments, including: multiple.
|

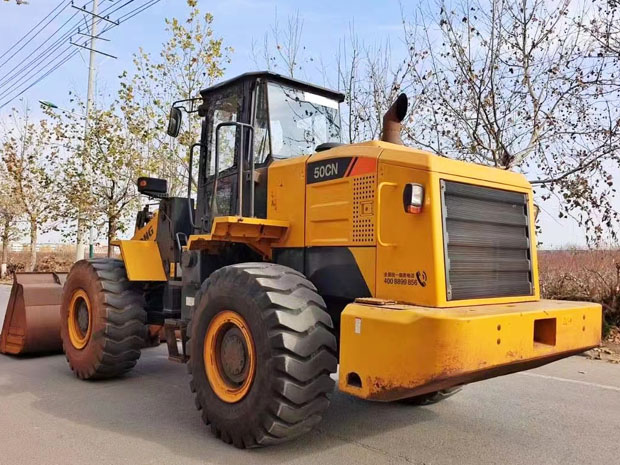

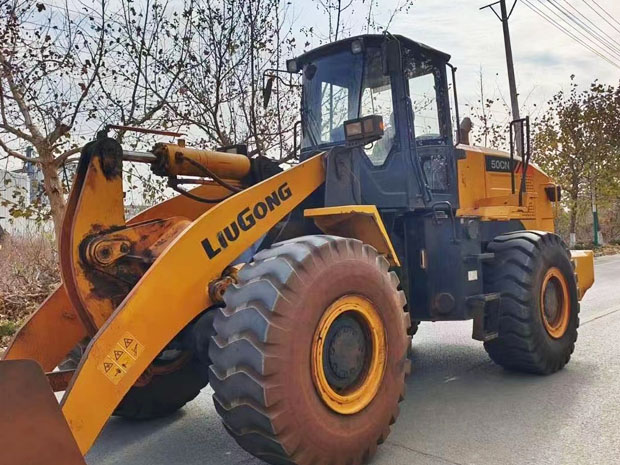

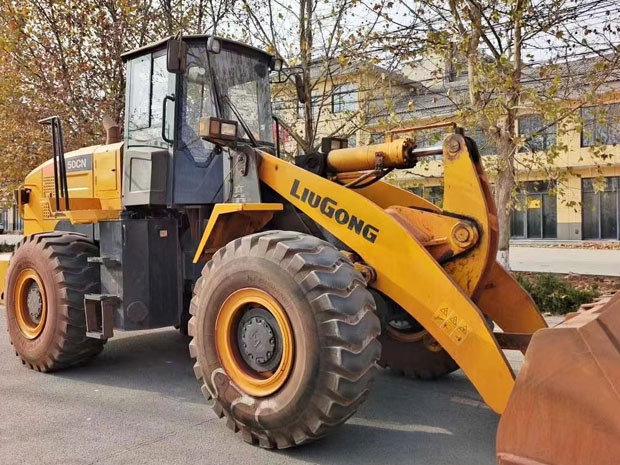

ZL50CN Wheel Loader |
|
|
Model |
ZL50CN |
|
Operating Weight |
16,800 kg |
|
Bucket Capacity |
3.0 m³ |
|
Gross Power |
162 kW (217 hp / 220 ps) @ 2,000 rpm |
|
Net Power |
149 kW (220 hp / 202 ps) @ 2,200 rpm |
|
Max Breakout Force |
200 kN |
|
Rated Load |
5,000 kg |
|
Standard Dump Clearance |
2,854 mm |
|
Performance |
|
|
Tipping Load - Straight |
19,300 kg |
|
Tipping Load-full Turn |
11,000 kg |
|
Bucket Breakout Force |
168 kN |
|
Dump Clearance, Full Height Discharge |
3,037 mm |
|
Dump Reach, Full Height Discharge |
1,169 mm |
|
Engine |
|
|
Model |
Cummins 6LT9.3 |
|
Emissions |
Tier 2 / Stage II |
|
Displacement |
9.3 L |
|
Dimensions |
|
|
Length with Bucket Down |
8,106 mm |
|
Width over Tires |
2,750 mm |
|
Cab Height |
3,500 mm |
