Operating Mass : 10000kg
Maximum Speed : 12km/h
Diesel Engine Power : 110kw

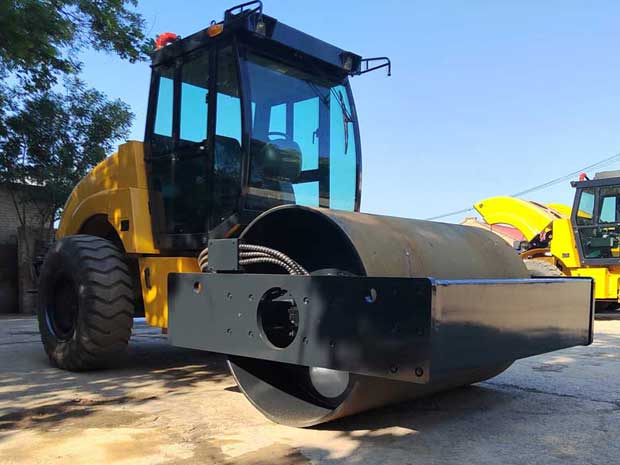

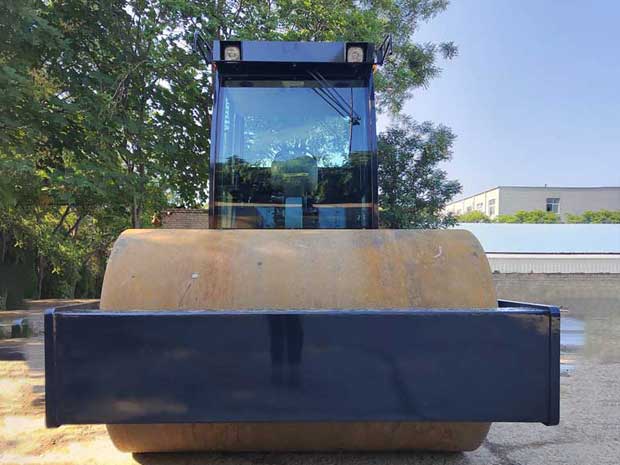

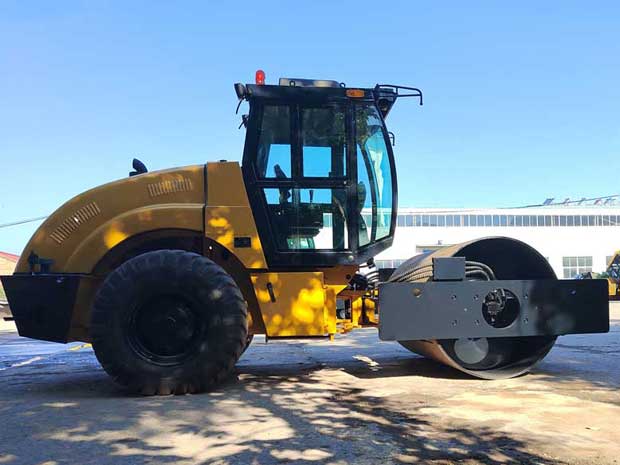

Hydraulic double wheel drive vibratory roller is manufactured according to the international advanced technology and by use of imported components from abroad. The machine is super heavy-dutyvibratory roller, possesses a great working mass and strong centrifugal force. It is the best compaction equipment of high quality and high effect in the large-scale mechanized construction. this machine is suitable for non-cohesive materials, such as graves, macadam, macadam-aggregate mixtures and sandy soil etc. Also it can be a good effect compaction in cohesive material, There fore the machine an ideal equipment for expressway. mining road, embankment, seaport and industrial sites.
Features
|
MODEL
|
MC620H
|
MC618H
|
MC216H
|
MC214H
|
MC212H
|
MC210H
|
|
|
Operating mass
|
Kg
|
20000
|
18000
|
16000
|
14000
|
12000
|
10000
|
|
Static linearload
|
N/cm
|
600
|
540
|
428
|
373
|
326
|
326
|
|
Vibrating amplitude
|
Mm
|
1.9/0.95
|
1.9/0.95
|
2.0/1.0
|
1.7/0.8
|
1.7/0.8
|
1.7/0.8
|
|
Vibrating frequency
|
Hz
|
28/35
|
28/35
|
28/35
|
28/35
|
28/35
|
28/35
|
|
Centrifugal force
|
KN
|
410/300
|
390/280
|
320/260
|
290/180
|
260/160
|
260/160
|
|
Travel speed
|
Km/h
|
11
|
11
|
12
|
12
|
12
|
12
|
|
Grade ability
|
%
|
35
|
35
|
35
|
35
|
35
|
35
|
|
Turning radius
|
mm
|
7500
|
7500
|
7000
|
7000
|
7000
|
7000
|
|
Overall dimension
|
mm
|
6665×2300×3090
|
6665×2280×3090
|
6025×2280×3050
|
5900×2280×3050
|
5650×2280×3000
|
5650×2280×3000
|
|
Vibration round width
|
mm
|
2100
|
2100
|
2100
|
2100
|
2100
|
2100
|
|
Wheelbase
|
mm
|
3380
|
3380
|
3265
|
3185
|
3060
|
3060
|
|
Ground clearance
|
mm
|
472
|
472
|
432
|
432
|
360
|
360
|
|
Diesel power
|
kW
|
132
|
132
|
110
|
110
|
110
|
110
|
|
Dieselmodel
|
CUMMINS QSB5.9
|
CUMMINS QSB5.9
|
CUMMINS 6BT5.9
|
CUMMINS 6BT5.9
|
CUMMINS 6BT5.9
|
CUMMINS 6BT5.9
|
