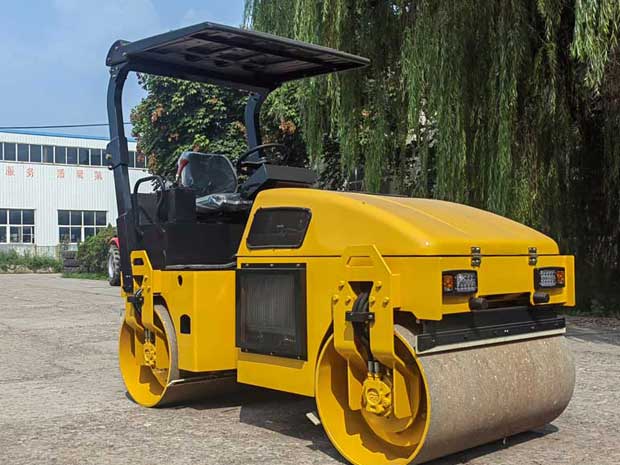

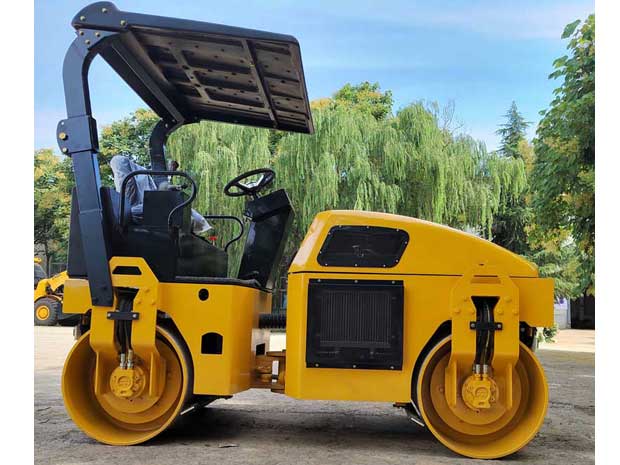

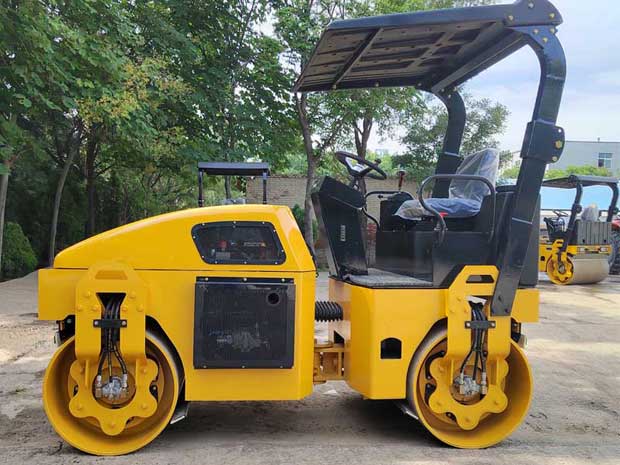

MC204 Road Roller-Tianjin Match Machinery Co.,Ltd.

Technical characteristics

MC204 series vibratory roller,applicable for the maintenance of the municipal road as well as suitable for the compaction of the narrow road surfaces such as groove foundation ,building construction ,pipeline backfill and stadium.

Features

1. Both front drum and rear tires are hydraulically driven, front drum has vibration force, hydraulic steering ,with reliable performance and good cost-effectiveness.

2. Both front and rear drums have scraping and water spray unit,advanced sprinkler pump system can achieve intermittent ,greatly expanded mechanical proper working condition.

3. Adopt ZN390B diesel engine,Energy conservation and environmental ,very convenient for use and maintenance.

4. Compact integral structure,small volume , capable of used for compaction on narrow site, has a good cost-effectiveness with low investment and fast returns.

5. The rear wheels are equipped with a combination of four smooth tires, which combine the dual functions of a steel drum vibratory roller and a static tyre roller, effectively improving the compaction quality of asphalt pavement. This model has smoother walking, stronger climbing ability, and better shock absorption effect.

Performance Parameter

MODEL		MC204
Operating mass	kg	4000
Static linear load(F/R)	N/cm	150/150
Vibratory frequency	mm	0.5/0.5
Centrifugal force	KN	2×30
Vibration frequency	kZ	50
Travel speed	Km/h	0-12
Grade ability	%	25
Steering angle	0	+26
Overall dimension	mm	2900×1400×2520
Drum diameter	mm	700
Drum width	mm	1300
Wheelbase	mm	2010
Diesel engine power	kW	26.5
Diesel engine model		ZN390B
Water tank capacity	L	200
Quantity of rear tire	pcs	4
Specification of rear tire	/	7.50-15
