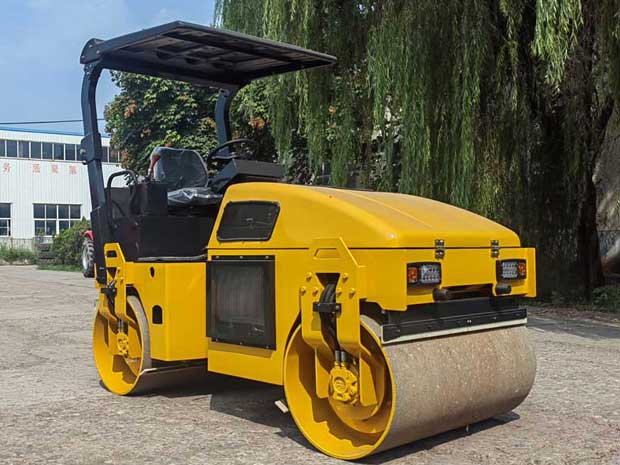

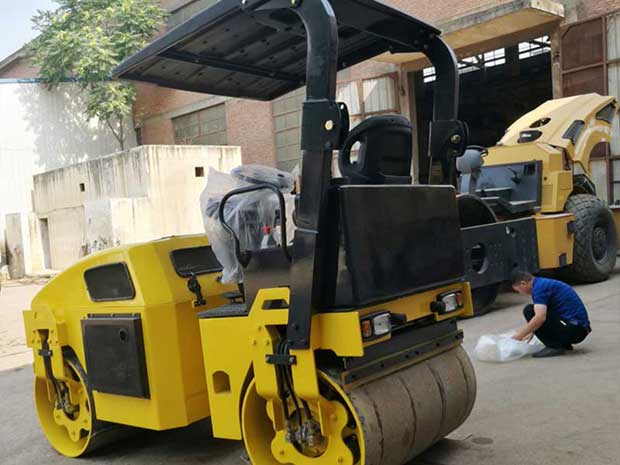

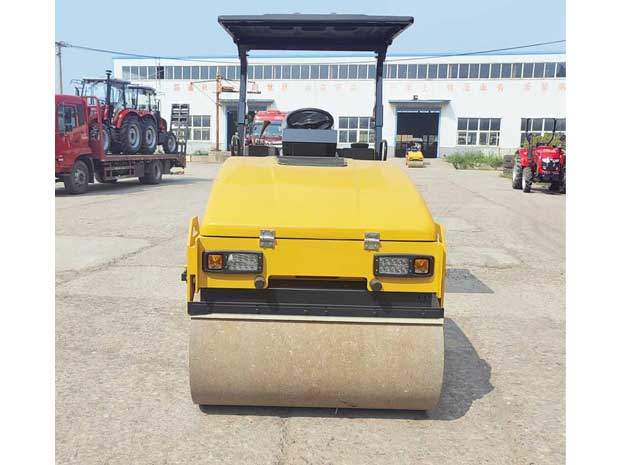

MC203 Road Roller

Operating Mass : 3300kg

Drum Diameter : 700mm

Diesel Engine Power : 26.5kw

Get a quote for free Product manual download

Technical characteristicsPerformance ParameterRelated ProductsContact Us

Technical characteristics

MC203 vibratory roller,applicable for the maintenance of the municipal road as well as suitable for the compaction of the narrow road surfaces such as groove foundation ,building construction ,pipeline backfill and stadium.



Features



1. Both front and rear drum are hydraulically driven, both front and rear drum has vibration force, hydraulic steering ,with reliable performance and good cost-effectiveness.
2. Both front and rear drums have scraping and water spray unit,advanced sprinkler pump system can achieve intermittent ,greatly expanded mechanical proper working condition.
3.Adopt ZN390B diesel engine,Energy conservation and environmental ,very convenient for use and maintenance.
4,Compact integral structure,small volume , capable of used for compaction on narrow site, has a good cost-effectiveness with low investment and fast returns.
Performance Parameter
MODEL
MC203
Operating mass
kg
3300
Static linear load(F/R)
N/cm
136/136
Vibratory frequency
mm
0.5/0.5
Centrifugal force
KN
2×30
Vibration frequency
kZ
50
Travel speed
Km/h
0-12
Grade ability
%
30
Steering angle
0
+26
Overall dimension
mm
2900×1400×2520
Drum diameter
mm
700
Drum width
mm
1250
Wheelbase
mm
2010
Diesel engine power
kW
26.5
Diesel engine model
ZN390B
Water tank capacity
L
200
