RATED POWER: 85KW
OPERATING WEIGHT: 9000kg
MAX. DIGGING DEPTH: 4100mm

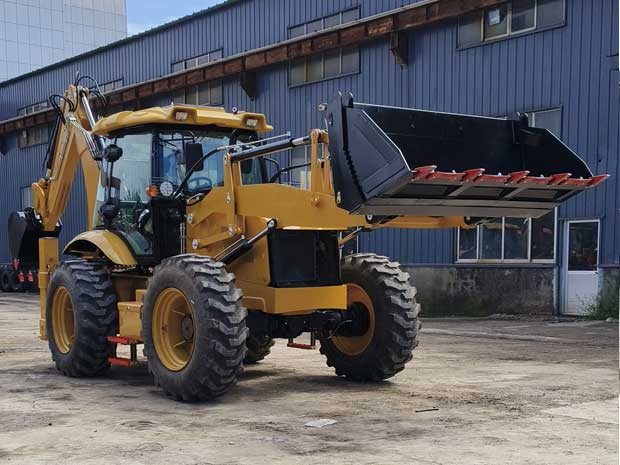

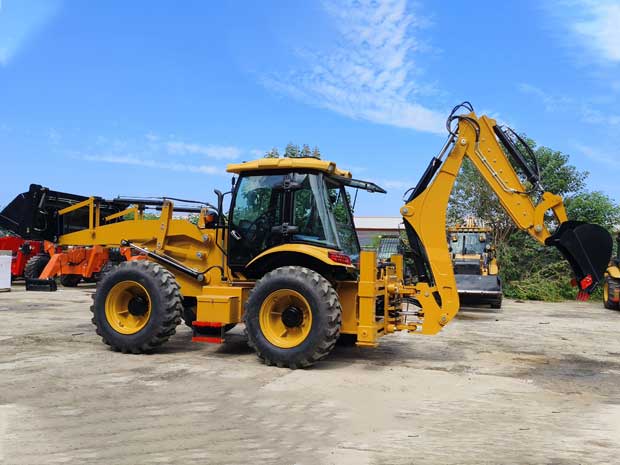

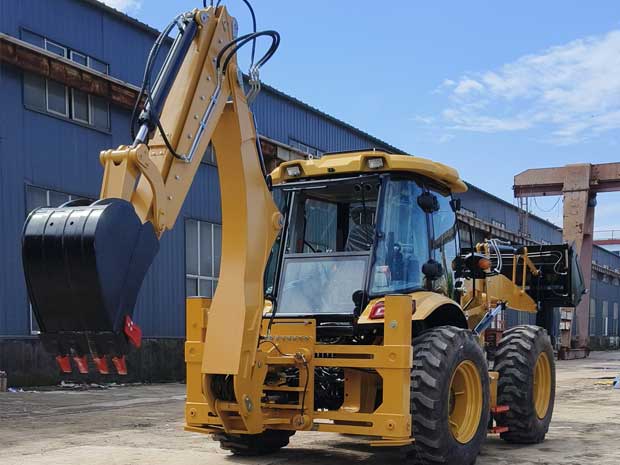

MC4CX Backhoe Loader is a high-performance, multi-purpose construction machine engineered to deliver exceptional efficiency across a wide range of job sites. Designed and manufactured with decades of industry expertise, this model combines robust digging power, reliable loading capacity, and outstanding maneuverability to meet the diverse demands of infrastructure projects, rural construction, municipal maintenance, and small-scale mining operations.
Durable & Low-Maintenance Structure
The main frame and working arms are made of high-strength wear-resistant steel, with reinforced welding points that resist deformation under long-term heavy loads. The key hydraulic components adopt mature and reliable configurations, with standardized maintenance points that make daily inspection and part replacement fast and convenient, greatly extending the service life of the whole machine.
Excellent Site Adaptability
The optimized wheelbase and four-wheel drive system give the MC4CX outstanding passing performance. It can easily navigate muddy construction sites, uneven mountain roads, and narrow rural operation spaces, maintaining stable working efficiency even in complex terrain conditions.
| Overall Dimension | ||||
| Length(with bucket on ground) | 6450mm | |||
| Overall width(at stabilizer ) | 2400mm | |||
| Load Bucket width | 2400mm | |||
| Height(To the top of the cab) | 3120mm | |||
| Height(To the top of the digging pole) | 3940mm | |||
| Wheel base | 2335mm | |||
| Back wheel Tread | 2139mm | |||
| Main Loading Technical Specification | ||||
| Rated load | 2500KG | |||
| Overall weight | 9000kg | |||
| Rated bucket capacity | 1.7m³ | |||
| Max. dump clearance | 3100mm | |||
| Dump reach | 870mm | |||
| Radius of turn(Outside of bucket) | 5750mm | |||
| Main Digging Technical Specification | ||||
| Rated digging bucket capacity | 0.35m³ | |||
| Max. digging depth | 4100mm | |||
| Optional digging depth(telescopic digging boom) | 5100mm | |||
| Max. digging radius | 5345mm | |||
| Max. dumping height | 3740mm | |||
| Max. Digging Height | 5470mm | |||
| Lifting force at Max. digging radius | 1220kg | |||
