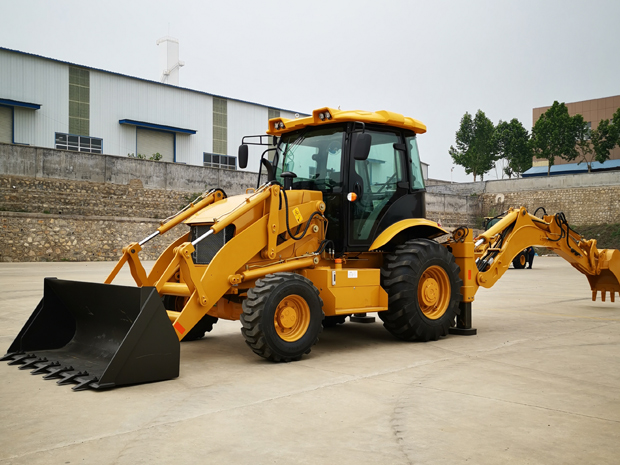

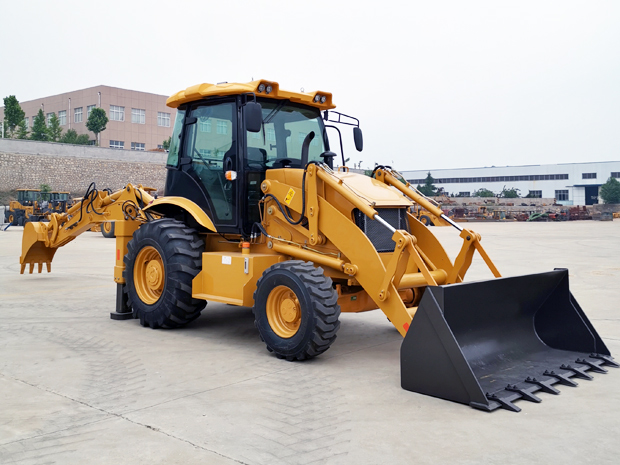

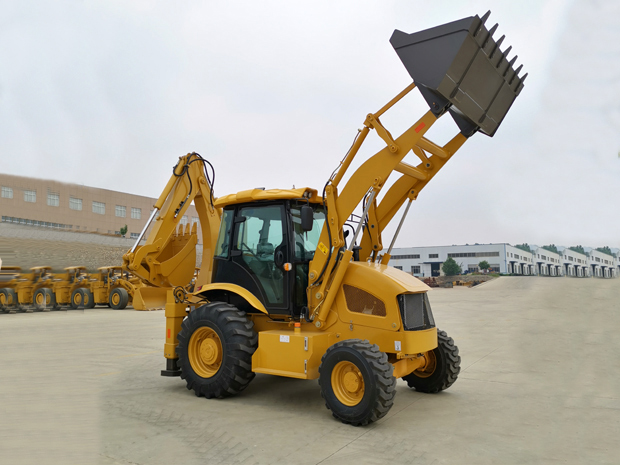

MC886T Backhoe Loader

RATED POWER: 74KW

OPERATING WEIGHT: 8200-9300kg

ENGINE: YUCHAI /CUMMINS

Technical characteristics
  • To adopt the gearbox and torque converter to provide a super power, walking stesdily and higher reliablity, high tansmission efficiency, long life.
  • To combined excavator and loader as one machine, fully equipped with all function of mini excavator ad loader, more suitable for operating in a narrow space, convenient and flexible, reducing the whole purchase cost.
  • Excavation and loading function are pilot control, light and high efficiency.
  • Excavation slideslip device make the excavation operations broader and more efficient. For municipal, building, water conservancy,  road, water, electricity, garden and other departments, engaged in agricultural, pipe laying, cable laying, landscaping and so on.
Performance Parameter
Model MC886T MC886H
Transport Dimension
Overall Operating Weight 8200-9300kg 9300-10300kg
L*W*H  6150×2250×3763mm 6450x2530x3940mm
Wheel base 2280mm 2335mm
Min. Ground Clearance 300mm
Performance
Bucket Capacity 1.0m³ 1.2m³
Breakout Force 47KN
Loading Lifting Capacity 2500KG
Bucket Dumping Height 2760mm 3050mm
Bucket Dumping Distance 900mm 870mm
Digging Depth 52mm
Backhoe Capacity 0.3m3
Bucket digging force 50KN
Max. Digging Depth 4082-5100mm(Telescopic arm) 3820-4970mm(Telescopic arm)
Swing Angle of Excavator Grab 180o
Max. Pulling Force 60KN 86KN
Front loading hydraulic pressure 19Mpa 20Mpa
Rear excavating hydraulic pressure 19Mpa 20Mpa
Engine YUCHAI /CUMMINS
Model YC4A105Z-T20/4BTA3.9-C100
Type In Line Direct injection Four-Stroke and Injection Combustion Chamber
Cylinder-Inside Diameter*Stroke 4-108×132mm 4-102×120mm
Rated Power 75KW 74KW
Rated Speed 2200r/min 2200r/min
Min. Fuel Consumption ≤230g/km.h ≤223g/km.h
Max.Torque ≥400N.M/1500r/min ≥410N.M/1500r/min
Displacement 4.8L 3.9L
Steering System
Model of Steering Device BZZ5-250
Steering Angle ±36 o
Min. turning radius 6581mm 6950mm
Pressure of the system 14Mpa
Max. load of Front Axle 22.5 ton 13 ton
Max. load of rear Axle 18.5 ton 13 ton
Main Transmission
Type Mechanically operated Hydraulic synchronized shift
Gears 2F2R 4F4R
Max.Speed 22Km/h 36Km/h
Hydraulic torque converter YJ280 YJ315
Cooling type Oil cooling pressure circulation
Pump flow 40mL/r
Tyre
Model 14-17.5/19.5L-24 16.9-28
Pressure of Front wheel 0.4Mpa 0.35 Mpa
Pressure of Back Wheel 0.35 Mpa 0.35 Mpa
Brake System
Service Brake Air Over Oil Caliper Brake External Type Self-regulation Self-balance
Paking Brake Manual brake
