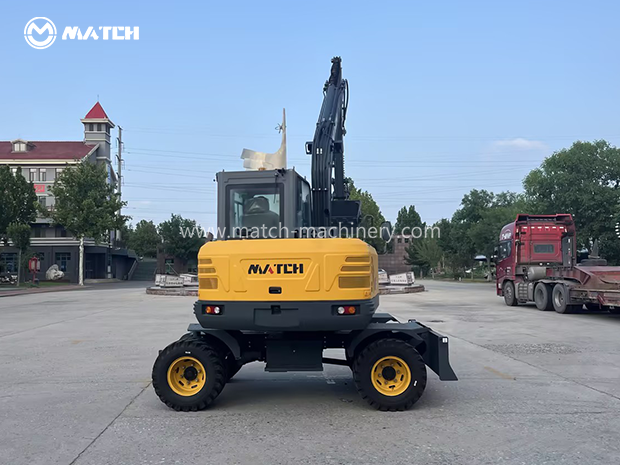

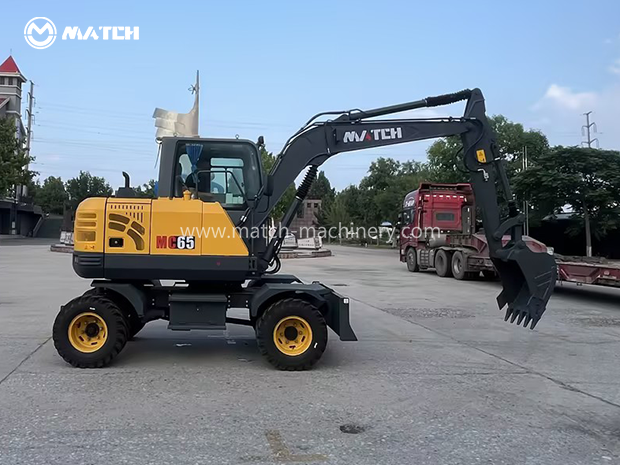

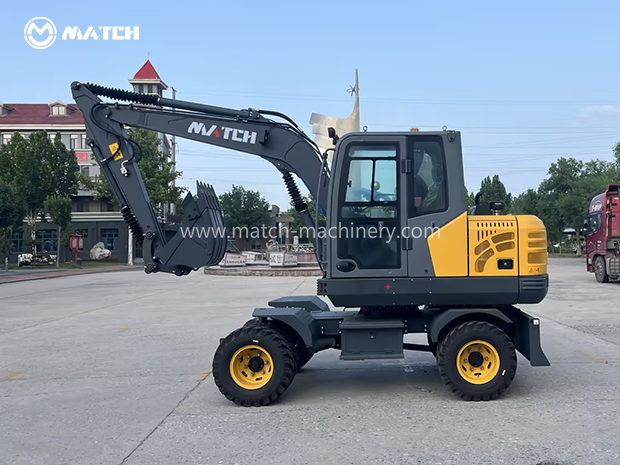

MC65 Crawler Excavator

Swing Speed: 10-11Rmp

Bucket capacity : 0.21m³

Engine power: 42.4KW/2000Rmp)

Technical characteristics

Features

Super strong configuration, excellent performance, import configuration. Domestic famous brand engine, strong power, to meet the efficient operation requirements. Accurate matching design and advanced energy saving control make the machine less fuel
consumption. Low emissionSuper strong configuration, excellent performance, import configuration.

Domestic famous brand engine, strong power, to meet the efficient operation requirementsAccurate matching design and advanced
energy saving control make the machine less fuel consumption. Low emission

The use of new cooling fans and large mufflers makes the noise of the machine lower

The advanced turbocharging technology is used to enhance the adaptability of the high altitude machine.

The unique funnel type fan cover greatly improves the engine's air intake and the ability of the system to heat the heat, so as to
ensure the continuous and efficient operation of the machine.

Advanced hydraulic system;

Performance Parameter
Performance Parameter
Bucket Capacity(M³) 0.21
Swing Speed(Rmp) 0-11
Gradeability(°) 35
Bucket Max.Digging Force(KN) 48
Arm Max.Digging Force(KN) 35
Engine Model KUBO*TA V2607
Power/Rotation Speed(KW/Rmp) 42.4/2000
Tyre Model -
System Pressure(MPa) 28
Working Range
Max.Digging Height(Mm) 5499
Max. Dumping Height(Mm) 3845
Max.Digging Depth(Mm) 3808
Max.Vertical Digging Depth(Mm) 2983
Max.Digging Radius(Mm) 6128
Min.Swing Radius(Mm) 2607
Dozer Blade Max.Lifting Height(Mm) 376
Dozer Blade Max.Cutting Depth(Mm) 474
Dimensions
Length*Width*Height(Mm) 5940*1880*2570
Cabin Height(Mm) 2600
Sproket To Idler(Mm) 1990
Axle Distancer(Mm) 1480
Min.Ground Clearance(Mm) 353
Tail Swing Radius(Mm) 1689
