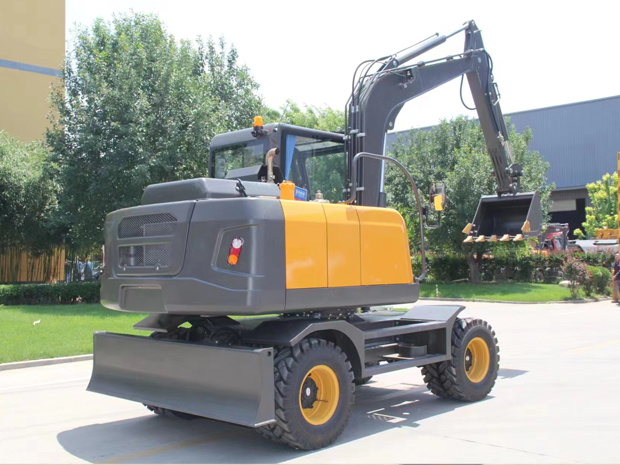

MC75L Wheeled Excavator

Bucket Capacity(m3): 0.21

Swing Speed(rmp): 0-12

Gradeablity(°): 25

Get a quote for free Product manual download

Technical characteristicsPerformance ParameterRelated ProductsContact Us

Technical characteristics
  • Precise matching design coupled with advanced energy-saving control makes the machine consume less fuel.
  • The adoption of new cooling fans and large mufflers makes the machine less noisy;
  • Adopt advanced turbocharging technology to enhance the machine’s plateau adaptability;
  • The unique funnel-shaped fan cover greatly increases the air intake volume of the engine and the system's heat dissipation capacity,
  • ensuring continuous and efficient operation of the machine.
Performance Parameter
Specifications
Bucket Capacity(m3) 0.21
Swing Speed(rmp) 0-12
Gradeablity(°) 25
Max.Bucket Digging Force(KN) 45
Max.Arm Dgging Force(KN) 36
Engine Model YC4DK85
Power/revolution speed(KW/rmp) 62.5/2200
Tire Model 8.25-16
System Pressure(MPa) 24
Machine size
Dimension Length*Width*Height(mm) 6300X2205X2850
Cabin Height(mm) 2850
Axle Base(mm) 2400
Wheel(track) Distance(mm) 1675
Minimum ground clearance(mm) 260
Tail Swing Radius(mm) 1940
Working range
Max.Digging Height(mm) 6245
Max.Dumping Height(mm) 4630
Max.Digging Depth(mm) 3820
Max.Vertical Digging Depth(mm) 2700
Max.Digging Radius(mm) 6360
Min.Swing Radius(mm) 2450
Max.Dozer Blade Lifting Distance(mm) 310
Max,Dozer Blade Cutting Distance(mm) 130
