Machine weight: 6500kg
Rated displacement : 2.982L
Power Output: 36.8KW/2200r/min

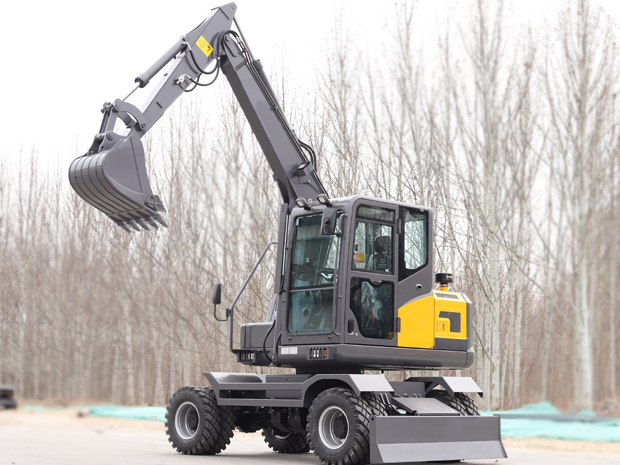

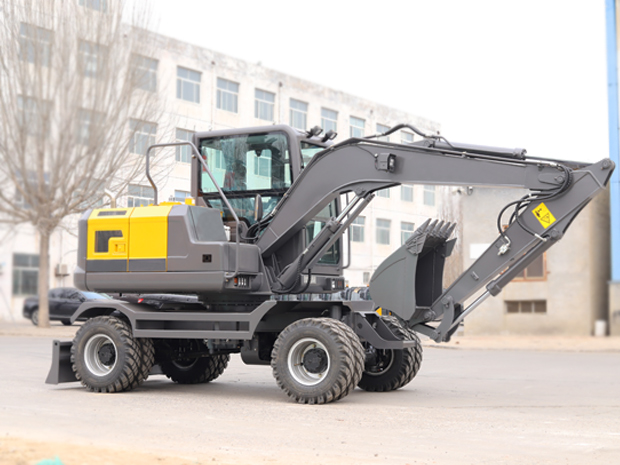

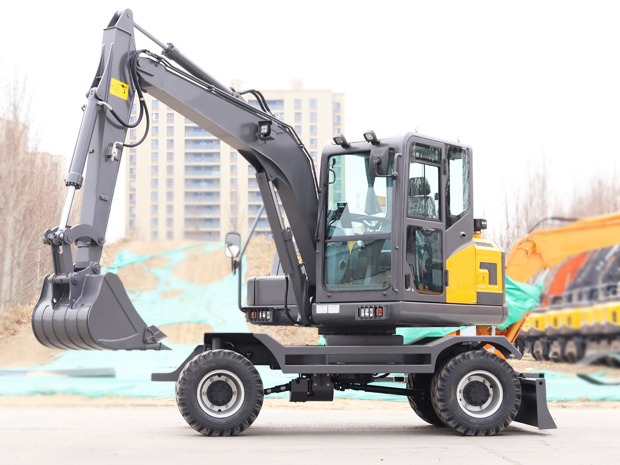

Powered by a renowned engine with a variety of power options, it's energy-efficient and environmentally friendly. A new plunger pump hydraulic system delivers smooth compound movements and high speeds. Equipped with wheel-mounted disc brake axles, the vehicle boasts strong load-bearing capacity and excellent adaptability to harsh environments. Standard features include air conditioning, a suspension seat, a large display with a rearview camera, and a well-organized button layout for simple and convenient operation. Its robust and reliable structure is constructed from high-strength manganese plate with reinforced panels in key areas for durability.
Main configuration:
1. Yuchai 36.8kW engine
2. Weifu main pump, Husk main valve
3. Liansheng 8-ton heavy-duty axle, hydraulic travel, with bulldozer, crushing pipeline, and air conditioning
4. Hydraulic oil brake, reversing camera
|
OVERALL DIMENSIONS |
|||||
|
A |
Total length |
5860 mm |
|||
|
B |
Overall width |
2 060 mm |
|||
|
C |
Total height |
2 94 0mm |
|||
|
D |
Wheelbase |
1 550 mm |
|||
|
E |
Wheelbase |
2 500 mm |
|||
|
F |
boom |
340 0mm |
|||
|
G |
Stick |
185 0mm |
|||
|
Scope of work |
|||||
|
A |
Maximum digging height |
6987 mm |
|||
|
B |
Maximum unloading height |
5102 mm |
|||
|
C |
Maximum digging depth |
3362 mm |
|||
|
D |
Maximum vertical digging depth |
2897mm |
|||
|
E |
Maximum digging radius |
6519 mm |
|||
|
F |
Maximum surface excavation radius |
6336mm |
|||
|
G |
Minimum turning radius of front end |
2264 mm |
|||
|
H |
Minimum turning radius at rear end |
1685 mm |
|||
|
Technical Parameters |
|
||||
|
Machine weight |
6.5 T ±5% |
|
|||
|
Engine Model |
Yuchai National IV YCF3050-T450 |
|
|||
|
Type |
Four-cylinder water-cooled electronic injection |
|
|||
|
Rated displacement |
2.982L |
|
|||
|
Power Output |
36.8 KW / 2200 r/min |
|
|||
|
Walking speed |
0-30 km/h |
|
|||
|
Gradeability |
2 0 ° |
|
|||
|
Minimum ground clearance |
290 mm |
|
|||
|
Main pump type |
variable displacement axial piston pump |
|
|||
|
Maximum flow |
176 L/min |
|
|||
|
Rotation speed |
10 r/min |
|
|||
|
Bucket Capacity |
0.25m³ |
|
|||
|
diesel tank |
170L |
|
|||
|
Hydraulic oil tank |
110L |
|
|||
