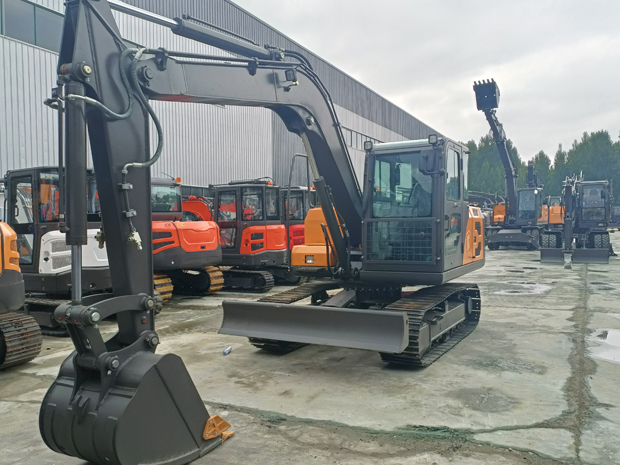

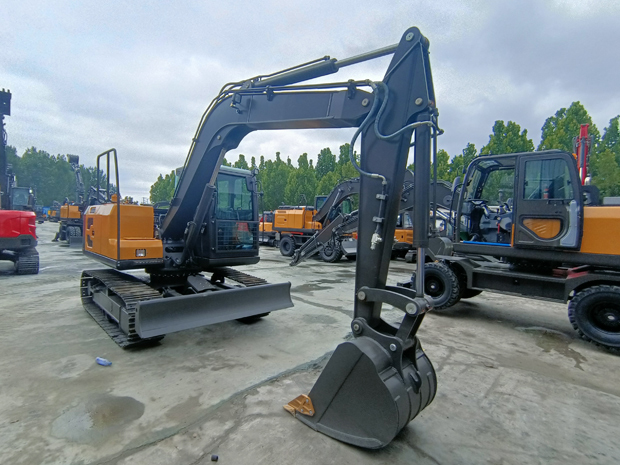

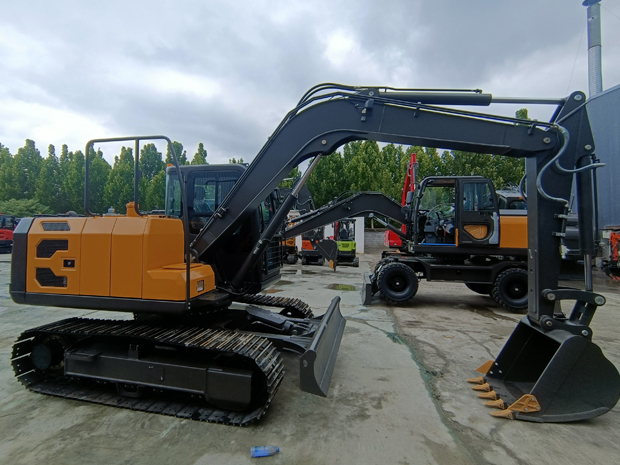

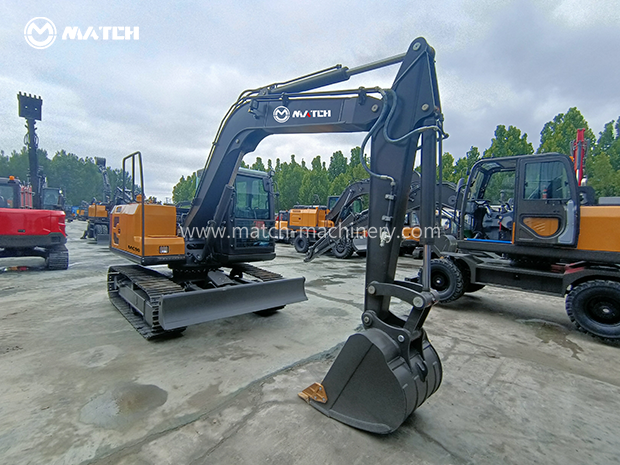

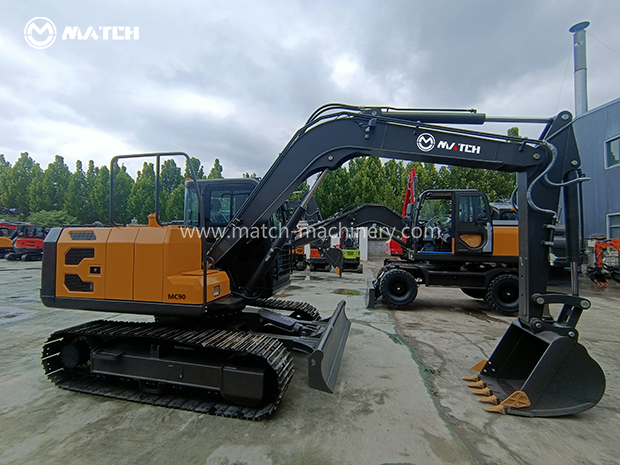

MC90 Crawler Excavator

Swing Speed: 0-12RMP

Bucket capacity : 0.4m³

Engine power: 53KW/2200RMP

Get a quote for free Product manual download

Technical characteristicsPerformance ParameterRelated ProductsContact Us

Technical characteristics

Features

The crawler excavator is an economic type excavator, which matched imported engine with strong power and low noise and low consumption and environment protection.
Fitted imported brand main pump and valves .
Adopted imported driving motor and swing motor.
Adopted hydraulic pilot servo operation system and hydraulic oil radiator ensure the machine have high working efficiency .
The professional structural parts and working mechanism , ensure the machine has reliability and durability .
The breaking pipeline equipped improve the working performance .
Installed luxury full seal cabin with A/C and LCD display and LED lights etc.
The humanized design , ensure the machine can comfortable operation and convenient maintenance.



Performance Parameter
Performance Parameter
Bucket Capacity(m³) 0.4
Swing Speed(Rmp) 0-12
Gradeability(°) 35
Bucket Max.Digging Force(KN) 58
Arm Max.Digging Force(KN) 40
Engine Model QSF2.8
Power/Rotation Speed (KW/Rmp) 53/2200
System Pressure(MPa) 27.5
Working Range
Max.Digging Height(Mm) 7050
Max. Dumping Height(Mm) 5188
Max.Digging Depth(Mm) 4015
Max.Vertical Digging Depth(Mm) 3550
Max.Digging Radius(Mm) 6540
Min.Swing Radius(Mm) 2140
Dozer Blade Max.Lifting Height(Mm) 370
Dozer Blade Max.Cutting Depth(Mm) 344
Dimensions
Length*Width*Height(Mm) 6410*2278*2630
Cabin Height(Mm) 2630
Sproket To Idler(Mm) 2209
Axle Distancer(Mm) 1750
Min.Ground Clearance(Mm) 375
Tail Swing Radius(Mm) 1813
