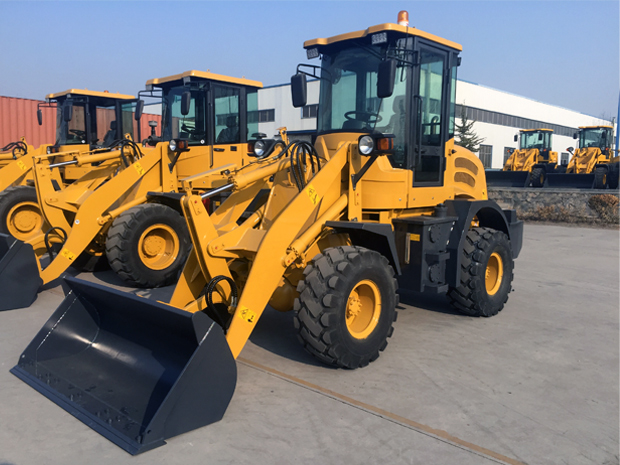

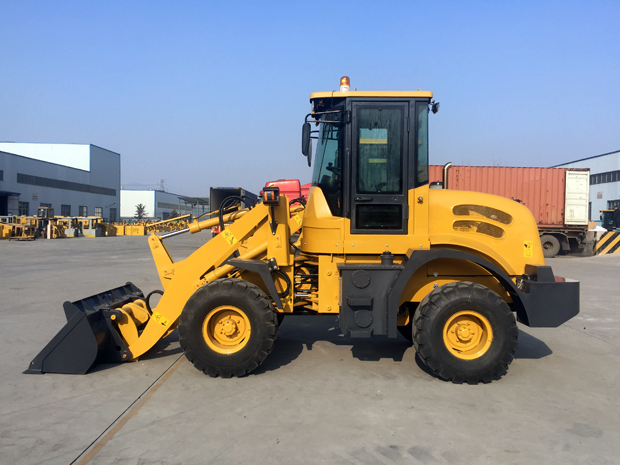

MC920 Wheel Loader-Tianjin Match Machinery Co.,Ltd.

Technical characteristics

Features

Controlled by flexible shaft, hydraulic power shift gearbox with 2 forward and2 reverse gears makes operate easy.
Single pump, split flow working hydraulic system makes lower consumption and excellent performance.
Double sealed hydraulic pipeline joints with 24°awl and O ring of international standard, avoiding oil leakage.
Load sensing fully hydraulic steering system, easy and flexible operation.
Air over hydraulic brake system; Caliper disc brakes.
Working device with automatically leveling ability at high position
Bucket articulated points take sealed, lubricated, dust-proof layers, which owns good durability.
Integral, luxury instrument board.
New, luxury cabin.

Performance Parameter

Wheel loader general specification	MC920
rated load(kg)	1000
bucket capacity(m3)	0.5
lifting time(s)	3
lifting,tiping,and down time(s)	5.2
max. pulling force(kN)	26
max. break force(kN)	19
max.climbing grade(°)	25
centrol of tyres(mm)	3640
out side of bucket(mm)	/
lendth(mm)	5050
width(mm)	1860
height(mm)	2630
wheel base(mm)	2210
wheel track(mm)	1430
Min.distance to the ground(mm)	260
dumping height(mm)	2860
dumping distance at the highest position(mm)	810
front speed range(km/h)	0-23
rear speed range(km/h)	0-23
operation weight(kg)	3980
Engine information
Manufacture/brand	Xichai
model	4DW91
cylinder number	4
rated power(kW)	33
Max torque/speed(N·m/r/min)	180/1600-1800
Transmission system information
torque convertor model	YJ240
type	Mechanical manipulation of shaft power shift
gear shifting	F2R2
axle model	ZL1520
tyres model	20.5/70-16
Working control system information
working control type	Mechanical control
Oil information
fuel tank volume(L)	52L
hydraulic oil volume(L)	52L
radiator liquid volume(L)	24L
engine oil volume(L)	6L
transmission oil volume(L)	24L
