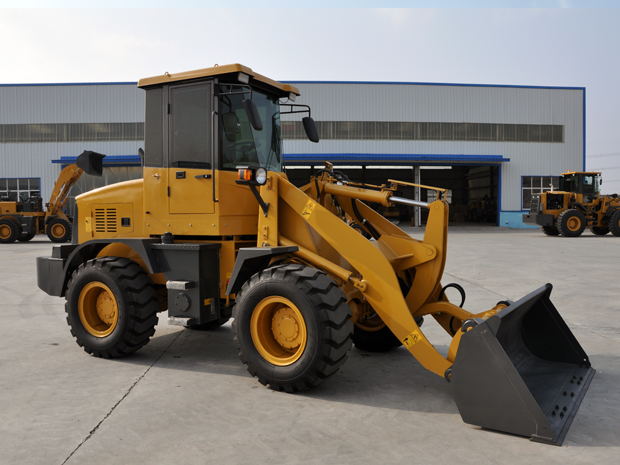

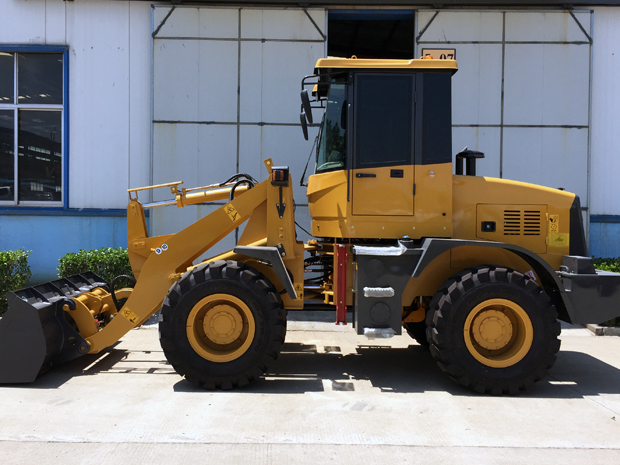

MC927 Wheel Loader-Tianjin Match Machinery Co.,Ltd.

Technical characteristics

Features

Controlled by flexible shaft, hydraulic power shift gearbox with 2 forward and 2 reverse se gears makes operate easy.
Single pump, split flow working hydraulic system makes lower consumption and excellent performance.
Double sealed hydraulic pipeline joints with 24°awl and O ring of international standard, avoiding oil leakage
Load sensing fully hydraulic steering system, easy and flexible operation
Air over hydraulic brake system; Caliper disc brakes
Working device with automatically leveling ability at high position
Bucket articulated points take sealed, lubricated, dust-proof layers, which owns good durability
Integral, luxury instrument board.
New, luxury cabin

Performance Parameter

Wheel loader general specification	MC927
rated load(kg)	1800
bucket capacity(m3)	0.8
lifting time(s)	3.2
lifting,tiping,and down time(s)	7.1
max. pulling force(kN)	41
max. break force(kN)	27
max.climbing grade(°)	25
centrol of tyres(mm)	4200
out side of bucket(mm)	/
lendth(mm)	5700
width(mm)	2100
height(mm)	2870
wheel base(mm)	2340
wheel track(mm)	1470
Min.distance to the ground(mm)	320
dumping height(mm)	3130
dumping distance at the highest position(mm)	880
front speed range(km/h)	0-23
rear speed range(km/h)	0-23
operation weight(kg)	5000
Engine information
Manufacture/brand	Xichai
model	4DX21
cylinder number	4
rated power(kW)	53
Max torque/speed(N·m/r/min)	300/1600-1800
Transmission system information
torque convertor model	YJ265
type	Mechanical manipulation of shaft power shift
gear shifting	F2R2
axle model	ZL1820
tyres model	16/70-20
Working control system information
working control type	Mechanical control
Oil information
fuel tank volume(L)	60L
hydraulic oil volume(L)	65L
radiator liquid volume(L)	28L
engine oil volume(L)	8L
transmission oil volume(L)	26L
