Operating Mass : 8000kg
Maximum Speed : 0-10km/h
Diesel Engine Power : 75kw

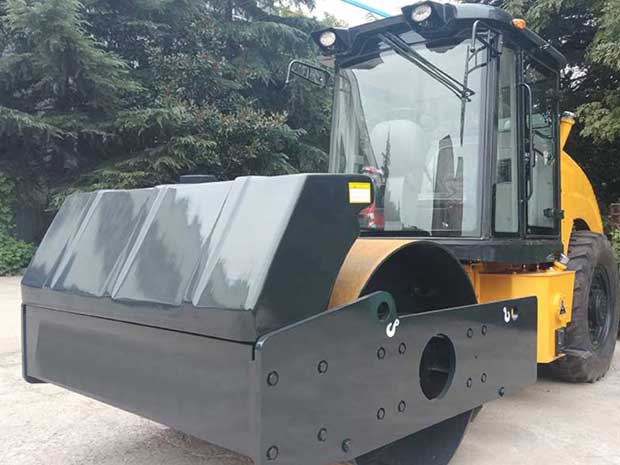

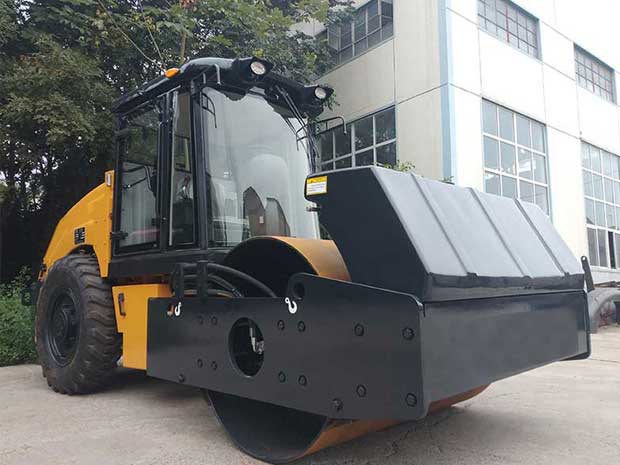

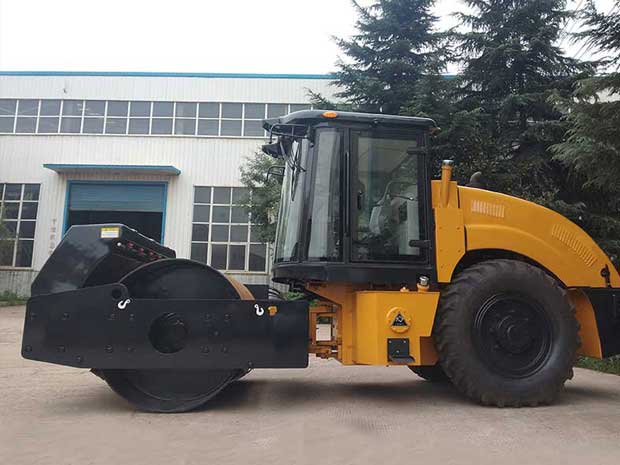

MC208H Hydraulic rear driver vibratory roller is manufactured according to the international advanced technology and by use of imported components from abroad. The machine is super heavy-duty vibratory roller, possesses a great working mass and strong centrifugal force. It is the best compaction equipment of high quality and high effect in the large-scale mechanized construction. This machine is suitable for non-cohesive materials, such as graves, macadam, macadam-aggregate mixtures and sandy soil etc. Also it can effect good compaction in cohesive material, There-fore the machine an ideal equipment for expressway. mining road, embankment, sea port 208 and industrial sites.
Features
|
Model
|
MC208H
|
|
Operating mass
|
8000kg
|
|
Static linear load
|
230N/cm
|
|
Vibration amplitude
|
0.4mm
|
|
Centrifugal force
|
70Kn
|
|
Vibration frequency
|
43Hz
|
|
Travel speed
|
0-10Km/h
|
|
Ground clearance
|
360mm
|
|
Electrical voltage
|
24V
|
|
Tire size
|
12.0-20
|
|
Grade ability
|
25%
|
|
Turning radius
|
6000mm
|
|
Overall dimension (LxWxH)
|
5030x1880x2570mm
|
|
Drum rim thickness
|
16mm
|
|
Drum width
|
1700mm
|
|
Wheel base
|
2684mm
|
|
Diesel engine power
|
75Kw/2200rpm
|
|
Diesel engine model
|
CUMMINS4BT3.9
|
|
Fuel tank capacity
|
130L
|
|
Hydraulic tank capacity
|
130L
|
|
Driving system
|
DANFOSS
|
|
Ship
|
2units/40HQ
|
