Operating Mass : 26000kg
Maximum Speed : 0-4.5/0-7km/h
Diesel Engine Power : 154kw

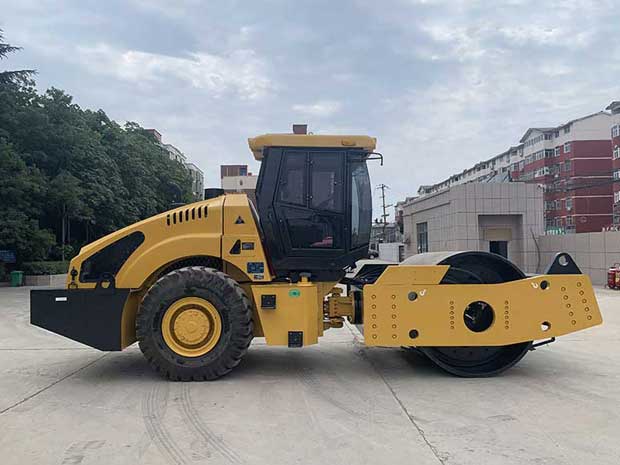

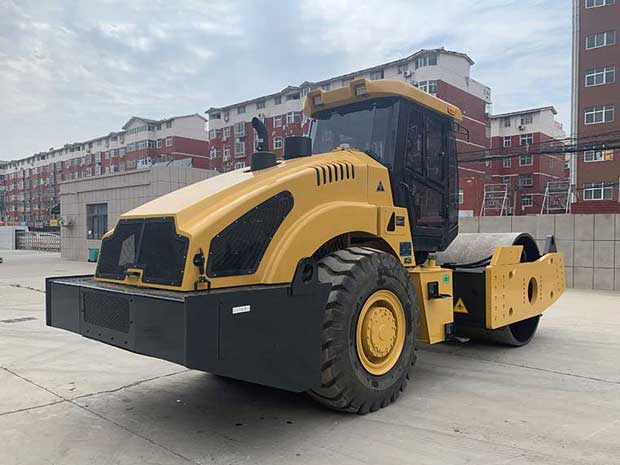

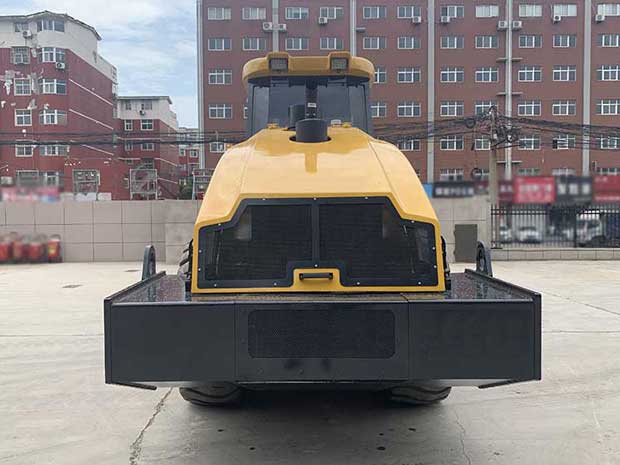

MC723H full hydraulic double drive single steel wheel vibratory roller, with large working quality and strong exciting force, is an ideal compaction equipment in large area, high quality, high efficiency and mechanized construction. It is suitable for compacting gravel, gravel, sand mixture, sand soil and other non-cohesive materials and low material, and can be used for foundation compaction operations in projects such as highways, mining roads, large DAMS, important ports and industrial sites.
Hydrostatic all-wheel drive, second gear stepless transmission, hydraulic vibration, frequency conversion amplitude. Hydraulic articulated steering, using Weichai WP6G national three diesel engine, new streamlined fuselage, special drive axle for roller, travel system and vibration system using well-known brand plunger pump, motor, equipped with anti-UV glass and rolover protection function of air conditioning cab, optional compaction degree random detector.
Features
|
Model
|
MC723H
|
|||||
|
Operating mass
|
kg
|
26000
|
||||
|
Static line load
|
N/cm
|
695
|
||||
|
The amplitude
|
mm
|
1.9/0.95
|
||||
|
Exciting frequency
|
HZ
|
28/35
|
||||
|
Exciting force
|
kn
|
460/360
|
||||
|
Maximum speed
|
km/h
|
0-4.5/0-7
|
||||
|
Climbing ability
|
°
|
35%
|
||||
|
Overall dimension (LxWxH)
|
mm
|
7025×2358×2130
|
||||
|
Turning radius
|
mm
|
7500
|
||||
|
Vibration width
|
mm
|
2130
|
||||
|
Diesel engine power
|
Kw
|
154
|
||||
|
Diesel engine model
|
WP6G210
|
|||||
