Operating Mass : 10000kg
Maximum Speed : 0-10km/h
Diesel Engine Power : 110kw

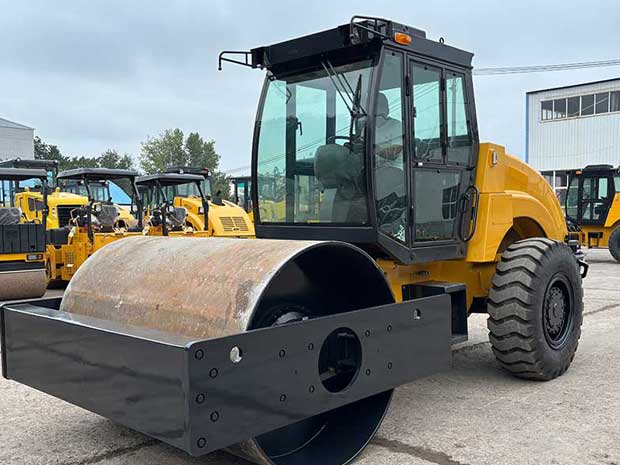

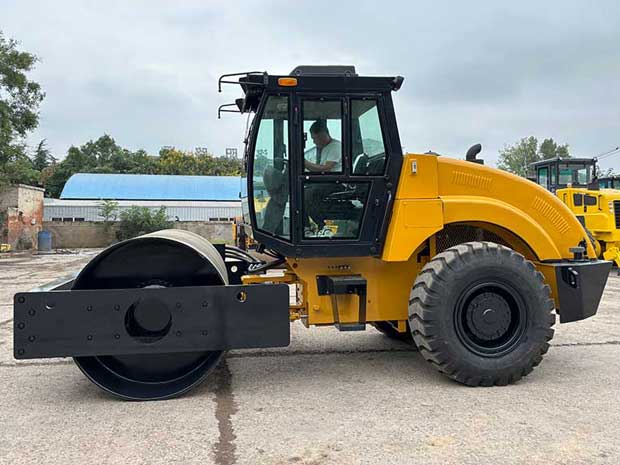

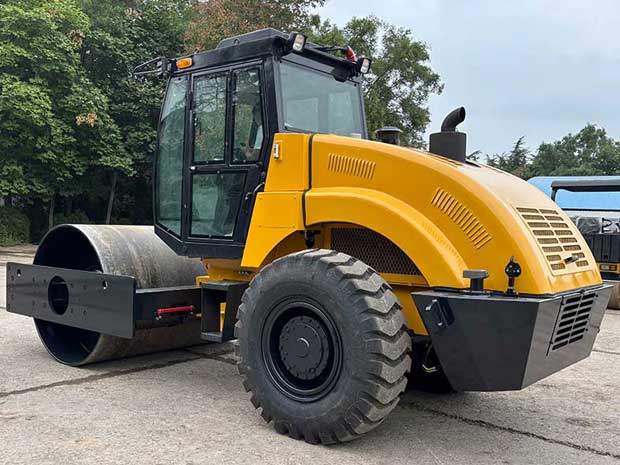

MCS210H Hydraulic rear driver vibratory roller is manufactured according to the international advanced technology and by use of imported components from abroad. The machine is super heavy-duty vibratory roller, possesses a great working mass and strong centrifugal force. It is the best compaction equipment of high quality and high effect in the large-scale mechanized construction. This machine is suitable for non-cohesive materials, such as graves,macadam, macadam-aggregate mixtures and sandy soil etc. Also it can effect good compaction in cohesive material, There-fore the machine an ideal equipment for expressway. mining road, embankment, sea port and industrial sites.
Features
|
Model
|
MCS210H
|
|
Operating mass
|
10000kg
|
|
Static linear load
|
286N/cm
|
|
Vibration amplitude
|
1.6/0.8mm
|
|
Centrifugal force
|
260/160Kn
|
|
Vibration frequency
|
29/35Hz
|
|
Travel speed
|
0-10.2Km/h
|
|
Ground clearance
|
360mm
|
|
Electrical voltage
|
24V
|
|
Tire size
|
17.5-25
|
|
Grade ability
|
35%
|
|
Turning radius
|
7000mm
|
|
Overall dimension (LxWxH)
|
5610x2280x3000mm
|
|
Drum rim thickness
|
24mm
|
|
Drum width
|
2100mm
|
|
Wheel base
|
3060mm
|
|
Diesel engine power
|
110kw/2300rpm
|
|
Diesel engine model
|
CUMMINS6BT5.9
|
|
Fuel tank capacity
|
220L
|
|
Hydraulic tank capacity
|
160L
|
|
Driving system
|
DANFOSS
|
|
Ship
|
1 unit/40HQ 3units/2x40HQ
|
|
Optional:removable padfoot
|
|
