Gross vehicle weight/Payload mass (kg): 160000/110000
Engine Model/Power (kW): WP17G770E304/566
Transmission Model: 8DSS330+FHB400

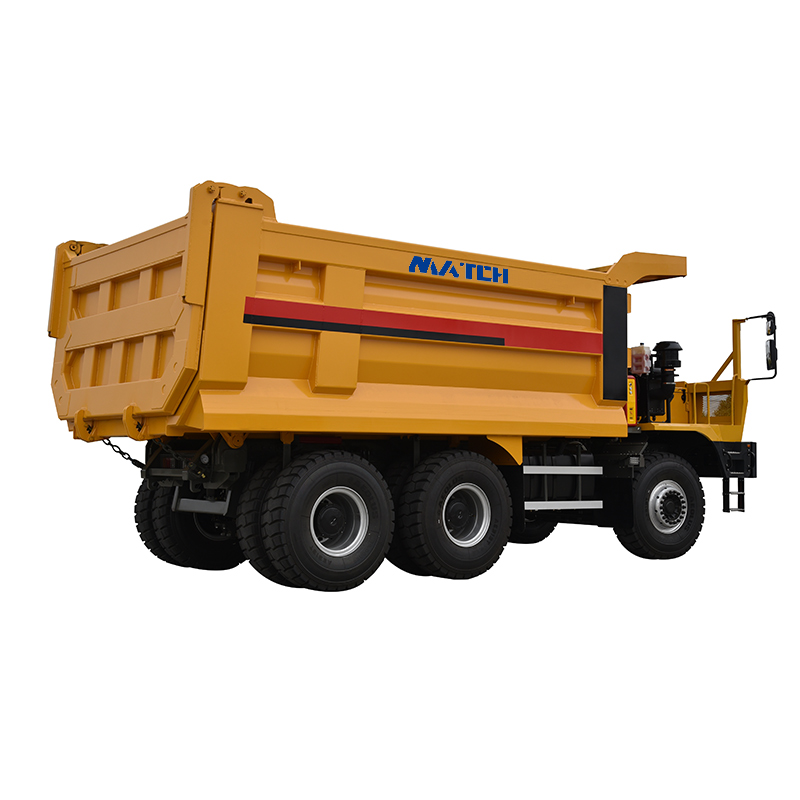

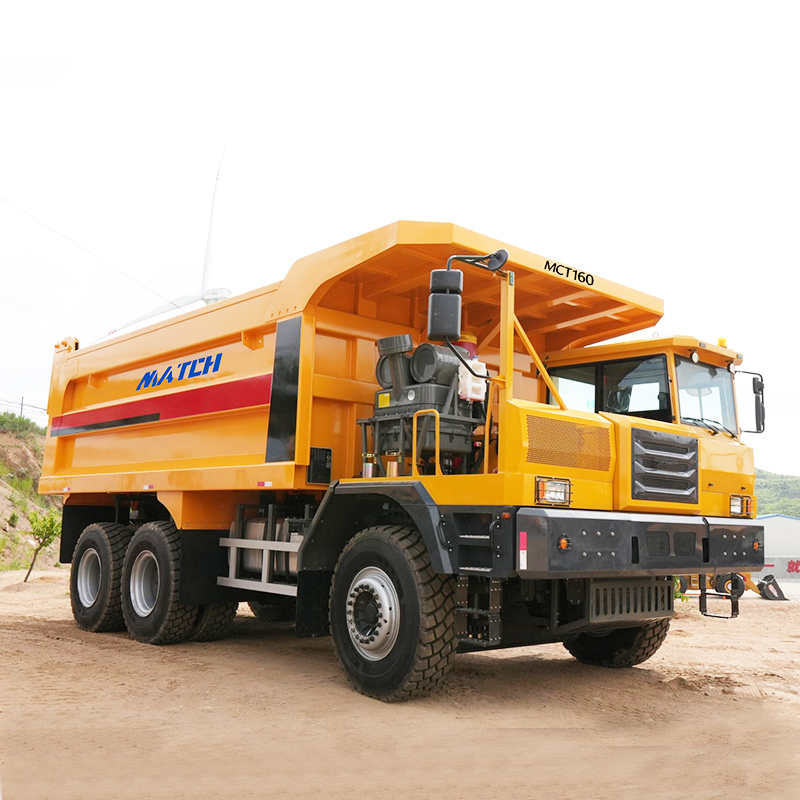

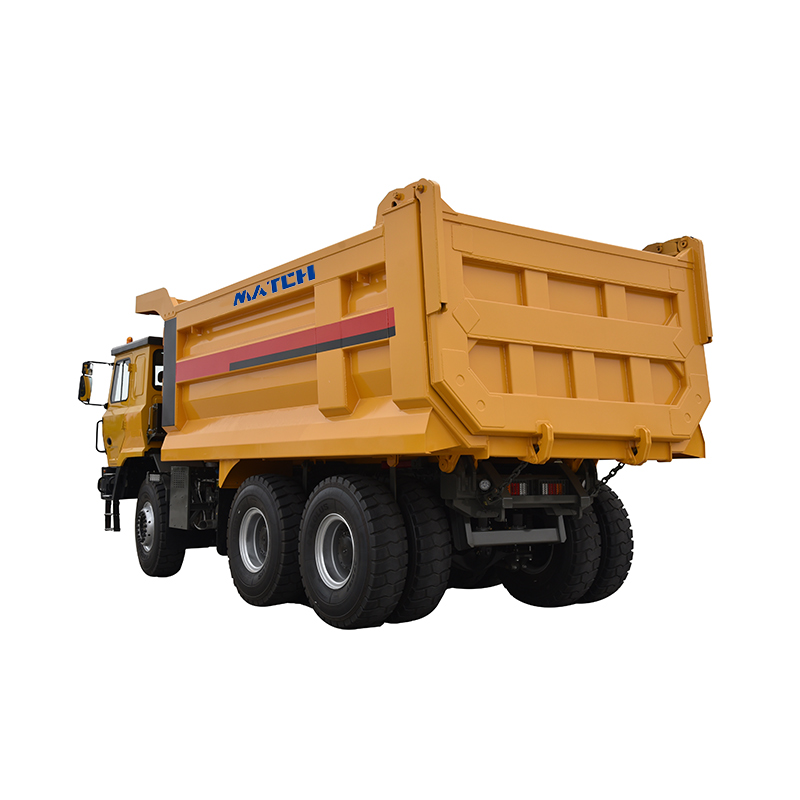

The MCT160 is a heavy-duty mining truck engineered for optimal performance in large-scale open-pit mining operations. Designed to withstand harsh working conditions, it combines robust construction, high efficiency, and advanced technology to deliver superior hauling capabilities. With a payload capacity of 160 metric tons, the MCT160 ensures reliable transportation of overburden, coal, and minerals while minimizing operational costs and maximizing productivity.
Features:
Ideal for coal, iron ore, copper, and gold mining operations, as well as major construction projects requiring high-efficiency bulk material transport.
Let me know if you need adjustments or additional details!
| Parameter | Specification |
| Model | MCT160 Mining Truck |
| Payload Capacity | 160 metric tons |
| Engine | High-efficiency diesel engine |
| Engine Power | 2,000 HP (1,491 kW) |
| Emission Standard | EU Stage V / EPA Tier 4 Final |
| Transmission | Automated mechanical transmission (AMT) with adaptive shift control |
| Max Speed | 64 km/h (40 mph) |
| Gradeability | 25% |
| Turning Radius | 13.5 m (44.3 ft) |
| Tire Configuration | 6x4 (6-wheel drive) |
| Tire Size | 40.00 R57 (standard) / Customizable options available |
| Body Capacity | 95 m³ (Heaped) |
| Operating Weight | 128,000 kg (282,192 lbs) |
| Overall Dimensions | |
| - Length × Width × Height | 13.2 m × 7.4 m × 6.8 m (43.3 ft × 24.3 ft × 22.3 ft) |
| Fuel Tank Capacity | 1,800 L (475 gallons) |
| Suspension | Heavy-duty independent hydraulic suspension |
| Brake System | Dual-circuit oil-immersed disc brakes + retarder |
| Cab Features | ROPS/FOPS-certified, air conditioning, ergonomic controls, anti-fatigue seating |
| Safety Systems | Collision avoidance, tire pressure monitoring, 360° camera system |
| Maintenance Interval | 500 hours (standard) / Condition-based monitoring supported |
