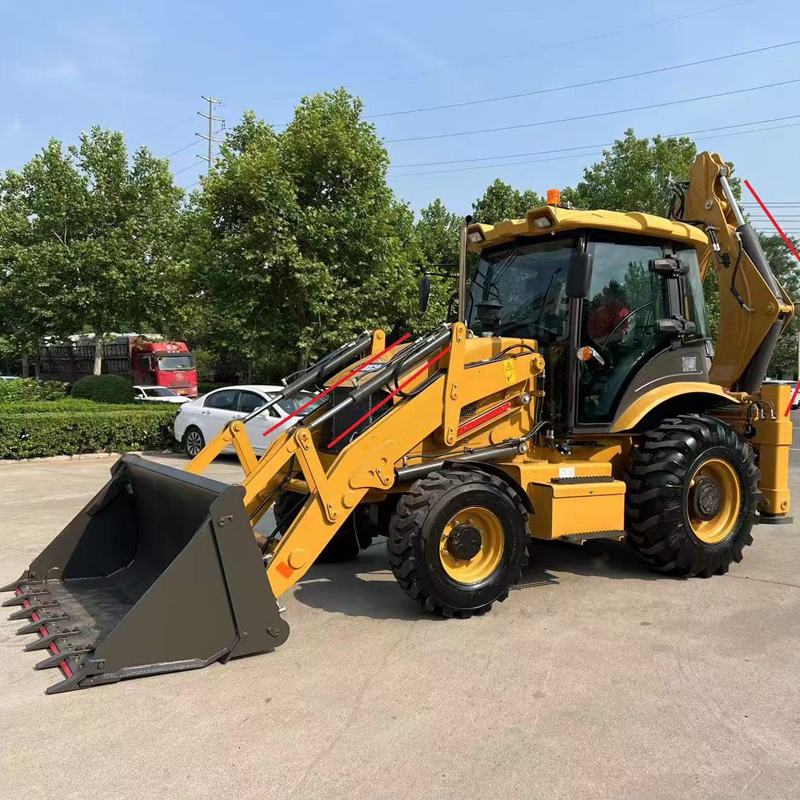

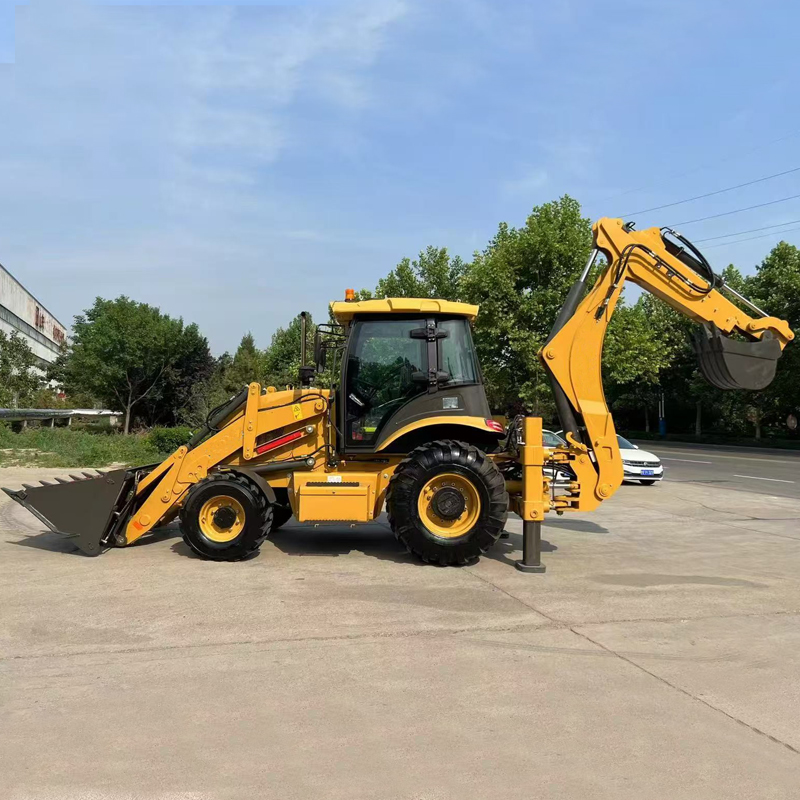

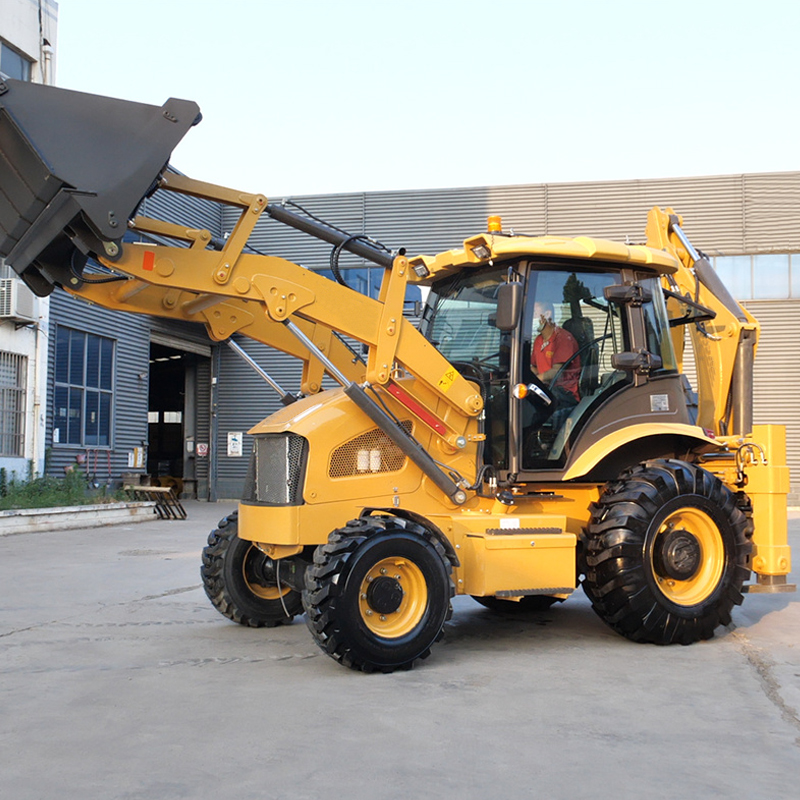

MCZ388T small tractor with backhoe adheres to the principles of energy conservation, environmental protection, intelligence, and sustainability from the design concept to the development plan.
MCZ388T small tractor with backhoe adheres to the principles of energy conservation, environmental protection, intelligence, and sustainability from the design concept to the development plan. Based on the original functions of MCZ388T backhoe loader, the system units have been redesigned and optimized, fully implementing a standardized and universal design philosophy. MCZ388T small tractor with backhoe equips with Carraro gearbox, Carraro axles, Danfoss parts and ROPS&FOPS cab, provides comfortable, stable performance. MCZ388T backhoe loader is particularly suitable for road construction and maintenance, including excavation, foundation digging, trenching for pipes, drainage ditches, and other underground facilities. When equipped with attachments, it can also be used for compaction, crushing, milling, and other applications.
MCZ388T small tractor with backhoe is a powerful machine designed to meet the demands of the European market. It could features Perkins, Cummins, and Weichai Euro 5 engines that provide strong and reliable power, making it ideal for heavy-duty work.
MCZ388T small tractor with backhoe arm is equipped with a mid-digging device, providing excellent stability when crushing rocks or performing deep excavations. This design ensures high-level stability, making it more effective than other types of excavating devices.
MCZ388T tractor loader excavator is fitted with a specially designed chassis that is based on the excavator loader system. This enables deeper excavation, resulting in more effective digging. Thanks to the well-designed chassis, the machine is also highly maneuverable and benefits from a small turning radius.
MCZ388T small tractor with backhoe r’s integral frame provides excellent flexibility and enables smooth operation. This means that the MCZ388T can easily adapt to different working conditions, depending on the requirements of the job. Additionally, the optimized loading, excavating, and walking mechanisms increase backhoe loader’s height and capacity, enhancing the overall efficiency of the machine.
| Overall dimensions | Vehicle operation quality | 7800KG |
| Overall dimensions (L×W×H) | 6050 × 2465 × 3152mm | |
| Wheelbase | 2280mm | |
| Wheelbase | 1785mm | |
| Minimum ground clearance | 300mm | |
| Performance | Loading bucket capacity | 1.0m³ |
| Digging force | 47KN | |
| Load lifting capacity | 2500KG | |
| Bucket unloading height | 2760mm | |
| Bucket unloading distance | 900mm | |
| shoveling depth | 52mm | |
| Reverse bucket capacity | 0.3m³ | |
| Bucket digging force | 50KN | |
| Digging back corner | 180° | |
| Unloading height of bucket | 3795mm | |
| Maximum excavation depth | 4085mm | |
| Maximum traction | 60KN | |
| Engine | Model | Yuchai YC4A105Z-T20 |
| Type | In-line, direct injection, water cooling, turbocharging, four-stroke | |
| Number of cylinders-inner diameter × stroke | 4-108 × 132 | |
| Rated power | 75KW | |
| Rated speed | 2200r/min | |
| Minimum Fuel Rate | 230g/kw.h | |
| Maximum torque | 400N.m | |
| Displacement | 4.8L | |
| Steering system | Type | Hydraulic steering |
| Steering gear model | BZZ5-250 | |
| Displacement of working pump | 63ml/r | |
| Steering angle | ±36° | |
| Minimum turning radius | 6581mm | |
| Drive axle | Model | WZZD75D |
| Manufacturer | China Axle | |
| Rated front axle load | 22.5T | |
| Rated rear axle load | 18.5T | |
| Drive system | Gearbox | Mechanically operated hydraulically synchronized shift |
| Model | ZL15 | |
| Number of gears | 2nd forward gear, 2nd reverse gear | |
| Torque converter | YJ290 | |
| Inlet pressure | 0.4-0.65Mpa | |
| Outlet pressure | 1.5-1.8Mpa | |
| Cooling mode | Oil cooling pressure cycle | |
| Flow | 40ml/r | |
| Tires | Front/rear specifications | 14-17.5/19.5L-24 |
| Front wheel air pressure | 0.4Mpa | |
| Rear wheel air pressure | 0.35Mpa | |
| Maximum speed | 24Km/h | |
| Braking system | Service brake | Gas cap oil clamp plate, external type, self-adjusting, self-balancing |
| Parking brake | Manual brake | |
| System pressure | Loading hydraulic system | 19Mpa |
| Excavation hydraulic system | 19Mpa | |
| Steering hydraulic system | 14Mpa |
