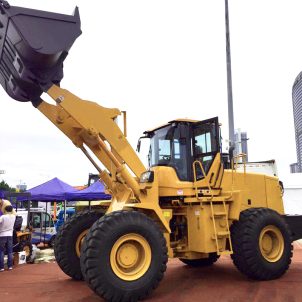

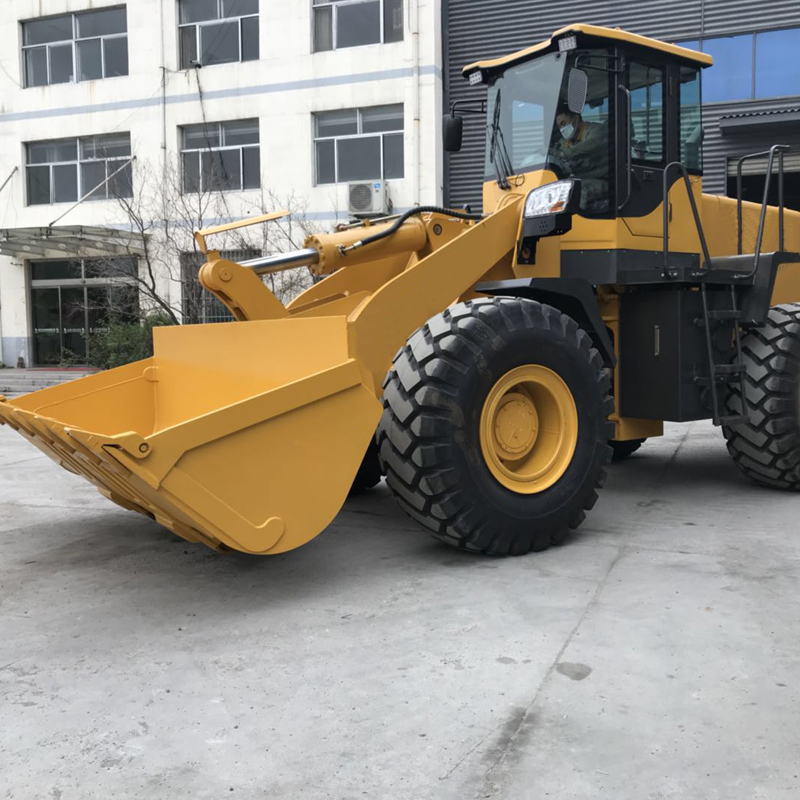

MCZ956L Wheel Loader

Equipped with Weichai WD Engine ,optional Shangchai6121(Caterpillar121 technical), Dongfeng Cummins; High quality self-made hydraulic gearbox and driving axle.

Get a quote for free Product manual download

Technical characteristicsPerformance ParameterRelated ProductsContact Us

Technical characteristics

Performance and characteristic

  • Equipped with Weichai WD Engine ,optional Shangchai6121(Caterpillar121 technical), Dongfeng Cummins
  • High quality self-made hydraulic gearbox and driving axle.
  • Choose best hydraulic components, pilot operation, easy and durable.
  • Strong and durable frame, have the automatic flat function in high place.
  • (Quick change )option attachment: wooden fork, pipe, pallet fork, grass fork, rock bucket, bigger bucket, snow bucket, mixing bucket etc
  • Luxurious cab, cab rollover, easy to keep and operate.
  • Changeable luxurious meter, air conditioner, back camera, more comfortable for driving.
  • High pressure and safer air assist disc brake braking system
  • According to clients request, customize higher dumping and longer arm products.
Performance Parameter

Overall Dimension                                                        MCZ956L

1

Length(with bucket on ground)

8020mm

2

Width(to outside of wheels)

3050mm

3

Bucket width

3080mm

4

Height(To the top of the cab)

3350mm

5

Wheel base

3200mm

6

Min. ground clearance

430mm



Technical Specification
1 Rated load  5000kg
2 Operating weight  16800kg
3 Rated bucket capacity  3m³
4 Max. dump clearance  3200
5 Dump reach  1250
6 Min. turning radius(wheel)  6450



Diesel engine
1 Model  SC11CB220G2B1
2 Type  In-line, direct injection, water cooling
3 Rated output  162KW/2200r/min
4 Total exhaust of cylinder  10.45L
5 Max. Torque  912（N.M



Diesel engine
1 Model  SC11CB220G2B1
2 Type  In-line, direct injection, water cooling
3 Rated output  162KW/2200r/min
4 Total exhaust of cylinder  10.45L
5 Max. Torque  912（N.M



Drive axle
1 Model
2 Manufacturer maichi
3 Rated front axle load 20T
4 Rated rear axle load    10T



Working Hydraulic System
1 Model of oil pump CBGJ3160
2 System pressure 18Mpa
3 Model of Muti-way directional valve  D32
5 Pilot valve （optional） DJST.7



Teering System
1 Model of steering pump  CBGJ2080/1010
2 Model of redirector   B22-800
3 Model of priority valve   YXL-F250L
4 System pressure  16Mpa



Brake System
1 Type of traveling brake   Air-over-oil caliper disc brake
2 Air pressure  0.6-0.8Mpa
3 Type of parking brake  Air cut-off caliper brake



Oil Capacity
1 Fuel(diesel)  300L
2 Engine lubricating oil  18L
3 Oil for converter and gear box  46L
4 Oil for hydraulic system  260L
5 Oil for driving axles（F/R）  35L
