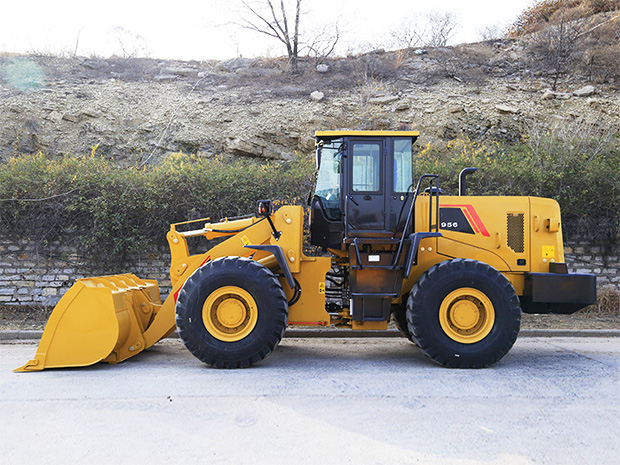

MC956 Wheel Loader-Tianjin Match Machinery Co.,Ltd.

Technical characteristics

Central articulated frame, small turning radius, mobile and flexible, lateral stability, ease of operation in the narrow space.
Air over hydraulic disc brake on 4 wheels system and expire brake is used in brake system, which has large brake force and makes stable brake and high safety.
Weichai Styer turbo-charged diesel engine is high power and torque, low fuel consumption and noise ,high reliability .Double-stage air filter is standard equipment for dusty fields.
Full hydraulic steering, power shift transmission, hydraulic control device work with two lightweight flexible operation, action smooth and reliable.
Twin pump-merging flow of working pump and steering pump. when the machine is not steering more engine power is available to breakout and lift forces. Resulting in increased economy.
Pilot hydraulic implement controls make operate easy and comfortable.
Large side door engine cover, beautiful and easy to maintain.

Performance Parameter

Performance	rated load	5000kg
	overall weight	16500kg
	rated bucket capacity	3m³
	maximum tractive force	145KN
	maximum breakout force	≥175KN
	maximum grade ability	30℃
	maximum dump height	3142mm
	maximum dump reach	1250mm
	overall dimension(L×W×H)	8085×2965×3450mm
	minimum turning radius	6732mm
Engine	model	Weichai Steyr WD10G220E23
	type	lnline water cooling dry cylinder injection
	type	lnline water cooling dry cylinder injection
	No. of cylinder-bore/stroke	6－126×130mm
	rated power	162kw--2000r/min
	maximum torque	980N.m
	min fuel-consume ratio	≤212.7g/kw.h
	torque converter	Single stage two phase four components
	gearbox mode	Power shift planetary structure
	gear shift	2 forward shift 1 reverse shift
	gear shift	2 forward shift 1 reverse shift
	maximum speed	38km/h
Drive axles	main reducing spiral	bevel gear grade 1reduction
	main reducing spiral	bevel gear grade 1reduction
	decelerating mode	planetary reduction,grade 1
	decelerating mode	planetary reduction,grade 1
	wheel base (mm)	3250mm
	wheel tread(mm)	2250mm
	minimum ground clearance	450mm
	system working pressure	18MPa
Hydraulic system	boom lifting time	5.1s
	total time	9.3s
	fuel tank capacity	249L
	function of leveling automatically	yes
	function of leveling automatically	yes
Brake system	service brake	air over hydraulic disc brake on 4 wheels
	service brake	air over hydraulic disc brake on 4 wheels
	parking brake	manual parking brake
	type specification	23.5-25
	front tyre pressure	0.4Mpa
	rear tyre pressure	0.35Mpa
	rear tyre pressure	0.35Mpa
fuel tank	Fuel tank capacity	290L
fuel tank	Fuel tank capacity	290L
