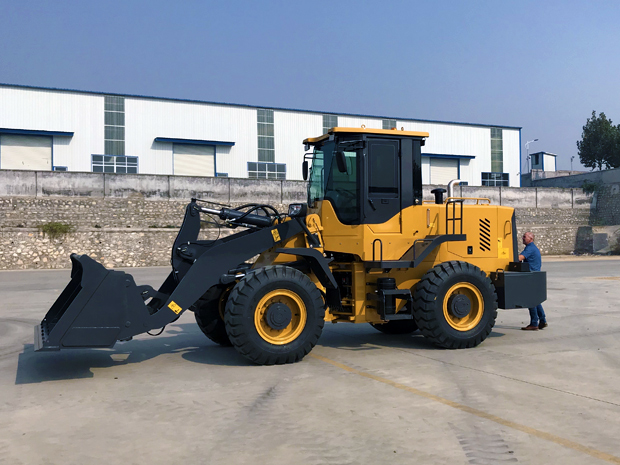

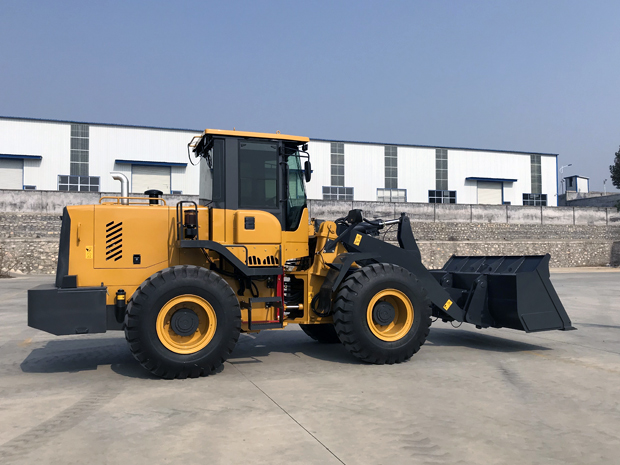

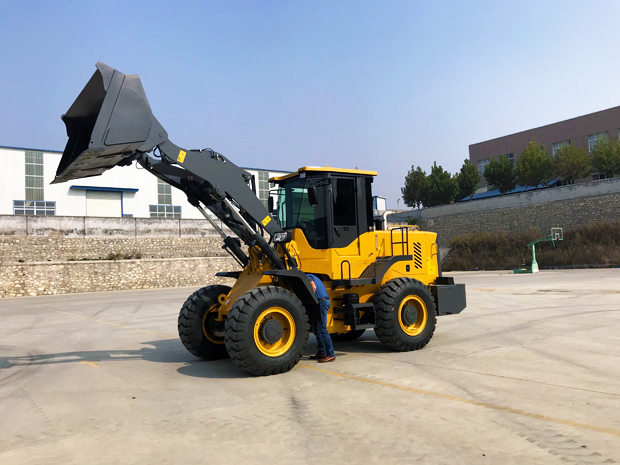

MC937 Wheel Loader-Tianjin Match Machinery Co.,Ltd.

Technical characteristics

Features

Controlled by flexible shaft, hydraulic power shift gearbox with 2 forward and 2 reverse se gears makes operate easy.
Single pump, split flow working hydraulic system makes lower consumption and excellent performance.
Double sealed hydraulic pipeline joints with 24°awl and O ring of international standard, avoiding oil leakage
Load sensing fully hydraulic steering system, easy and flexible operation
Air over hydraulic brake system; Caliper disc brakes
Working device with automatically leveling ability at high position
Bucket articulated points take sealed, lubricated, dust-proof layers, which owns good durability
Integral, luxury instrument board.
New, luxury cabin

Performance Parameter

Performance	Rated load	3000kg
	Overall weight	10600kg
	Rated capacity	1.8m3
	Max. Tractive force	90KN
	Max. Breakout force	≥103KN
	Max. Grade ability	28°
	Max. Dumping height	3000mm
	Max. Dumping reach	1050mm
	Overall dimension L x W x H	7020x2510x3300mm
	Min. Turning radius	5755mm
Engine	Model	Weichai Deutz WP6G125E23
	Type	Inline/Turbocharged
	No. Of cylinder-bore/stoke	6- 105x130mm
	Rated power	92kW-2300r/min
	Max. torque	499N.m
	Min. Fuel-consume ratio	≤226g/kw.h
Transmission	Model	Hangchi BS428 Gearbox
	Gear shift	4 forward, 2reverse.
	Max. speed	36km/h
Drive axle	Main reducing spiral	Bevel gear grade 1 reduction
	Decelerating mode	Planetary reduction, grade 1
	Wheel base	2845mm
	Wheel tread	1800mm
	Min. ground clearance	375mm
Hydraulic system	System working pressure	17MPa
	Boom lifting time	5.5+0.2s
	Total time	9.8+0.5s
	Fuel tank capacity	150L
	Hydraulic tank capacity	150L
Break system	Service brake	Air over hydraulic disc brake on 4 wheels
Break system	Parking brake	Mechanical control band brake
Tyre	Type	17.5-25
	Front tyre pressure	0.34Mpa
	Rear tyre pressure	0.29Mpa
