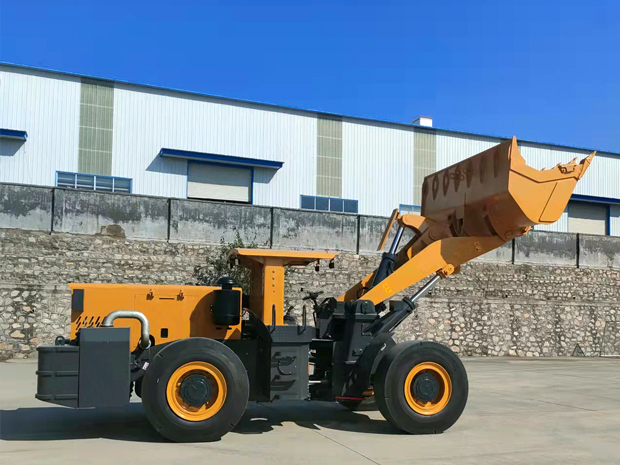

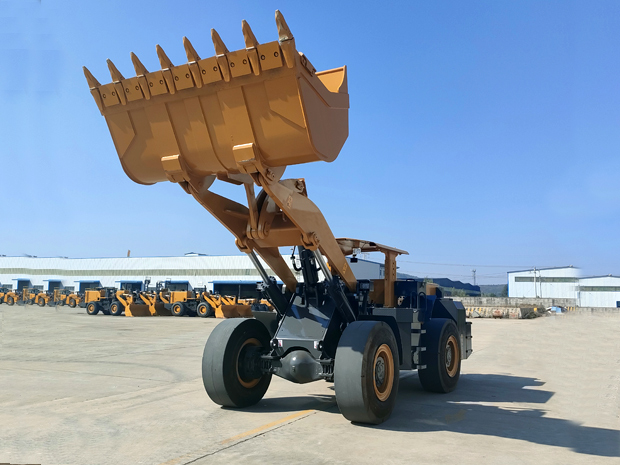

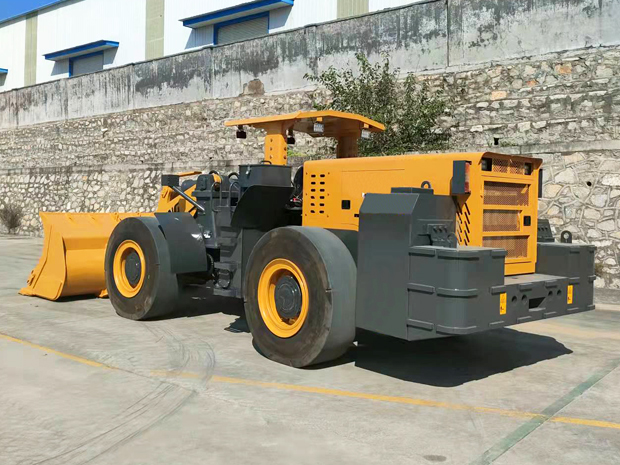

MC965 Wheel Loader-Tianjin Match Machinery Co.,Ltd.

Technical characteristics

1.‌ Powerful Performance‌

Equipped with a high-efficiency engine, delivering strong power and torque for heavy-duty operations.
Optimized transmission system ensures smooth acceleration and fuel efficiency.

2.‌ Robust Structure‌

Reinforced frame and heavy-duty axles enhance durability in tough working conditions.
High-strength steel bucket with wear-resistant edges for extended service life.

3.‌ Excellent Maneuverability‌

4.‌ Advanced Hydraulic System‌

High-capacity hydraulic pump provides fast and powerful bucket lifting & tilting.
Intelligent load-sensing system adjusts hydraulic flow for optimal efficiency.

Performance Parameter

Wheel loader general specification	MC965
rated load(kg)	6000
bucket capacity(m3)	3.3
lifting time(s)	≤7
lifting,tiping,and down time(s)	11
max. pulling force(kN)	168
max. break force(kN)	168
max.climbing grade(°)	22
centrol of tyres(mm)	6145
out side of bucket(mm)	7185
length(mm)	8160
width(mm)	2800
height(mm)	2460
wheel base(mm)	3230
wheel track(mm)	2205
Min.distance to the ground(mm)	3100
dumping height(mm)	2890
dumping distance at the highest position(mm)	1230
front speed range(km/h)	0-34
rear speed range(km/h)	0-12.5
operation weight(kg)	19200
Engine information
Manufacture/brand	Weichai
model	WP10G220E343
cylinder number	6
rated power(kW)	162
Max torque/speed(N·m/r/min)	960/1300-1500
Transmission system information
torque convertor model	ZL50D-039
type	Mechanically operated planetary power shift
gear shifting	F2/R1
axle model	C216BRF/C216BSF
tyres model	17.5-25-20PR Plan surface/20.5-25-20PR Plan surface
Working control system information
working control type	Joysticks
Oil information
fuel tank volume(L)	280L
hydraulic oil volume(L)	280L
radiator liquid volume(L)	55L
engine oil volume(L)	20L
transmission oil volume(L)	45L

MC965 Wheel Loader
