MC959 Wheel Loader-Tianjin Match Machinery Co.,Ltd.

Technical characteristics

Electro-hydraulic control, 4 forward and 3 reverse.
Single lever joystick control system makes operation easy and comfortable.
Strengthened axles own large bearing capacities and high reliability.
Twin pump merging hydraulic system makes lower consumption and excellent performance.
The coaxes flow-amplified, hydraulic compensated steering makes operation easy and performance reliable.
Both travel system and working hydraulic system are forced-cooled, improving the efficiency obviously.
Air over hydraulic brake system; Eight caliper disc brakes.
Air break control, expand hoof type parking brake and emergency brake.
Large space articulated chassis makes operation and traveling stable.
Working device with automatically leveling ability at high position.
Main articulated points take sealed, lubricated, dust-proof layers, which owns good durability.
Integral, luxury instrument board.
New, luxury cabin.
CE Approved. *Obtained the certificate of ISO9001: 2000; *Manufacturing license number: TS2510025-2009.

Performance Parameter

Item	Specification	Item	Specifications
Bucket capacity	3 m³	Min. turning radius (outside of rear wheels)	6630mm
Rated load	5000 kg	steering angle	38º
Dumping height	3100 mm	Min. ground clearance	500mm
Dumping reach	1280 mm	Wheel base	3200mm
Boom lifting time	6 S	Tread	2250mm
Total cycling time	12 S	Engine model	C6121ZG50
Max. speed	38 km/h	Rated power	162kW/2200rpm
Max. breakout Force	180 KN	Tyre	23.5-25
Max.drawing force	152 KN	Overall dimensions	796030703400mm
Max. Gradeability	30°	Operating weight	17000kg

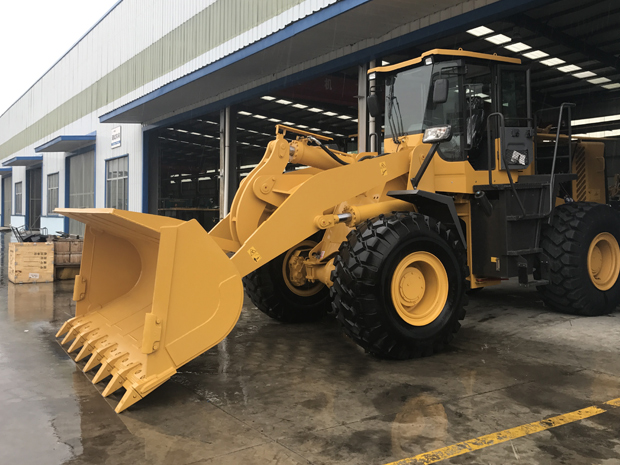

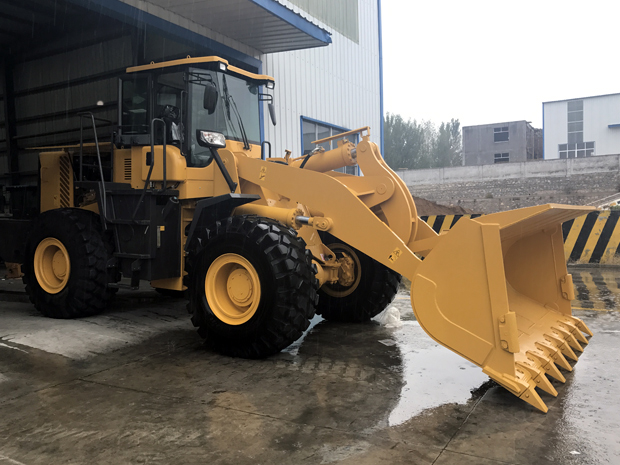

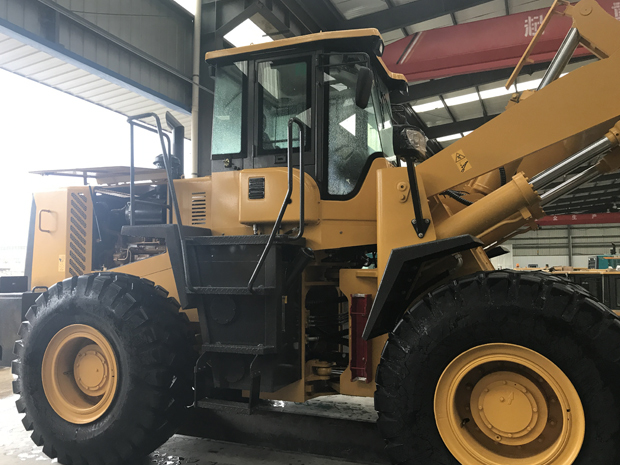

MC959 Wheel Loader
