RATED POWER: 175kw 1800rpm
OPERATING WEIGHT: 23450 kg
ENGINE MODEL: Weichai WP12G240E306
Key Specifications & Highlights
Low Working Hours:
Operates with 1,200–6,500 certified working hours (equivalent to 50-60% remaining lifespan), ensuring extended productivity with minimal downtime.
Hydraulic systems and engine performance tested under heavy-load conditions for reliability.
Production Date:
Manufactured in 2013-2022, featuring modern engineering standards and compliance with Tier 4 emission
Shantui’s self-developed chassis system is built to be durable. Shantui’s self-developed drive system has been extensively proven in the market, exhibiting commendable durability. When combined with the dedicated engine, it delivers substantial traction;
The openable side guard offers a spacious area and the reasonable layout of filter elements and hydraulic components facilitate convenient maintenance. The hexahedral cab is designed with ergonomic considerations and provides a spacious interior and wide field of view;

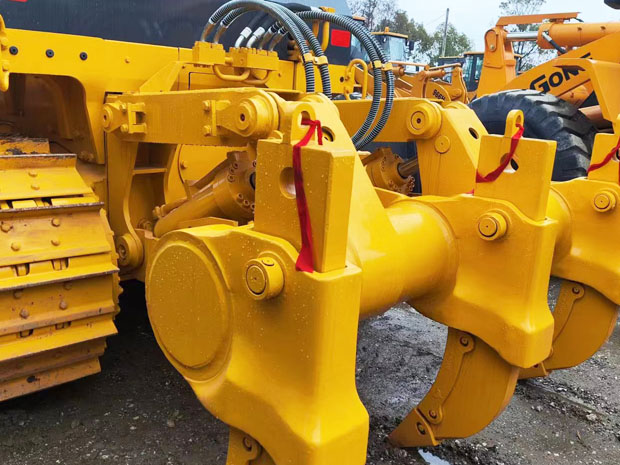

The machine is equipped with a straight tilt blade for enhanced cutting force. It offers the option of incorporating a three-tooth ripper to showcase its remarkable adaptability to diverse challenging conditions such as clay, hardened frozen soil, and more.
|
Parameter |
SD22 |
|
Overall weight(kg) |
23450 |
|
Engine brand |
Cummins NT855-C280S10/Weichai WP12G240E306 |
|
Rated power/rated speed(kW/rpm) |
175/1800 |
|
Machine external dimensions(mm) |
6060*4200*3402 |
|
Track center distance(mm) |
2000 |
|
Track shoe width(mm) |
560/610/660 |
|
Ground contact length(mm) |
2430 |
|
Fuel tank capacity(L) |
450 |
|
Blade type |
Straight tilting blade , Angle Blade, U-shaped Blade and Semi-U blade |
|
Blade capacity(m³) |
4.6 |
|
Emissions (Indicated as per international standards) |
Eu stageⅡ |
