Machine weight: 11000kg
Rated displacement: 4.1L
Power Output: 74.2KW/2200r/min

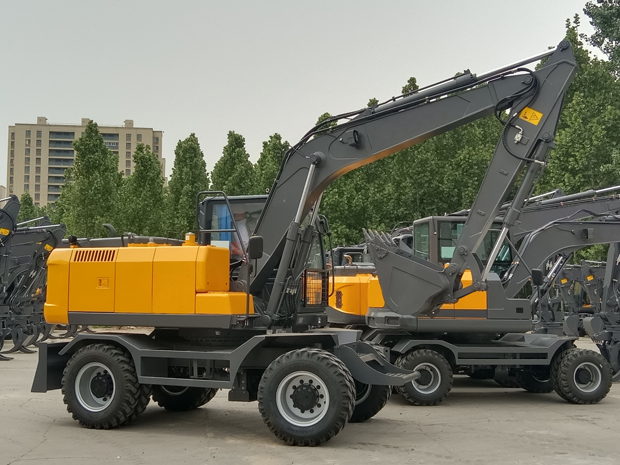

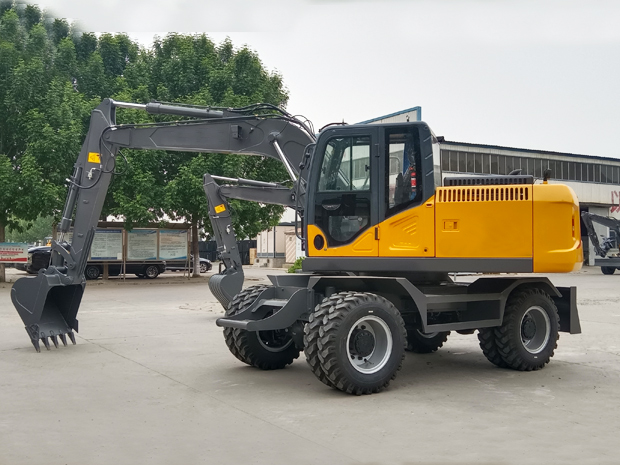

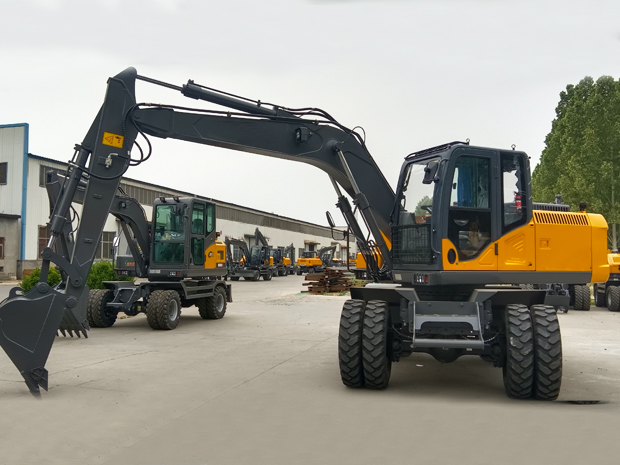

The MC135W, a new, flexible, efficient, and versatile municipal wheel excavator, debuts with balanced performance. Its flexible mobility, powerful power, smooth operation, powerful crushing, and wide range of applications make it an ideal choice for various urban construction projects. This wheeled excavator is equipped with the WP4.1G100E311 four-cylinder, water-cooled, electronically fueled, and supercharged engine with a rated displacement of 4.1L. This typical low-speed engine is primarily focused on fuel economy. The imported Rexroth travel system fully emphasizes the stability of the hydraulic travel equipment.
Main configuration:
Weichai engine, main pump and main valve are well-known domestic brands, 13-ton bridge, equipped with bulldozer, crushing pipeline and heating and cooling air conditioner.
|
OVERALL DIMENSIONS |
|||
|
A |
Total length |
7300mm |
|
|
B |
Total height |
2960mm |
|
|
C |
Overall width |
2300mm |
|
|
D |
Cab end |
2960mm |
|
|
E |
Wheelbase |
1780mm |
|
|
F |
Wheelbase |
2600mm |
|
|
G |
Boom length |
4100mm |
|
|
H |
Arm length |
2200mm |
|
|
Scope of work |
|||
|
A |
Maximum digging depth |
4400mm |
|
|
B |
Maximum unloading height |
5950mm |
|
|
C |
Maximum unloading depth |
3400mm |
|
|
D |
Maximum digging height |
7900mm |
|
|
E |
Maximum digging radius |
7700mm |
|
|
F |
Maximum surface excavation radius |
7440mm |
|
|
G |
Minimum turning radius |
4200mm |
|
|
H |
Tail turning radius |
2150mm |
|
|
I |
Arm digging force |
40KN |
|
|
J |
Bucket digging force |
60KN |
|
|
Technical Parameters |
|||
|
Machine weight |
11t |
||
|
Bucket Capacity |
0.5m³ |
||
|
Engine Model |
WP4.1G100E311 |
||
|
Type |
Four-cylinder water-cooled electronic injection |
||
|
Rated displacement |
4.1L |
||
|
Power Output |
74.2kw |
||
|
Walking speed |
30km/h |
||
|
Gradeability |
2 0 ° |
||
|
Tire model |
9.00-20 |
||
|
Tire quantity |
8 |
||
|
Minimum ground clearance |
320mm |
||
|
Main pump type |
Electronically controlled plunger pump |
||
|
Maximum flow |
246 L/min |
||
|
Rotation speed |
10.5 r/min |
||
|
Fuel tank capacity |
210L |
||
|
Hydraulic oil tank capacity |
160L |
||
