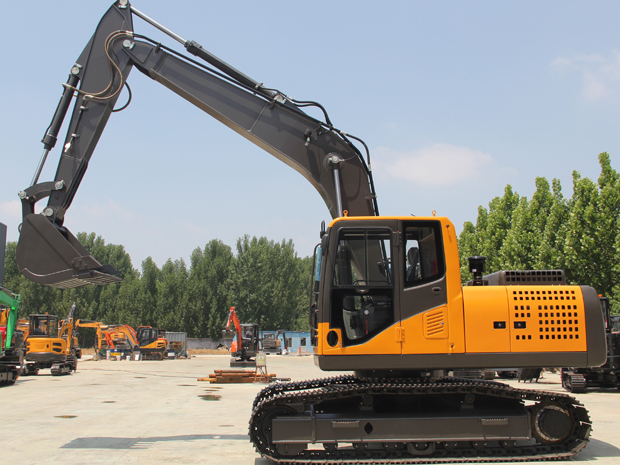

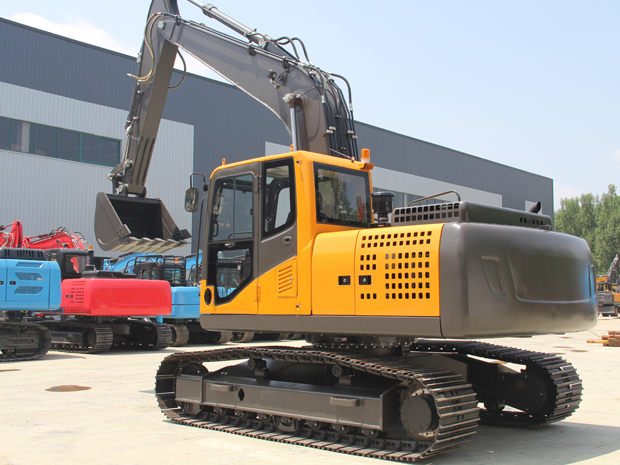

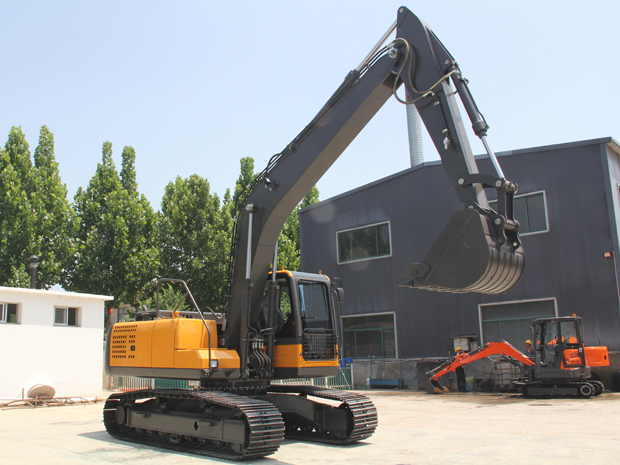

MC180 Crawler Excavator

Swing Speed: 0-12RMP

Bucket capacity : 0.8m³

Engine power: 93KW/2200RMP

Get a quote for free Product manual download

Technical characteristicsPerformance ParameterRelated ProductsContact Us

Technical characteristics

Features

MC180 crawler excavator is a china famous brand JIAHE, which researched and developed with world latest technical standard. it is a new kind of product characterized by high efficiency , safety, convenience, beauty. steel track, with dozer blade. hydraulic pilot servo handle controlling system ,easy to operation .Adopted the YUCHAI or CUMMINS  brand engine with strong power. imported international brand hydraulic system , ensure the machine has high working efficiency. the professional structure parts and working mechanism , ensure the machine has reliability and durability. the breaking pipeline improve the working performance.

Performance Parameter
Description  Unit-Metric Unit-US
Overall length 8540mm 336.2in
Overall width 2720mm 107.1in
Overall height 2920mm 115in
Cabin height 2920mm 115in
Track length on ground 3200mm 126in
Track gauge 2120mm 83.5in
Min.ground clearance 480mm 18.9in
Swing radius at tail 2430mm 95.7in
Max.digging height 9430mm 367in
Max.dumping height 6960mm 274in
Max.digging depth 5975mm 235.2in
Max.vertical digging depth 5630mm 221.7in
Max.digging radius 8985mm 353.7in
Min.swing radius 2725mm 107.3in



Bucket capacity 0.8m³
swing speed 0~12rpm
Max.gradeability 30°
Max.digging force of grab 98KN
Max.digging force of arm 68KN
Engine model/power YUCHAI YC4A140, 103kw/2200r/min
CUMMINS  QSF3.8,  93kw/2200rpm
Tack width 600mm
System pressure 32Mpa
