Operating Mass : 12000kg
Drum Diameter : 1400mm
Diesel Engine Power : 97/2200rpm

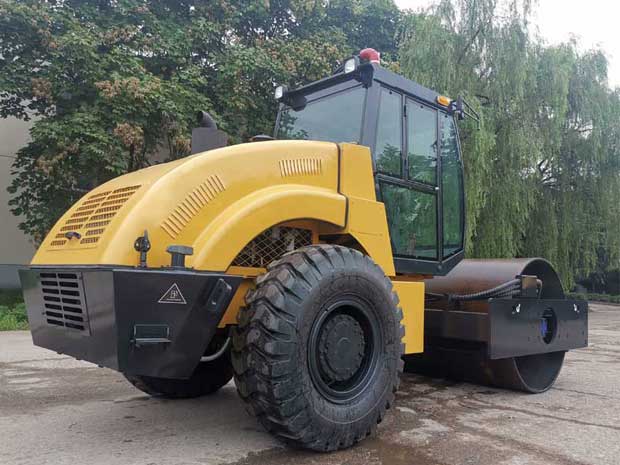

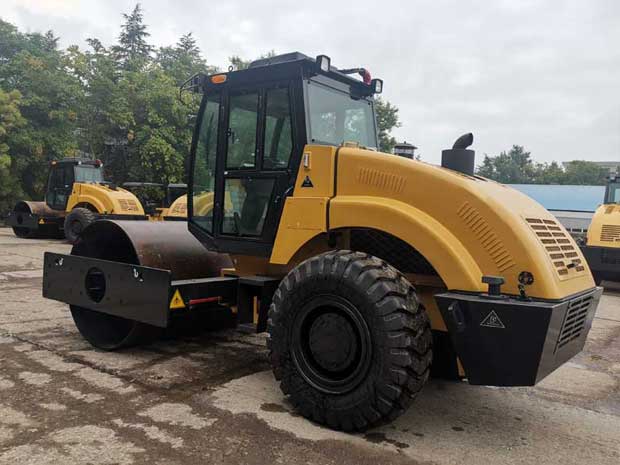

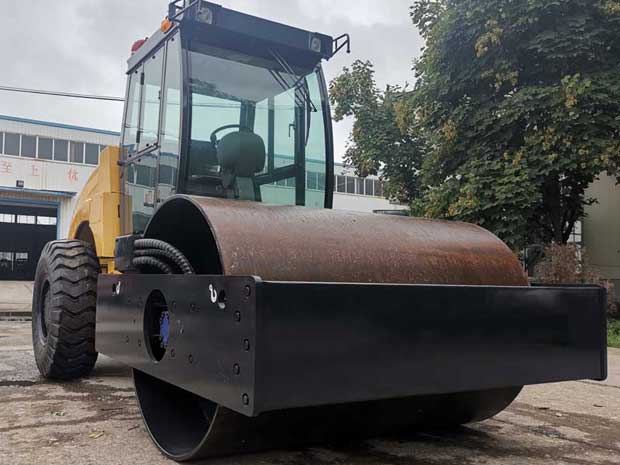

MC210B Heavy duty vibratory rollers effect powerful centrifugal force and great static linear load, They are suitable for non-cohesive materials, such as sandy soil,ravel,crushed stones, rock fillings and slightly cohesive soils, designed for large foundation constructions such as high-class highways, mines, dams, airports, harbors, railways and industrial areas etc.
Features
|
Model
|
MC210B
|
||
|
Operating mass
|
kg
|
12000
|
|
|
Statice linear load
|
N/cm
|
280
|
|
|
Vibration amplitude
|
mm
|
1.6/0.8
|
|
|
Centrifuel force
|
Kn
|
260/160
|
|
|
Vibration frequency
|
Hz
|
30
|
|
|
Travel apeed
|
Km/h
|
2.0,4.0,10.5
|
|
|
Steering angle
|
°
|
35
|
|
|
Electrial voltage
|
V
|
24
|
|
|
Vertical oascillation
|
°
|
8
|
|
|
Tire size
|
17.5-25
|
||
|
Grade ability
|
%
|
30
|
|
|
Turning radius
|
mm
|
7000
|
|
|
Overall dimension (LxWxH)
|
mm
|
5650x2280x3000
|
|
|
Vibration drum diameter
|
mm
|
1400
|
|
|
Drum width
|
mm
|
2100
|
|
|
Wheel base
|
mm
|
3060
|
|
|
Diesel egnine power
|
Kw
|
97/2200rpm
|
|
|
Diesel egnine model
|
CUMMINS6BT5.9
|
||
|
Fuel tank capacity
|
L
|
220
|
|
|
Hydraulic tank capacity
|
L
|
190
|
|
