Technical characteristics

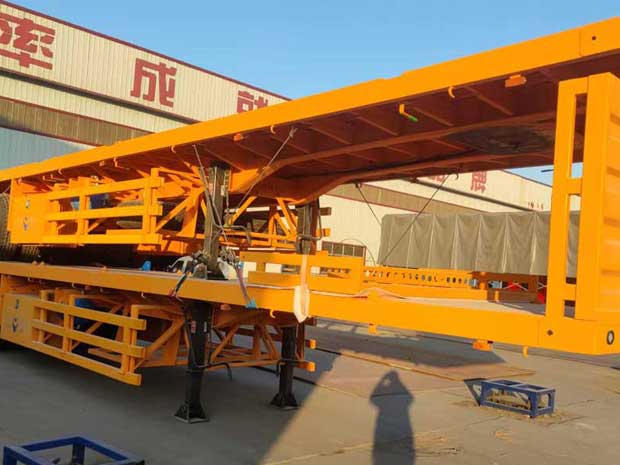

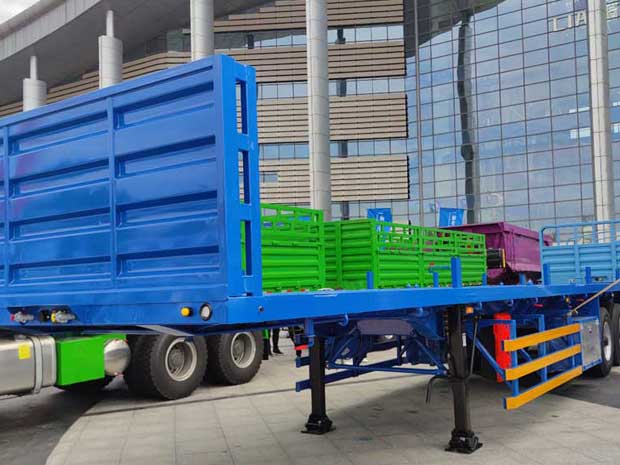

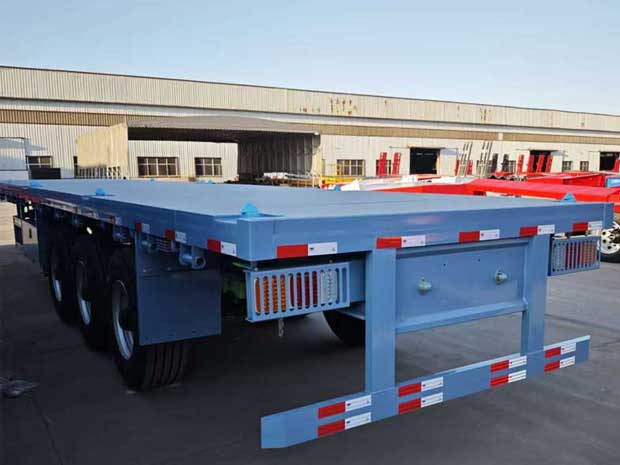

This container transport flatbed semi-trailer is a dedicated heavy-duty logistics vehicle specially designed for intermodal container transportation. Equipped with 8 to 12 ISO standard adjustable twist locks, it can firmly lock 20ft, 40ft and 45ft standard shipping containers, and also supports parallel transportation of two 20ft containers. The full flat deck structure allows it to carry non-containerized bulk cargo, construction machinery and other oversized goods at the same time, which is widely used in port transshipment, long-distance trunk logistics, highway-railway combined transportation and other scenarios. The frame adopts high-strength reinforced steel structure, with a rated load capacity of 40-60 tons, which can maintain stable operation under harsh working conditions and effectively reduce cargo damage rate.

Features

1. Full Compatibility Design‌

Standardly equipped with 8-12 adjustable ISO twist locks, which can seamlessly adapt to various standard containers, and the flat deck can also carry loose cargo, construction materials and special equipment, realizing "one trailer for multiple uses" and greatly improving vehicle utilization.
‌

2. Super Load-bearing Performance‌

The frame is made of high-tensile steel with reinforced cross members, which can withstand a total load of 40-60 tons. The optimized force distribution design effectively avoids frame deformation and greatly extends the service life.

‌3. High-level Safety Configuration‌

Equipped with air brake system + ABS anti-lock device, heavy-duty radial tires with high load index, and DOT/CE compliant lighting and wiring systems, which can ensure reliable braking performance and driving visibility in long-distance heavy-load transportation.

4. Durable & Low Maintenance‌

The whole vehicle adopts corrosion-resistant spray coating process, and key components such as balance beams and twist locks are galvanized for anti-rust treatment, which can adapt to different climate environments and reduce long-term operation and maintenance costs.

‌5. High Operational Efficiency‌

The open full-flat platform supports multi-direction loading and unloading by cranes, forklifts and other equipment, which greatly shortens the loading and waiting time, and effectively improves the turnover efficiency of the logistics link.

Performance Parameter

Dimension(Outer)	1250025501600mm (1000mm)
Tare weight	7.5t
Loading Capacity	45t
Main beam	700L,I beam, 480mm height ; upper plate thickness is 14mm down
Main beam	plate is 16mm, middle plate is 8 mm
Side beam	160mm C type steel 5mm thickness
Bottom plate	2.5mm HIGH TENSION 700 steel plate2.5mm
Chassis
Axle and Suspension	3 pcs Factory brand 13tons axles
Wheel Tires and Rim	12R 22.518PR12pcs
ABS	WABCOABS
Leaf spring	6 units 13mm(thickness)90(width)10 layer
Pneumatic Braking System	1 pcs emergency valve,6pcs double spring brake chamber
King pin	Jost 90# bolt type90mm
Landing Gear	28 Tons landing gear
Twist Lock	12 sets
Painting and Color	Powder coating , Color can be customized.
Tool box	Factory type
Spare tire carrier	2
Light	LED
Shipping Item	Shipped By Bulk cargo ship .
