Maximum digging height: 8032MM
Bucket capacity: 0.6m³
Rated power/speed: 119Kw/2200rpm

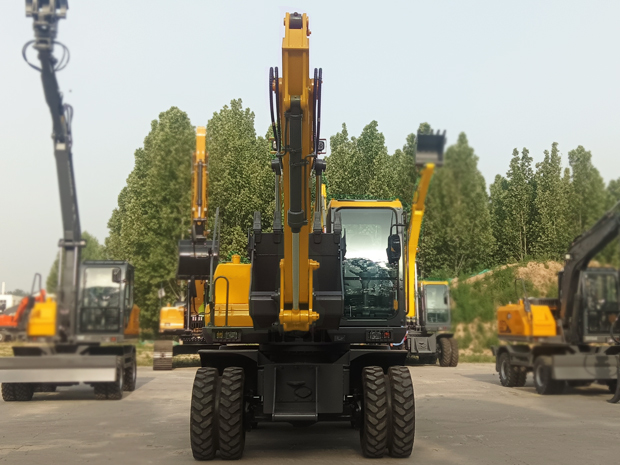

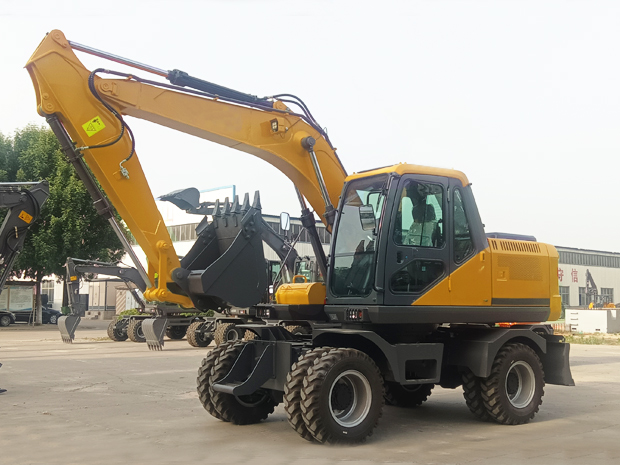

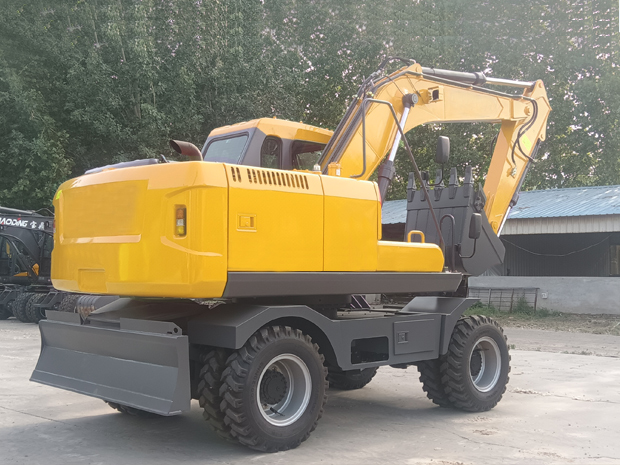

The MC150W high-efficiency wheeled excavator is a newly launched fully hydraulic tire excavator from the manufacturer Mai Chi. It utilizes a renowned engine to ensure a powerful and robust vehicle. Its imported hydraulic system and axle box are precisely matched, ensuring flexible switching between digging and travel modes. With its maneuverability and flexibility, the MC150W wheeled excavator is highly effective in urban operations, offering a wide operating range, long-term stability, and a high return on investment.
Main configuration :
Cummins engine, imported pump, Parker valve, imported travel motor, with bulldozer, crushing pipeline, vehicle weight 14.6 tons.
|
Model |
MC150W |
|
Maximum digging height |
8032mm |
|
Maximum unloading height |
5672mm |
|
Maximum digging depth |
4623mm |
|
Maximum vertical digging depth |
3894mm |
|
Maximum digging radius |
7539mm |
|
Maximum surface excavation radius |
7317mm |
|
Minimum turning radius of front end |
2588mm |
|
Minimum turning radius at rear end |
2200mm |
|
Overall dimensions (L x W x H) |
7250x2495x3125mm |
|
Cab height |
3220mm |
|
Wheelbase |
1902mm |
|
Wheelbase |
2770mm |
|
Bucket capacity |
0.6m³ |
|
Rotation speed |
14rpm |
|
Low gear travel speed |
10km/h |
|
High speed travel |
30km/h |
|
Gradeability |
30° |
|
Maximum digging force of bucket arm |
68.6KN |
|
Maximum bucket digging force |
94.1KN |
|
Work Quality |
14000kg |
|
System flow |
2-176L/min |
|
Rated power/speed |
Cummins 119Kw/2200rpm |
|
Minimum ground clearance |
362 (Bridge 320)mm |
|
Counterweight ground clearance |
1240mm |
|
boom |
4300mm |
|
Stick |
2100mm |
