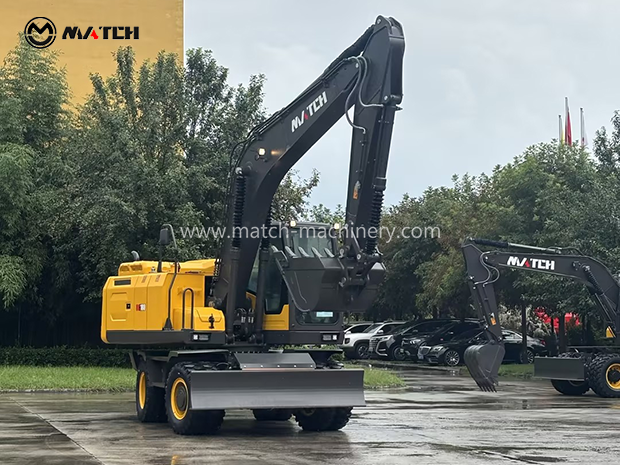

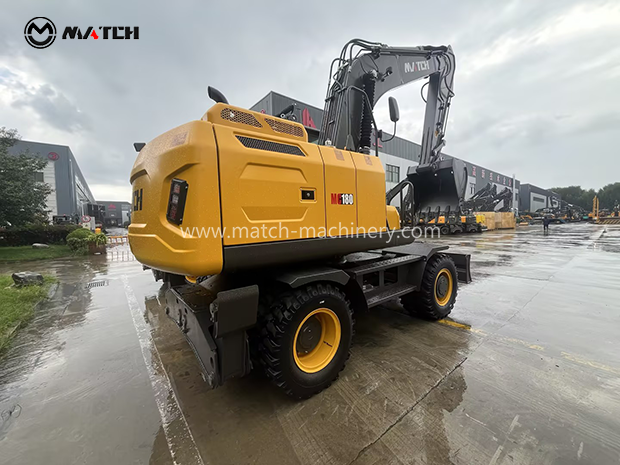

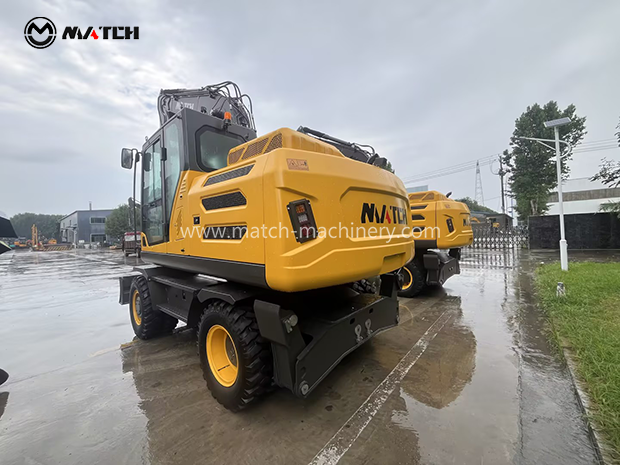

MC180 Wheeled Excavator

Swing Speed: 0–12Rmp

Bucket capacity : 0.8m³

Gradeability : 25°

Technical characteristics

Features

Accurate matching design and advanced energy saving control make the machine less fuel
consumption. Low emissionSuper strong configuration, excellent performance, import configuration.

Domestic famous brand engine, strong power, to meet the efficient operation requirementsAccurate matching design and advanced
energy saving control make the machine less fuel consumption. Low emission

The use of new cooling fans and large mufflers makes the noise of the machine lower

The advanced turbocharging technology is used to enhance the adaptability of the high altitude machine.

The unique funnel type fan cover greatly improves the engine's air intake and the ability of the system to heat the heat, so as to
ensure the continuous and efficient operation of the machine.

Advanced hydraulic system;

Performance Parameter
Item Specification
Model MC180
Machine Type Wheel Excavator
Operating Weight 16,500 kg
Bucket Capacity 0.8 m³
Engine Model Cummins B5.9CS4 / 6BTAA5.9*
Rated Power 110 kW / 2,200 rpm*
Hydraulic System Pressure 32 MPa
Maximum Bucket Digging Force 100 kN
Maximum Arm Digging Force 70 kN
Swing Speed 0–12 rpm
Maximum Gradeability 25°
Travel Speed 28 km/h
Tire Size 10.00-20
Fuel Tank Capacity 210 L*
Hydraulic Oil Tank Capacity 220 L*
