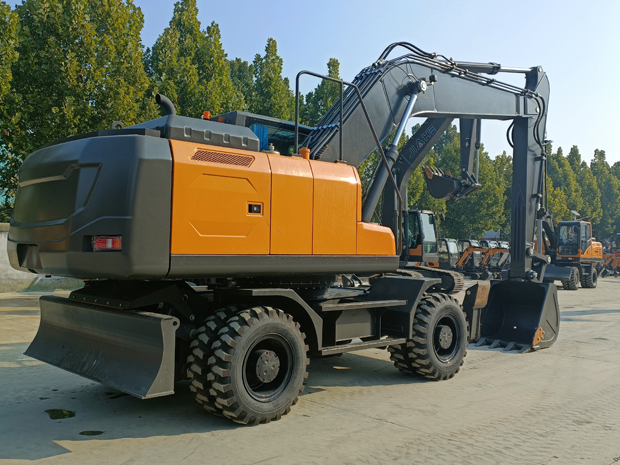

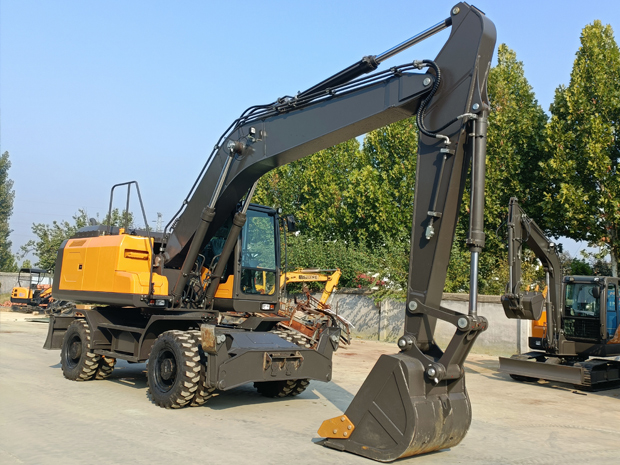

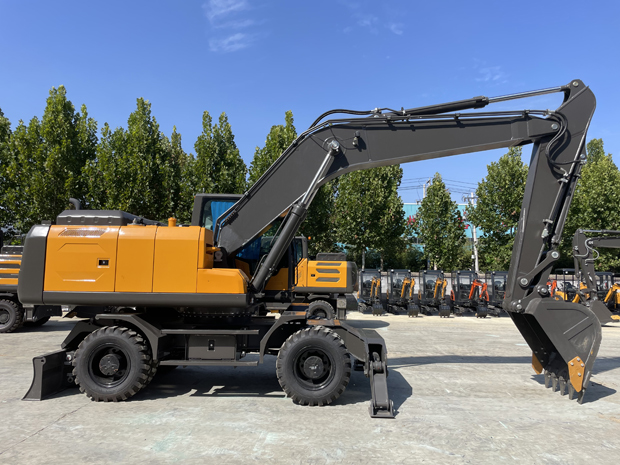

MC215L Wheeled Excavator

Swing Speed : 0-12rmp

Bucket Capacity : 1.1m³

Power/revolution speed : 153KW/2000rmp

Get a quote for free Product manual download

Technical characteristicsPerformance ParameterRelated ProductsContact Us

Technical characteristics
  1. MC215L wheel hydraulic excavator with super configuration excellent performance imported configuration domestic price
  2. Domestic famous brand engine, strong power, meet the requirements of efficient operation.
  3. Precise matching design and advanced energy saving control make the machine less fuel consumption.
  4. The use of new cooling fans and large silencers makes the machine less noisy;
  5. Adopt advanced turbocharging technology to enhance the plateau adaptability of the machine;
  6. Unique funnel mouth fan cover, greatly improve the engine air intake and system heat dissipation capacity, to ensure continuous and efficient operation of the machine.
Performance Parameter
Specifications
Bucket Capacity (m³)  1.1
Swing Speed(rmp) 0-12
Gradeablity(°) 25
Max.Bucket Digging Force(KN) 140
Max.Arm Digging Force(KN) 100
Engine Model 6BTAA5.9
Power/revolution speed(KW/rmp) 153/2000
Tire Model 10.00-20
System Pressure(MPa) 34
Machine size
Dimension Length*Width*Height(mm) 10006x2500x3515
Cabin Height(mm) 3216
Axle Base(mm) 2850
Wheel(track) Distance(mm) 1920
Minimum ground clearance(mm) 380
Tail Swing Radius(mm) 2412
Working range
Max.Digging Height (mm) 10329
Max.Dumping Height(mm) 7397
Max.Digging Depth(mm) 6052
Max.Vertical Digging Depth(mm) 5682
Max.Digging Radius(mm) 10283
Min.Swing Radius(mm) 3458
Max.Dozer Blade Lifting Distance(mm) 410
Max.Dozer Blade Cutting Distance(mm) 125
