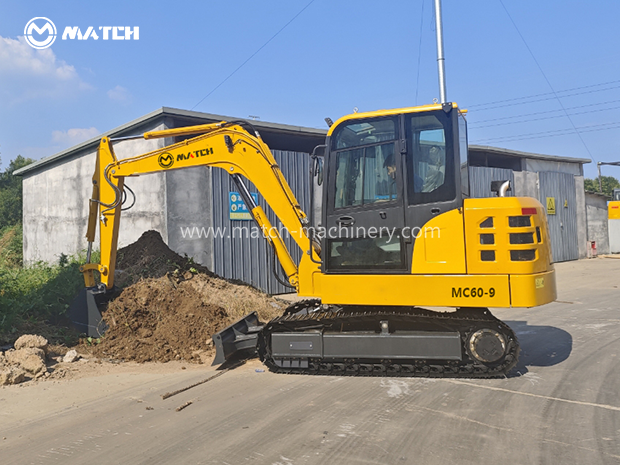

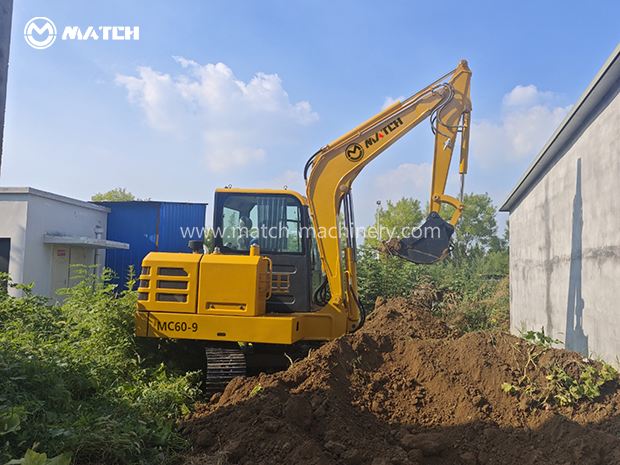

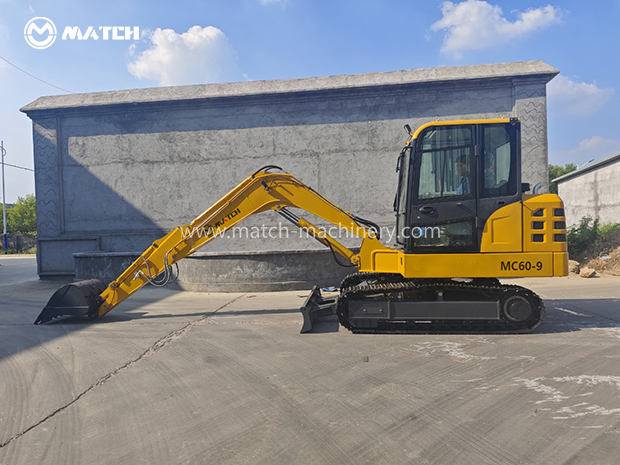

MC60-9 Crawler Excavator

Swing Speed: 10-11Rmp

Bucket capacity : 0.23m³

Engine power: 36.2KW/2100Rmp

Technical characteristics

Features

Accurate matching design and advanced energy saving control make the machine less fuel
consumption. Low emissionSuper strong configuration, excellent performance, import configuration.

Domestic famous brand engine, strong power, to meet the efficient operation requirementsAccurate matching design and advanced
energy saving control make the machine less fuel consumption. Low emission

The use of new cooling fans and large mufflers makes the noise of the machine lower

The advanced turbocharging technology is used to enhance the adaptability of the high altitude machine.

The unique funnel type fan cover greatly improves the engine's air intake and the ability of the system to heat the heat, so as to
ensure the continuous and efficient operation of the machine.

Advanced hydraulic system;

Performance Parameter
Operating weight 5800
Bucket capacity 0.23
Engine 4TNV94L
Rated power/speed (so)(kw/rpm) 36.2/2100
Maximum torque/speed(N.m) 193.2-210.6
Main perforance
)Travel speed (HL)(km/h) 3.8/2.2
 Swingspeed(r/min) 10.5
Gradeability(°) >35
Ground pressure(kpa) 35
Bucket digging force(kN) 48
Arm digging force(kN) 29
Maximum tractive force(kN) 56
