MC969 Wheel Loader-Tianjin Match Machinery Co.,Ltd.

Technical characteristics

Controlled by flexible shaft, hydraulic power shift gearbox with 2 forward and 2 reverse se gears makes operate easy.
Single pump, split flow working hydraulic system makes lower consumption and excellent performance.
Double sealed hydraulic pipeline joints with 24°awl and O ring of international standard, avoiding oil leakage
Load sensing fully hydraulic steering system, easy and flexible operation
Air over hydraulic brake system; Caliper disc brakes
Working device with automatically leveling ability at high position
Bucket articulated points take sealed, lubricated, dust-proof layers, which owns good durability
Integral, luxury instrument board.
New, luxury cabin

Performance Parameter

Performance	1	Rated load	6000kg
	2	Overall weight	19200kg
	3	Rated capacity	3.5m³
	4	Max. Tractive force	170KN
	5	Max. Breakout force	≥190KN
	6	Max. Grade ability	30°
	7	Max. Dumping height	3100mm
	8	Max. Dumping reach	1250mm
	9	Overall dimension L x W x H	8160x3070x3400mm
	10	Min. Turning radius	6630mm
Engine	11	Model	Shangchai CAT SC11CB240.1G2B1
	12	Type	Inline/Turbocharged/water colling
	13	No. Of cylinder-bore/stoke	6-121x152mm
	14	Rated power	175kw-2200r/min
	15	Max. torque	950N.m
	16	Min. Fuel-consume ratio	≤215g/kw.h
Transmission	17	Model	WG200 Gearbox
	18	Gear shift	4 forward, 3 reverse. Electronic control gear shift
	19	Max. speed	38km/h
Drive axle	20	Main reducing spiral	Bevel gear grade 1 reduction
	21	Decelerating mode	Planetary reduction, grade 1.
	22	Wheel base	3200mm
	23	Wheel tread	2250mm
	24	Min. ground clearance	510mm
Hydraulic system	25	System working pressure	18MPa
	26	Boom lifting time	6.0+0.2s
	27	Total time	12+0.5s
	28	Fuel tank capacity	300L
	29	Leveling automatically	Yes
Break system	30	Service brake	Air over hydraulic disc brake on 4 wheels
Break system	31	Parking brake	expand hoof type
Tyre	32	Type	26.5-25
	33	Front tyre pressure	0.4Mpa
	34	Rear tyre pressure	0.35Mpa

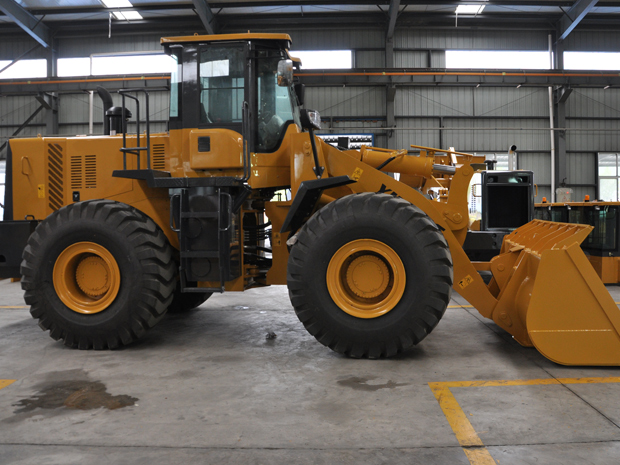

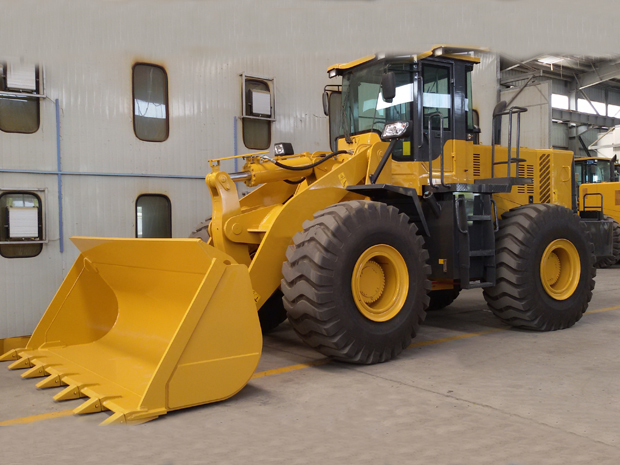

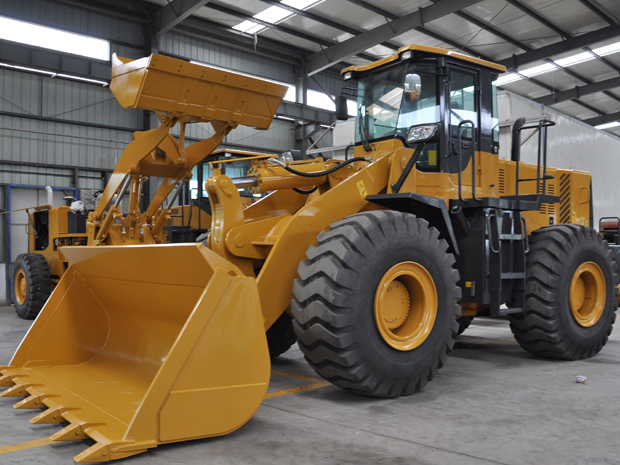

MC969 Wheel Loader
