MCR26D Photovoltaic Pile Driver-Tianjin Match Machinery Co.,Ltd.

Technical characteristics

Hiah quality plastic diesel tankavoid the block of fuel circuit by iron slag.
Vacuum assistant brake svstemDouble brake with disc brakeand drum brake,High safety factor(High configuration can be equipped with air brake).
Intensive lifting guide railwith inlaid nyion material,slide smooth .adjustable gap,extending using life.
Alloy inlaid strop in the slid guide railmake using life longer.
Equipped with high strength engine cover.
Hydraulic power ,easy to driver.
Folded hydraulic hammer,convenient for transportation.
High frequency hydraulic hammelwith borer pole diameter 85mm.
lmpact power up to 1400 Joules.

Performance Parameter

Engine power(KW)	33KW Standard configuration	39KW Standard configuration
Shape size (L'W*H)(mm)	2900x2650x4200
Shape size (L"W"H)(mm)	2900x2250x2550
Wheelbase(mm)	1950
Vehicle weight(kg)	2800	2800
Flow rate of hydraulic system(L/min)	72	90
Hydraulic system pressure(Mpa)	20	20
Mast stroke(mm)	<2300
Piling height(mm)	3000
Hydraulic hammer type	YC260(75mm )、YC360(85mm )
Piling effciency(mm/min)	≤2500
Drilling depth(mm)	≤2000
Borehole diameter(mm)	50-300
Maximum climbing ability(°/%)	10°(17.696)	10°(17.6%6)
Maximum walking speed(km/h)	8	11
Maximum traction speed(km/h)	≤30
Turnaround mode	Hydraulic power steering
Brake mode	Front disc and rear drum vacuum-assisted braking system (standard) Air brake system (optional)
Minimum turning diameter(m)	≤8.5
Tire specifications	7.0-9
Left and right sliding stroke(mm)	≤400
Maximuminclination angle ofsliding guide fram(°)	left30/right8
Front and rear adjusting angle offrame(°)	left10/right8
Min. ground clearance(mm)	140
Effective capacity of hydraulic tank(L)	80
Effective capacity of diesel tank(L)	40

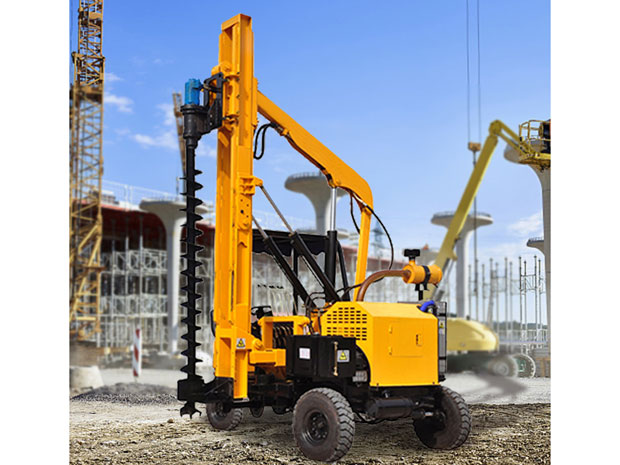

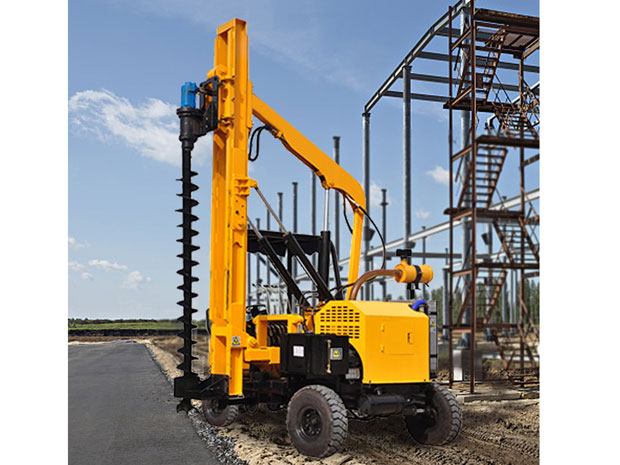

MCR26D Photovoltaic Pile Driver
