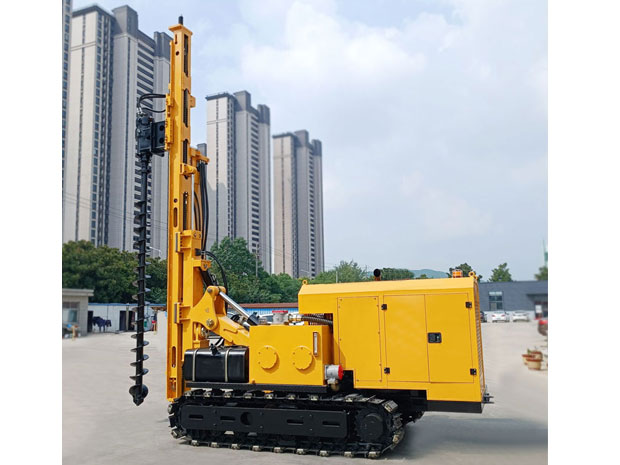

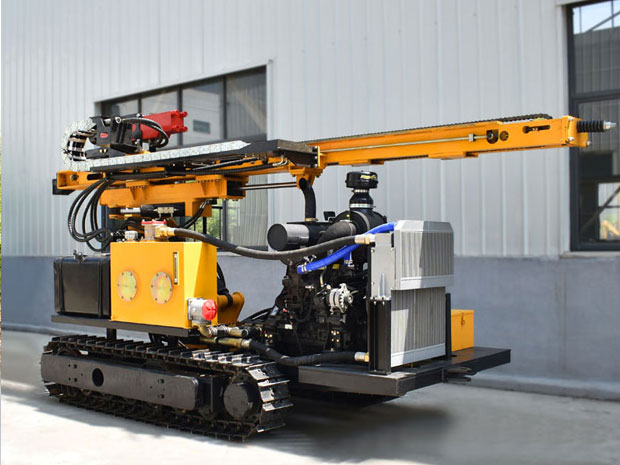

MCR7 Photovoltaic Pile Driver

Vehicle weight (kg) : 7500

Drilling depth (mm): 5500 (once)

Spiral drilling diameter (mm): 50-300

Technical characteristics
  • Pilling Height : Max 6 m;
  • Operation: The machine can be rotated 90°, which isflexible in operation and can be used in a variety of construc-tion sites. Pilot operating valve makes operation accurateand smooth;
  • Engine : The engine can be equipped with Cumminswhich are suitable for different countries' emission stan-dards;
  • Structure : Integral design of the lifting guide rail The struc-ture is robust, resulting in a longer lifespan5.Operation : Pilotoperating valve makes operation accurate and smooth;
Performance Parameter
Working Dimension (L*W*H) (mm) 3600*3400*6700
Shipping status Dimension (L*W*H) (mm) 6200*2100*2300
Vehicle weight (kg) 7500
Engine power (Cummins) (kW) 97
The maximum torque ofthe walking motor (N.m) 5600
The impact drill has the maximum torque of the rotating motor (N.m) 1500~2500
The rotary pile drill has the maximum torque ofthe rotating motor (N.m) 3100~8000
The auger has the maximum rotating torque (N.m) 3100~8000
Maximum piling height (mm) 6000
Piling stroke (mm) 5500 (once)
Impact drilling depth (mm) 5500 (once)
Impact drill diameter (mm) 50~300
Spiral drilling diameter (mm) 90~300
Spiral drilling depth (mm) 5000
The angle ofsupine adjustmentofthe mast (°) 10 up and 90 Down
The front and rear adjustment angle ofthe mast(°) Front 20 Rear 20
Hydraulic system pressure (Mpa)  18~22
Hydraulic system flow (triple pump) (L/min) 160
Walking speed (km/h) >2.5
Hydraulic hammer model (standard) YC360
Hydraulic hammer impact energy (J) 1200-1800
Climbing slope (°) >30
