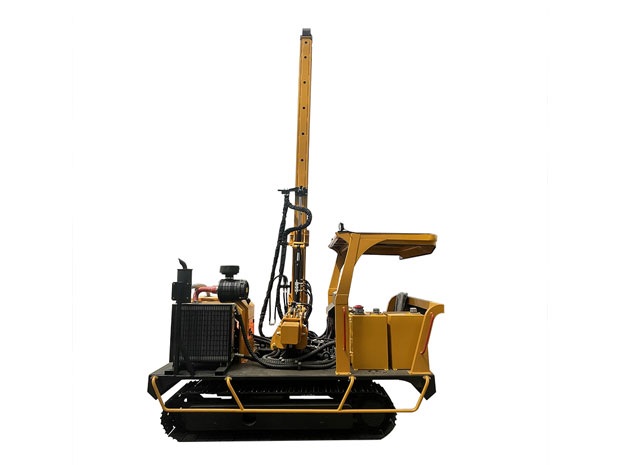

MCR5 Photovoltaic Pile Driver-Tianjin Match Machinery Co.,Ltd.

Technical characteristics

Pilling Height : standard 5m, max 6 meters;
Bore cap : Customized bore cap can be applied to a varietyof construction conditions;
Lifting : The guide rail is equipped with double chain lifting toensure more stable and safe construction;
Guide rail : The guide rail is perpendicular to the groundduring piling to ensure the verticality of the pile;
Function : The machine have 4 functions: ramming, DTH drilling, pre-cast drilling with auger and Screw;

Performance Parameter

Working Dimension (LWH) (mm)	350022005000
Shipping status Dimension (LWH) (mm)	650022002500
Vehicle weight (kg)	4500-5200
Engine power (kw)	70/97
Maximum torque ofwalking motor (Nm)	5700
The pile-spinning machine has themaximum torque ofthe rotating motor (Nm)	4000
The auger has the maximum torqueof the rotating motor (Nm)	4000
Maximum piling height (mm)	6000
Maximum height of rotary pile (mm)	3500
Drilling depth (mm)	3500
Pile depth (mm)	3500
Spiral drilling diameter (mm)	0-300
Drilling inclination (left/right)(°)	30/10
Drilling inclination (front/rear)(°)	70/30
Hydraulic system pressure (Mpa)	16
Total flow rate ofhydraulic system (l/min)	70
Rotating motor flow rate (l/min)	70
Walking speed (m/h)	0-3000
Steel track specifications (mm)	25501700530
Steel track width (mm)	350
Track ground clearance (mm)	230
Climbing ability(°)	30
Steel track transmission ratio	01:21.4
Working pressure difference ofsteel track (mpa)	13

MCR5 Photovoltaic Pile Driver
