MCR6 Photovoltaic Pile Driver-Tianjin Match Machinery Co.,Ltd.

Technical characteristics

Smart Control: The pile driver is equipped with one-button straighteningsystem and remote control.GPS system can be installed
Optional Engine: Engines can be equipped with Yanmar and Cummins,which are suitable for the emission standards of different countries.
Easy To Operate: The mobile operating console allows the operator to stand.The side operating console is safer,and only one person cancomplete the operation, saving costs.
Chassis Rotation: The pile driver can rotate 90°,is flexible in operation,and can be used in a variety of construction sites.

Performance Parameter

Working Dimension (LWH) (mm)	308527356000
Shipping status Dimension (LWH) (mm)	374021502550
Vehicle weight (kg)	6000
Engine (kw)	Cummins Engine 97 /53.7
Drilling depth (standard) (mm)	3500
Drilling diameter (impact drilling) (mm)	50-300max
Left and right sliding stroke (maximum value) (mm)	500
Front and rear sliding stroke (maximum value) (mm)	150
Chassis length (mm)	2500
Chassis height (mm)	620
Supine angle ofmovement mechanism(°)	8° outside and 60° inside
Front and rear inclination of the motion mechanism(°)	20°
Hammer impact energy (J)	1250(85)1450(100)
Maximum pile height (mm)	6000
Hydraulic system pressure (maximum value) (Mpa)	20
Total flow of hydraulic system (L/min)	90
Maximum travel speed (km/h)	2.5
Effective volume of hydraulic oil cabinet (L)	118
Effective capacity of diesel engine fuel tank(L)	118
One touch straightening system, remote control	Equipped
GPS system	Optional

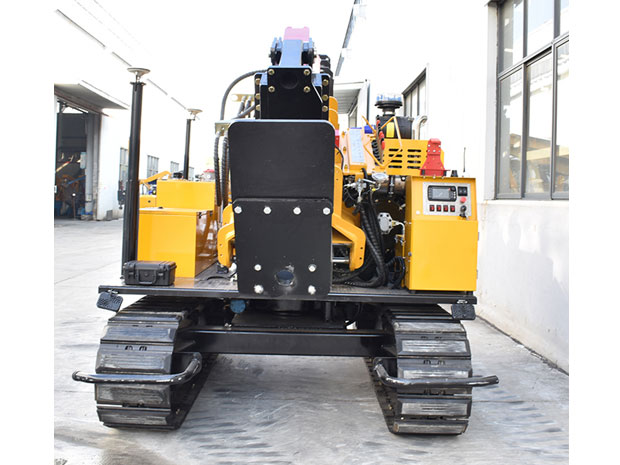

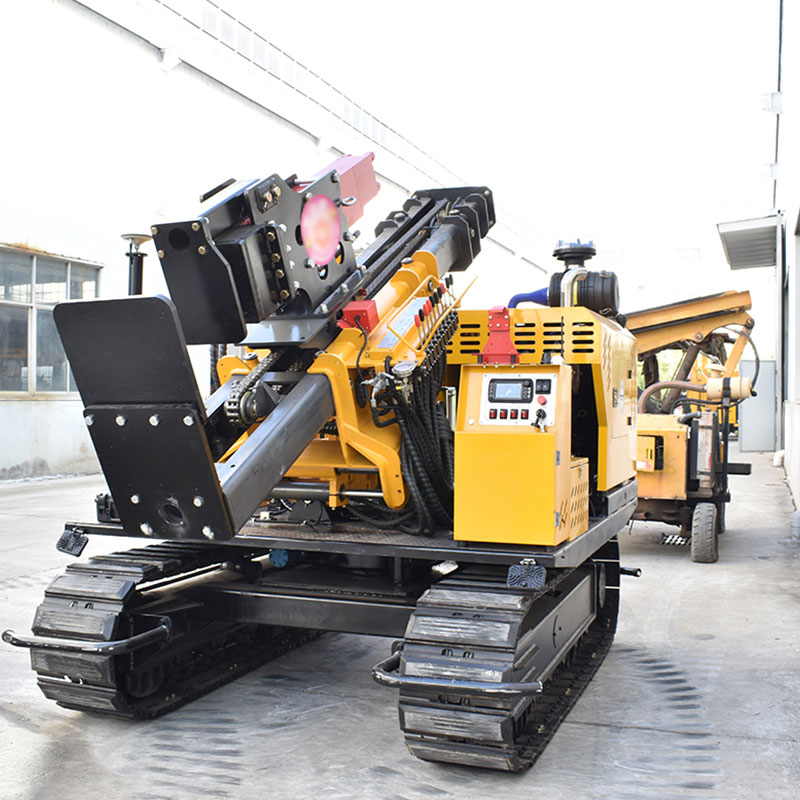

MCR6 Photovoltaic Pile Driver
