Bucket Capacity(m3): 0.12
Swing Speed(rmp): 1-11
Gradeablity(°): 30

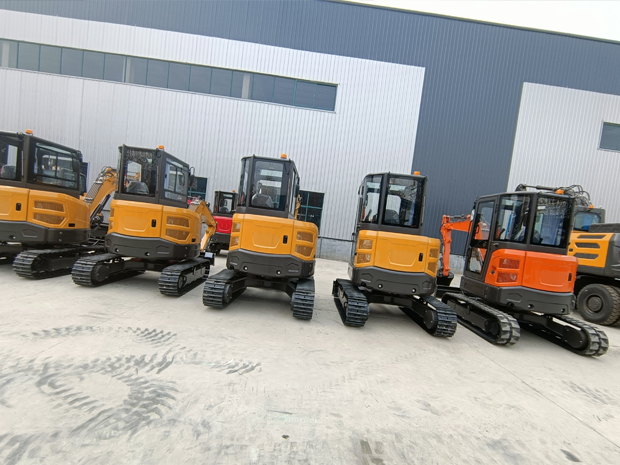

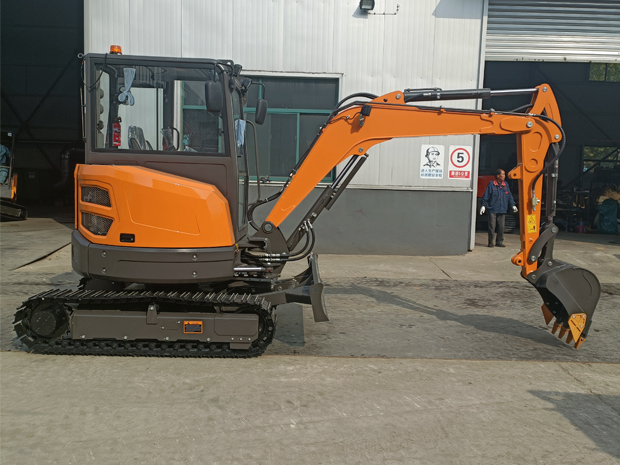

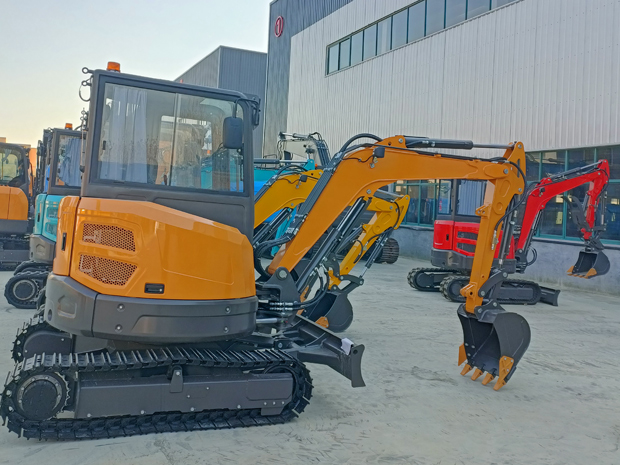

MC35 crawler excavator is a china famous brand MATCH, which researched and developed with world latest technical standard. it is a new kind of product characterized by high efficiency , safety, convenience, beauty. rubber track, the excavator adopted the KUBOTA engine with Euro 5 and EPA4 emission ,with dozer blade. the machine can deflection to left and right to meet the different digging direction . hydraulic pilot servo handle controlling system ,easy to operation , campact size meet the small working space.
| Specifications | |
| Bucket Capacity(m³) | 0.12 |
| Swing Speed(rmp) | 1-11 |
| Gradeablity(°) | 30 |
| Max.Bucket Digging Force | 30 |
| Max.Arm Digging Force(KN) | 18 |
| Engine Model | KUBOTAD1703 |
| Power/revolution speed(KW/rmp) | 18.2/2200 |
| Tire Model | — |
| System Pressure(MPa) | 22.5 |
| Working range | |
| Max.Digging Height(mm) | 4800 |
| Max.Dumping Height(mm) | 3406 |
| Max.Digging Depth(mm) | 3208 |
| Max.Vertical Digging Depth(mm) | 2957 |
| Max.Digging Radius(mm) | 5480 |
| Min.Swing Radius(mm) | 2530 |
| Max.Dozer Blade Lifting Distance(mm) | 365 |
| Max.Dozer Blade Cutting Distance(mm) | 385 |
| Machine size | |
| Total Length(mm) | 4915 |
| Total Width(mm) | 1720 |
| Total Height(mm) | 2525 |
| Cabin Height(mm) | 2290 |
| Axle Base(mm) | 1670 |
| Wheel(track) Distance(mm) | 1420 |
| Minimum ground clearance(mm) | 295 |
| Tail Swing Radius(mm) | 870 |
